External Controls - Component Location

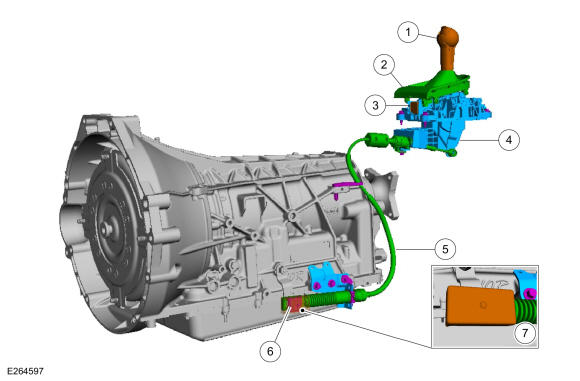

Transmission Selector Lever and Cable
| Item | Description |
|---|---|
| 1 | Transmission selector lever knob |
| 2 | Transmission selector lever bezel |
| 3 | Brake shift interlock actuator |
| 4 | Transmission selector lever assembly |
| 5 | Transmission selector lever cable |
| 6 | Transmission selector lever cable adjuster |
| 7 | Transmission selector lever cable adjuster heat shield |

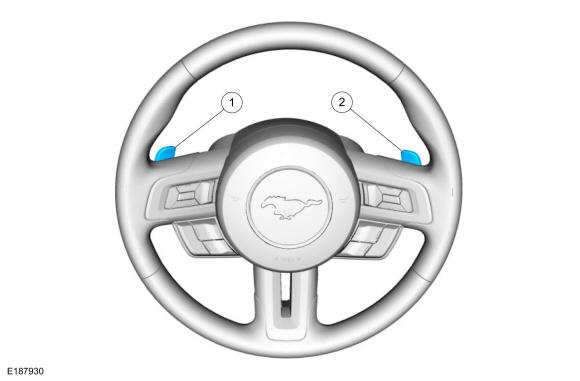

Transmission Paddle Switches
| Item | Description |
|---|---|
| 1 | Downshift paddle switch |
| 2 | Upshift paddle switch |
