Fuel Injection Pump: Notes
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Material
| Item | Specification |
| Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |
| Motorcraft® Thread Sealant with PTFETA-24-B | WSK-M2G350-A2 |

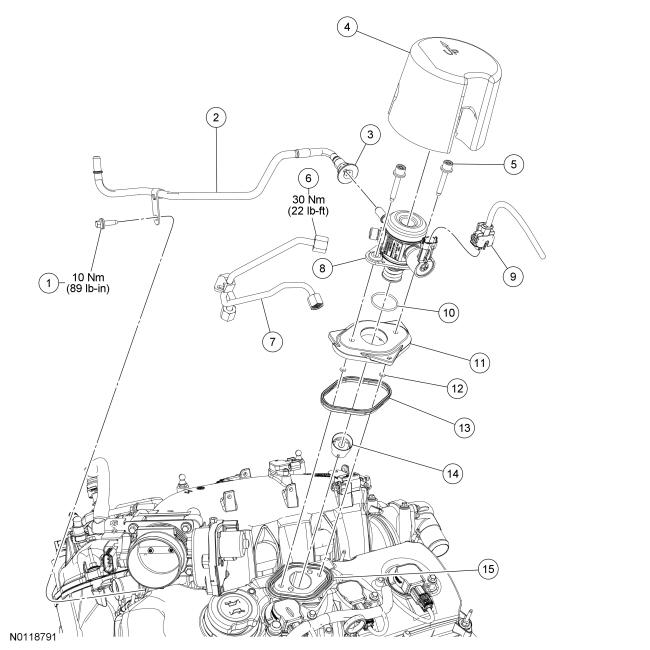

| Item | Part Number | Description |
|---|---|---|
| 1 | W503274 | Fuel jumper tube bolt |
| 2 | 9J280 | Fuel jumper tube |
| 3 | -- | Fuel jumper tube-to-fuel injection pump quick connect coupling (part of 9J280) |
| 4 | 6N041 | Fuel injection pump noise insulator shield |
| 5 | W714498 | Fuel injection pump bolt (2 required) |
| 6 | -- | High pressure fuel tube-to-fuel injection pump flare nut (part of 9J323) |
| 7 | 9J323 | High pressure fuel tube |
| 8 | 9350 | Fuel injection pump |
| 9 | 14A464 | Fuel injection pump electrical connector |
| 10 | 9E853 | Fuel injection pump O-ring seal (part of 9350) |
| 11 | 9178 | Fuel injection pump mounting plate (part of 9178) |
| 12 | 9374 | Fuel injection pump mounting plate O-ring seal (2 required) (part of 9178) |
| 13 | 9417 | Fuel injection pump mounting plate seal |
| 14 | 9C587 | Fuel injection pump tappet |
| 15 | -- | Fuel injection pump mounting pedestal (part of 6049) |
