 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- Install the steering column shrouds. Refer to Steering Column
.
 Courtesy of FORD MOTOR COMPANY
|
-

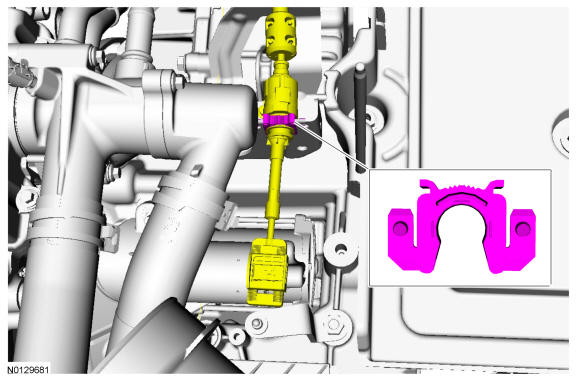

NOTE:
To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
NOTE:
When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever cable bracket.
 Courtesy of FORD MOTOR COMPANY
|

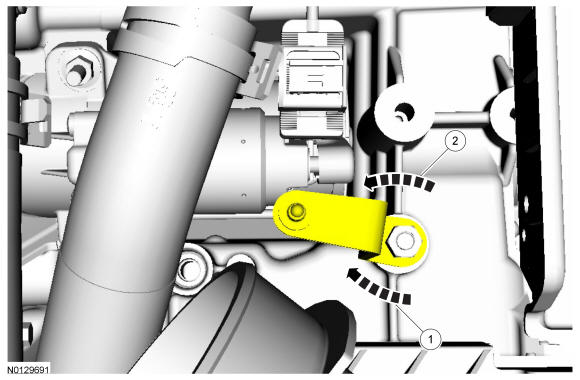

- Place the selector lever in DRIVE.
-
- Rotate the manual control lever clockwise until it stops.
- Rotate the manual control lever counterclockwise one detent.
 Courtesy of FORD MOTOR COMPANY
|
-

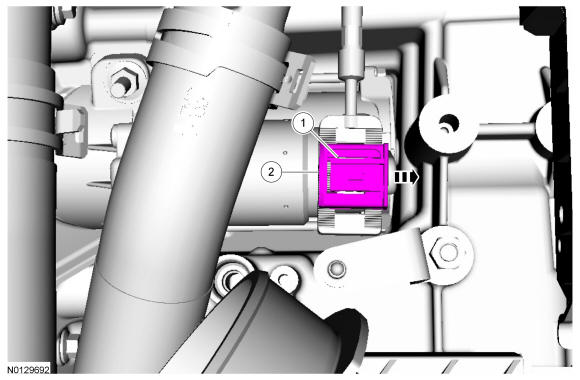

- Gently pry the latch up.
- Push the lock tab to slide it over.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
-

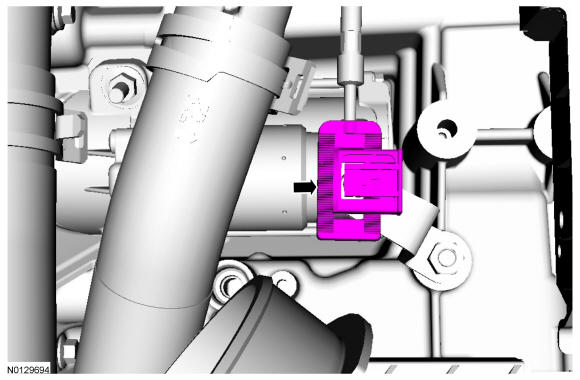

NOTE:
To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
NOTE:
Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.
 Courtesy of FORD MOTOR COMPANY
|
-

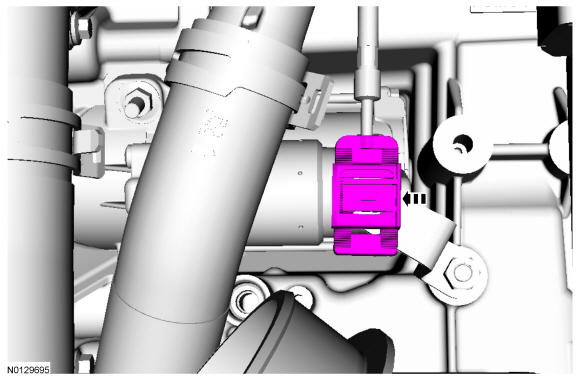

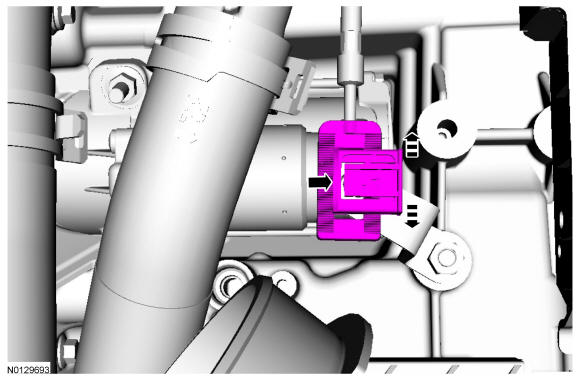

NOTE:
After locking the adjuster, pull back on the adjuster to make sure it is securely installed.
 Courtesy of FORD MOTOR COMPANY
|
- Install the ACL and outlet pipe. Refer to Intake Air Distribution and Filtering
- Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
