Component Testing

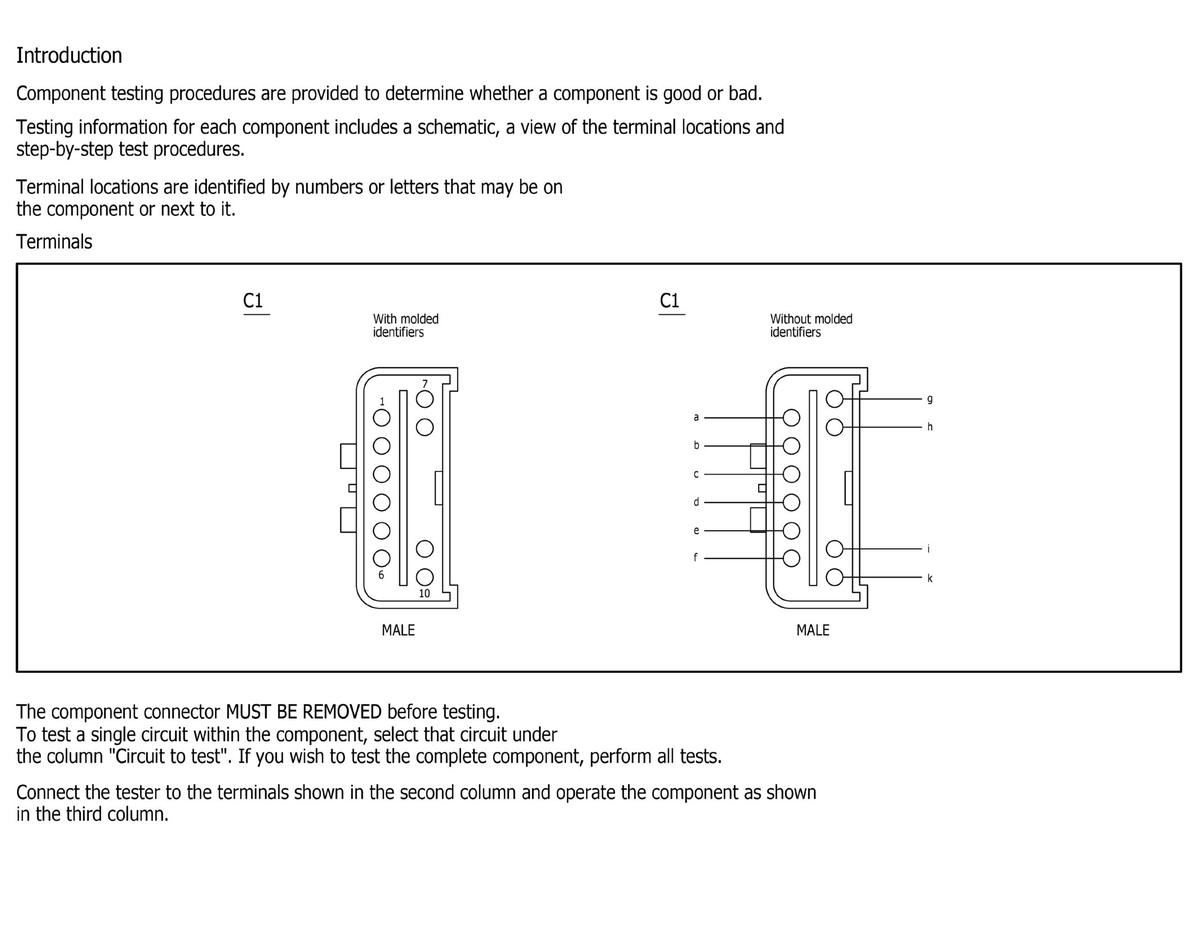

Fig 1: Component Testing Introduction
GFDWR19893Courtesy of FORD MOTOR COMPANY

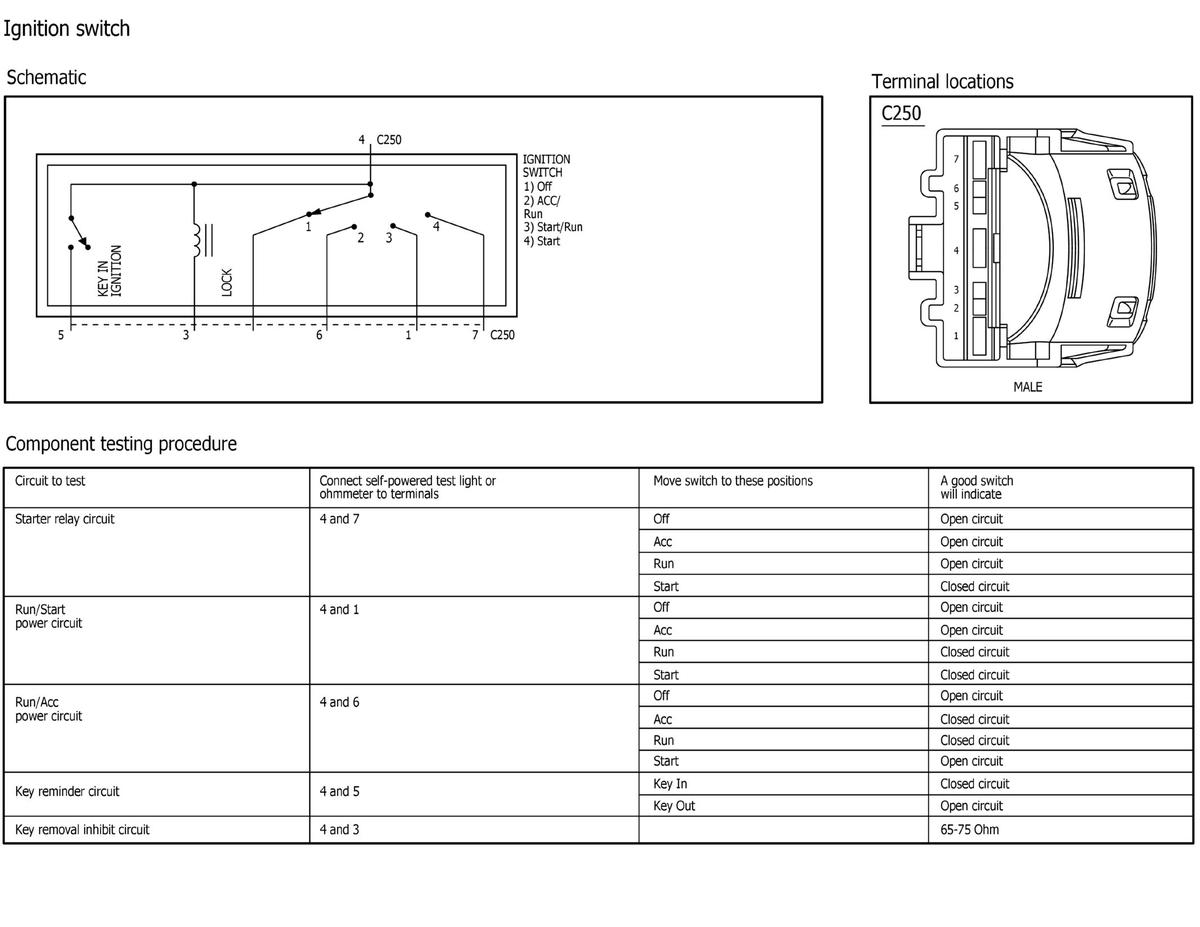

Fig 2: Ignition Switch Component Testing
GFDWR19883Courtesy of FORD MOTOR COMPANY

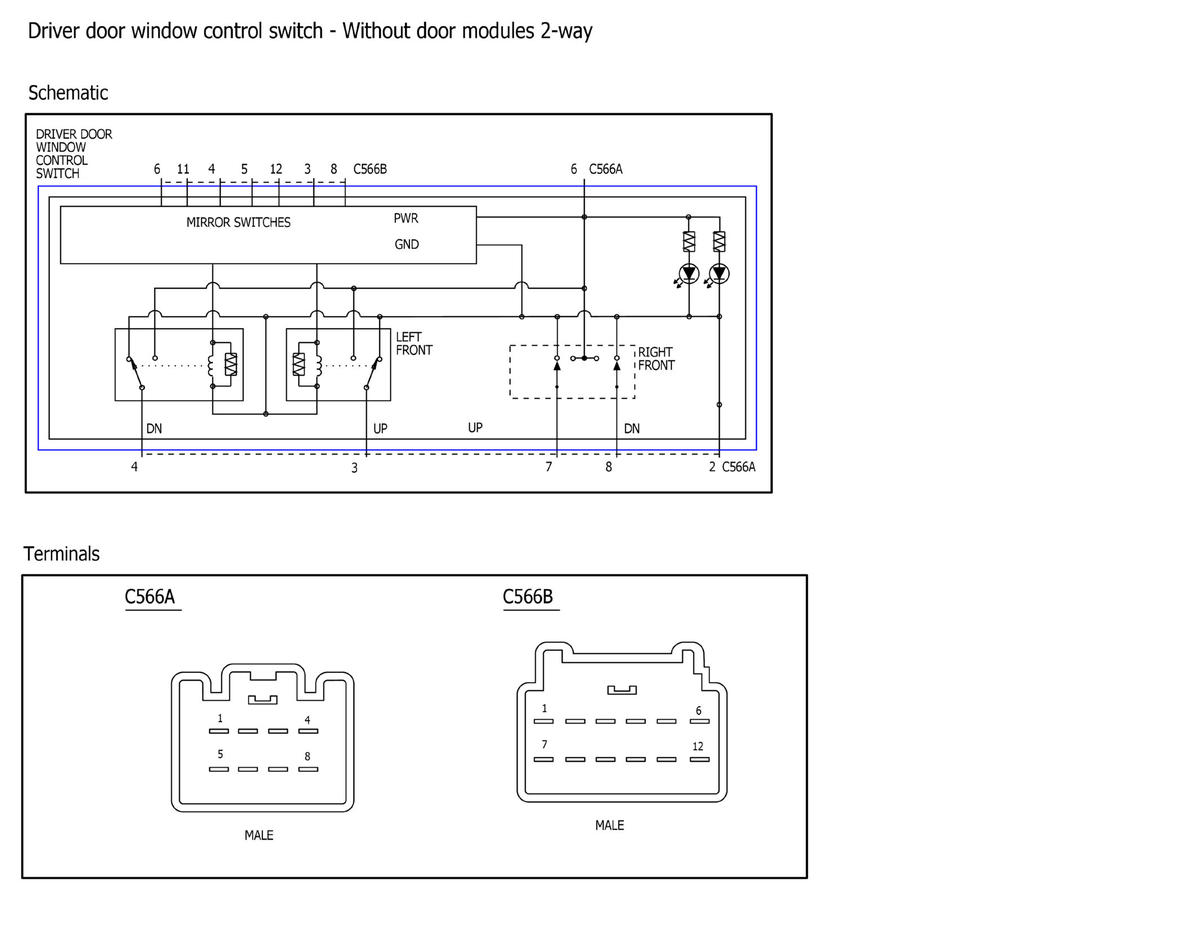

Fig 3: Driver Door Window Control Switch - Without Door Modules 2-Way Component Testing (1 of 2)
GFDWR19890Courtesy of FORD MOTOR COMPANY

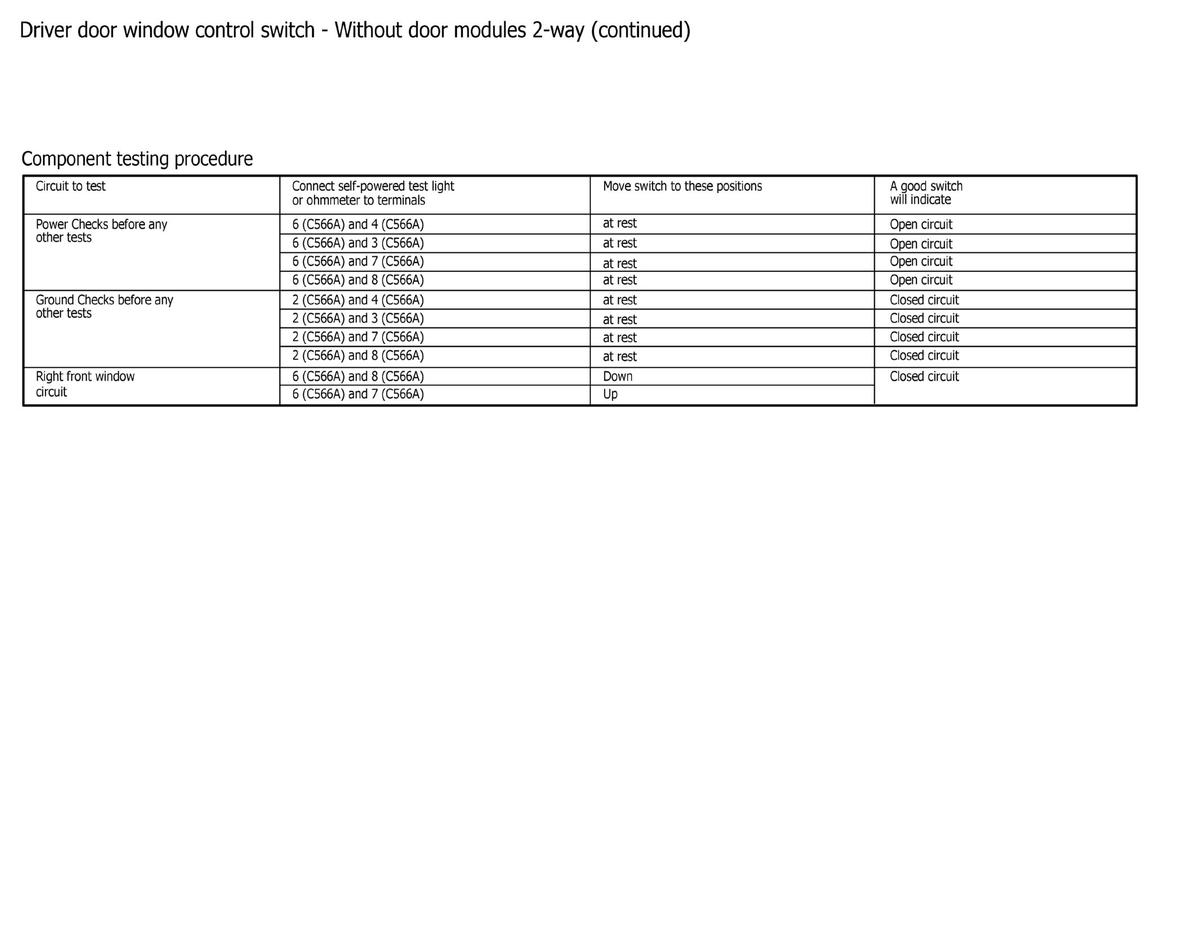

Fig 4: Driver Door Window Control Switch - Without Door Modules - 2-Way Component Testing (2 of 2)
GFDWR19894Courtesy of FORD MOTOR COMPANY

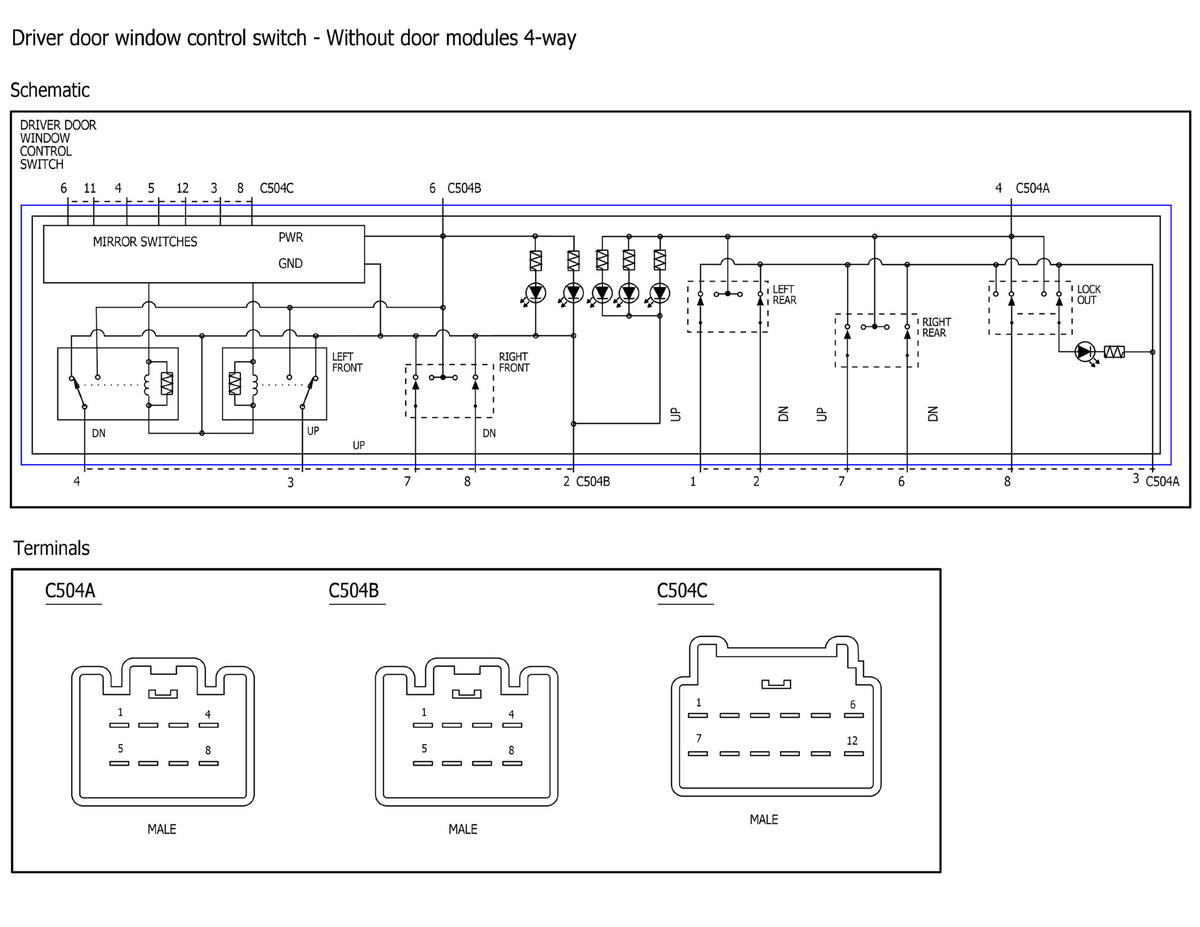

Fig 5: Driver Door Window Control Switch - Without Door Modules 4-Way Component Testing (1 of 2)
GFDWR19898Courtesy of FORD MOTOR COMPANY

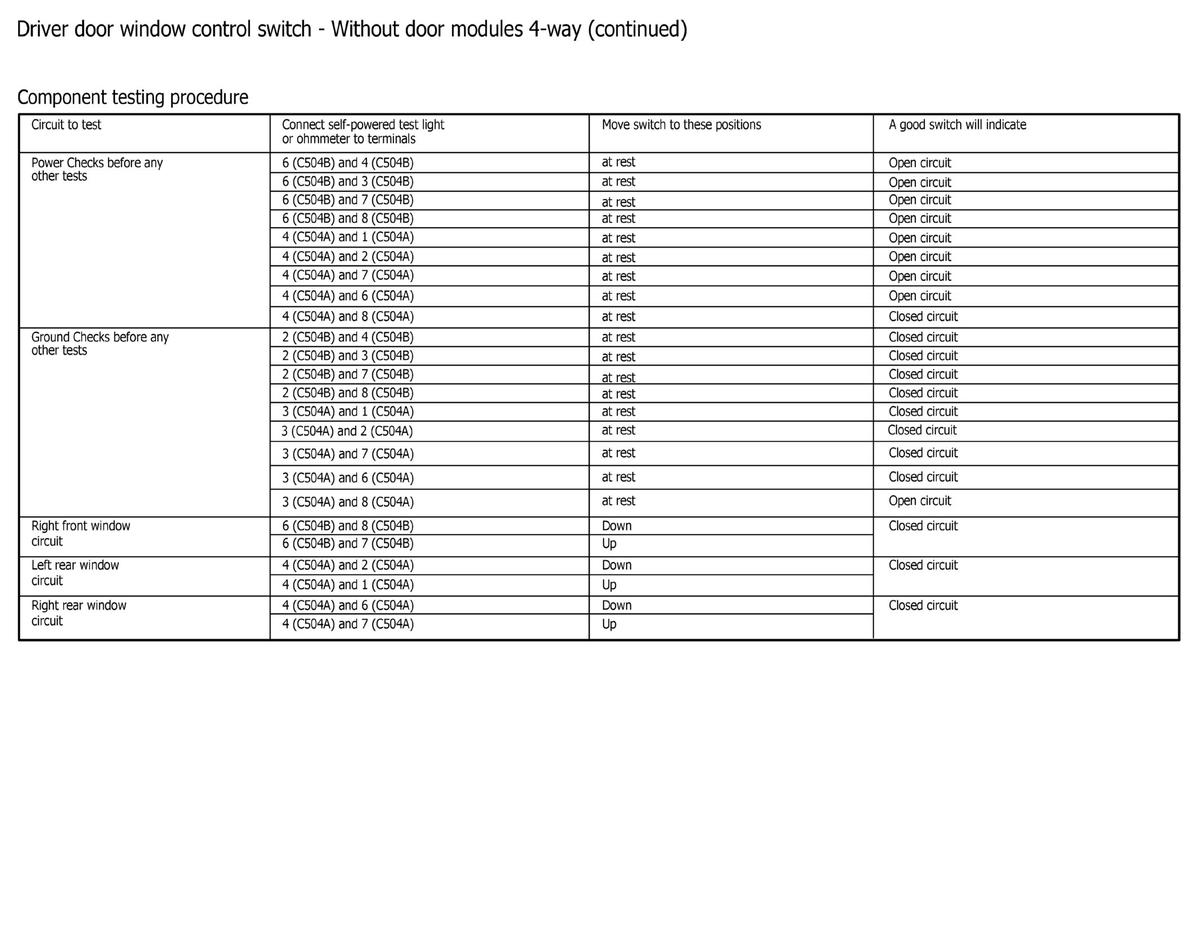

Fig 6: Driver Door Window Control Switch - Without Door Modules 4-Way Component Testing (2 of 2)
GFDWR19891Courtesy of FORD MOTOR COMPANY

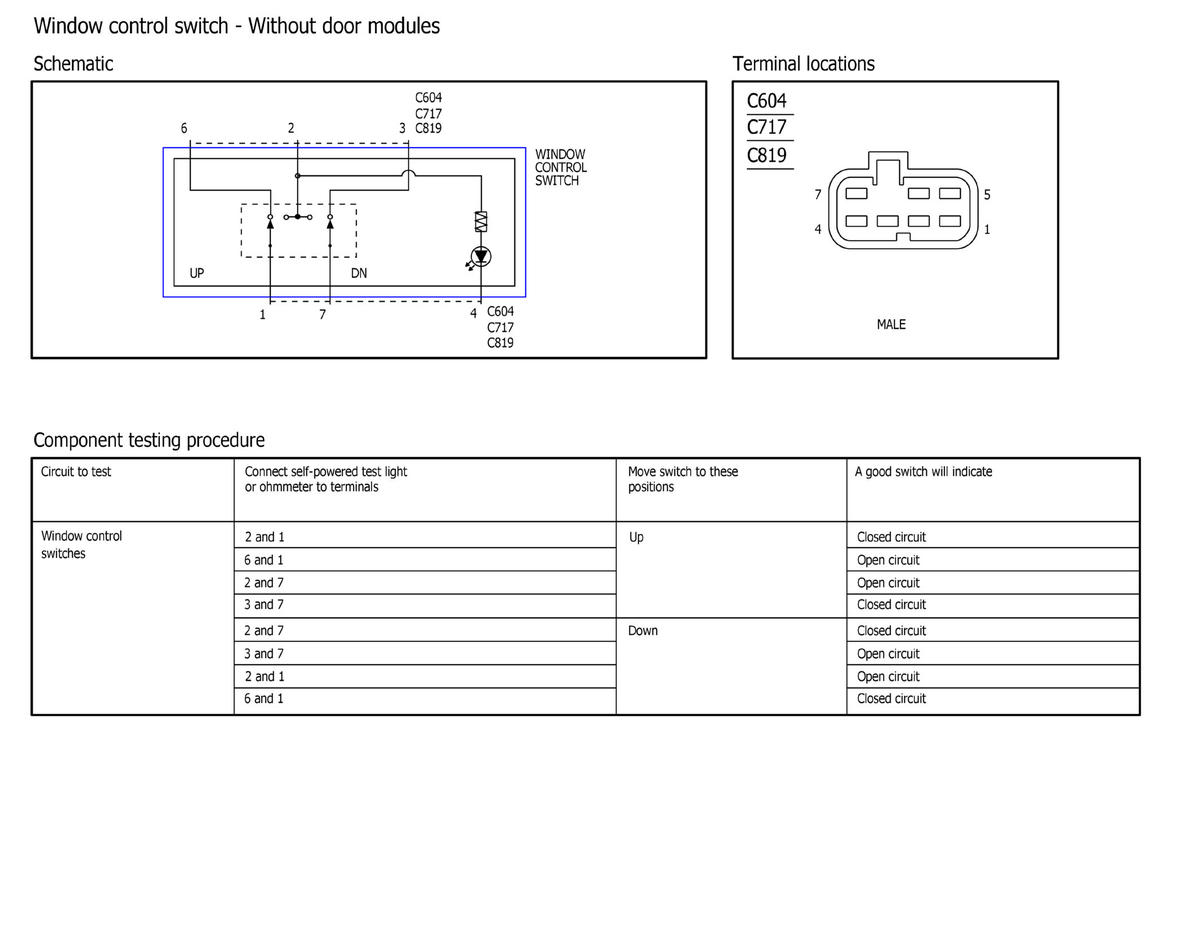

Fig 7: Window Control Switch - Without Door Modules Component Testing
GFDWR19889Courtesy of FORD MOTOR COMPANY

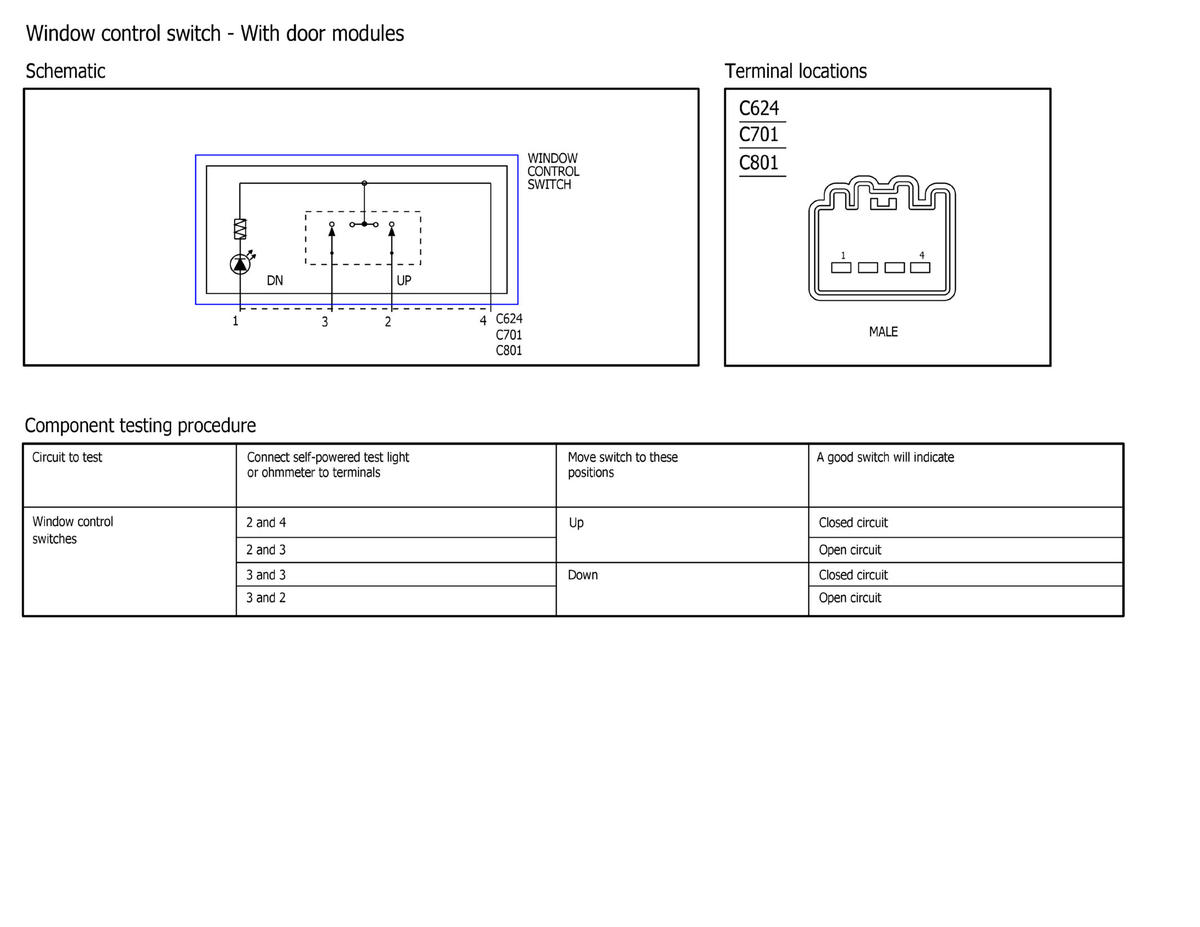

Fig 8: Window Control Switch - With Door Modules Component Testing
GFDWR19887Courtesy of FORD MOTOR COMPANY

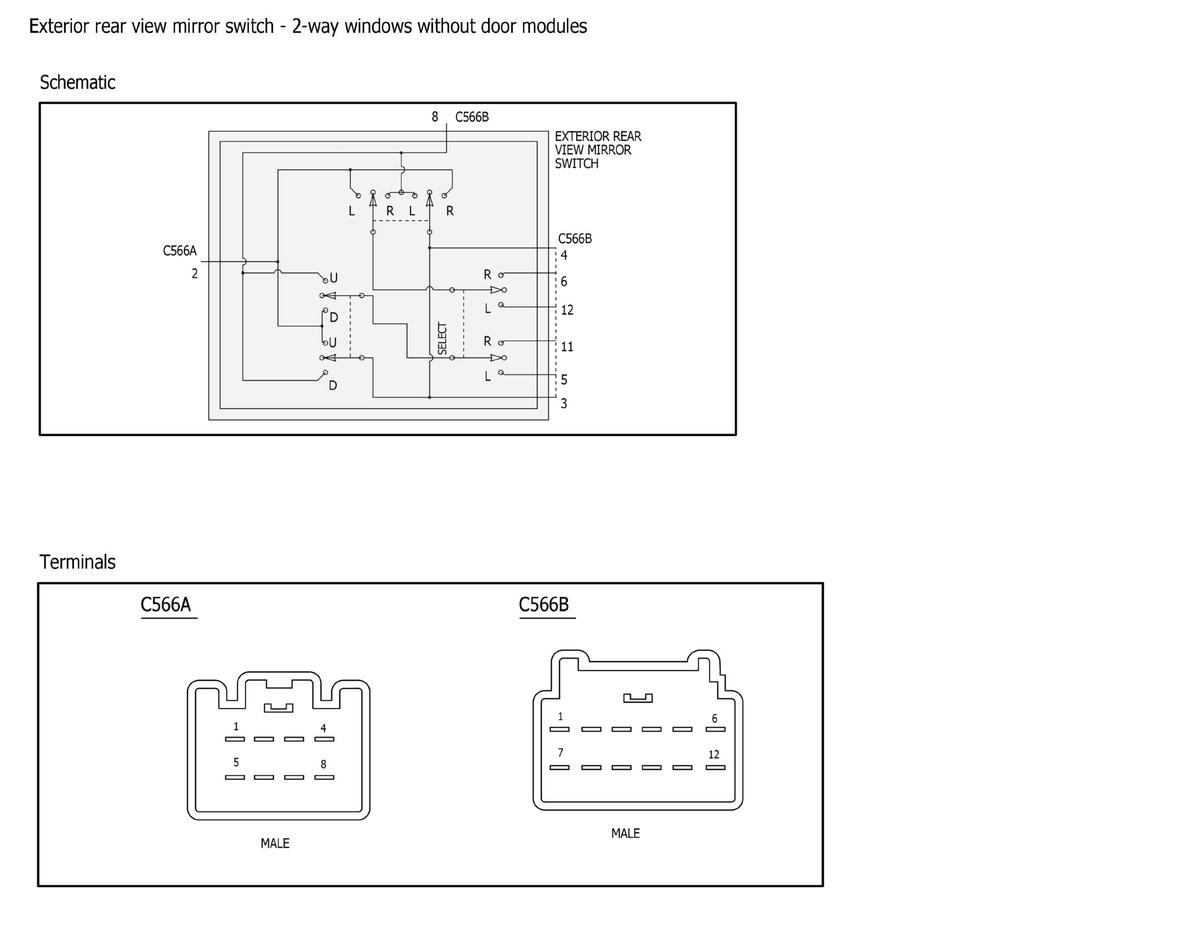

Fig 9: Exterior Rear View Mirror Switch - 2-Way Windows Without Door Modules Component Testing (1 of 2)
GFDWR19885Courtesy of FORD MOTOR COMPANY

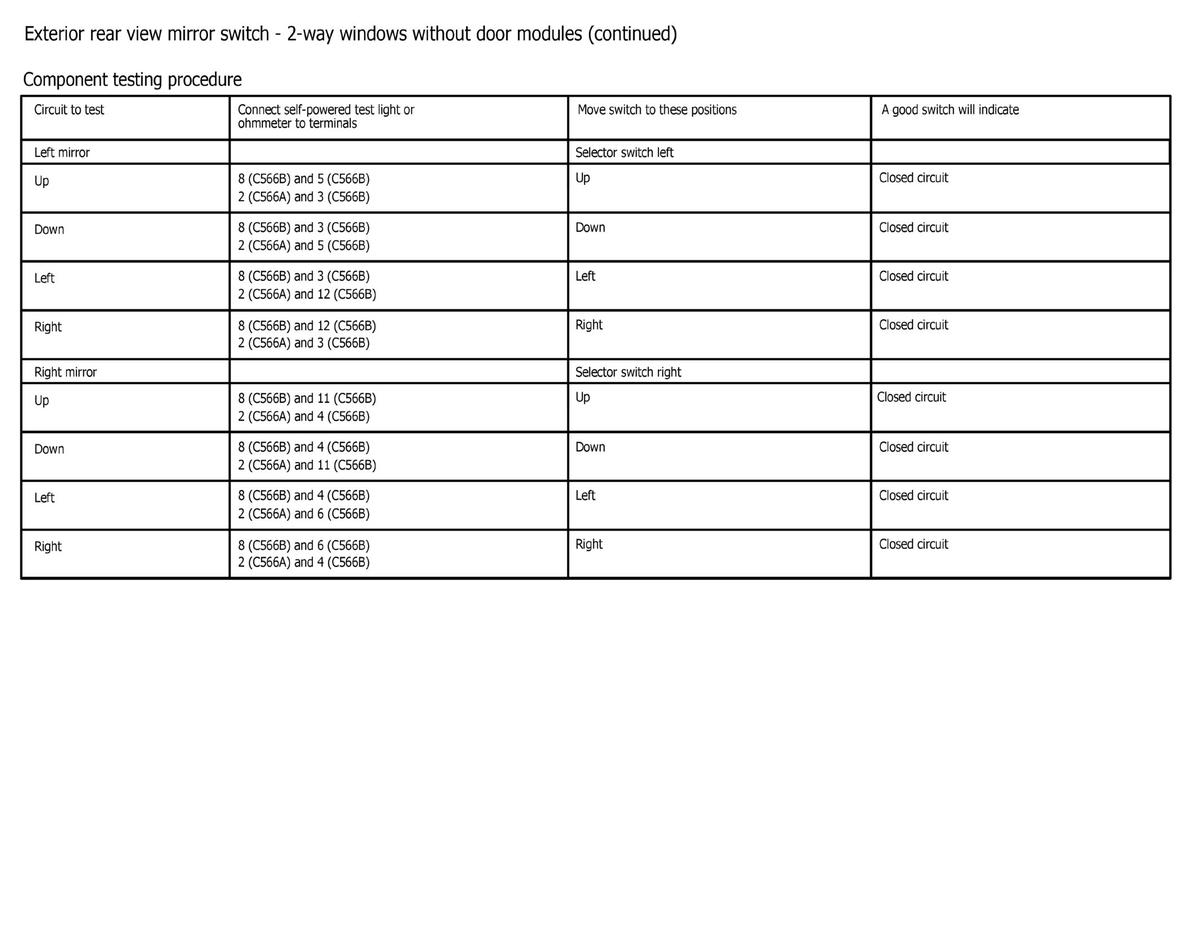

Fig 10: Exterior Rear View Mirror Switch - 2-Way Windows Without Door Modules Component Testing (2 of 2)
GFDWR19899Courtesy of FORD MOTOR COMPANY

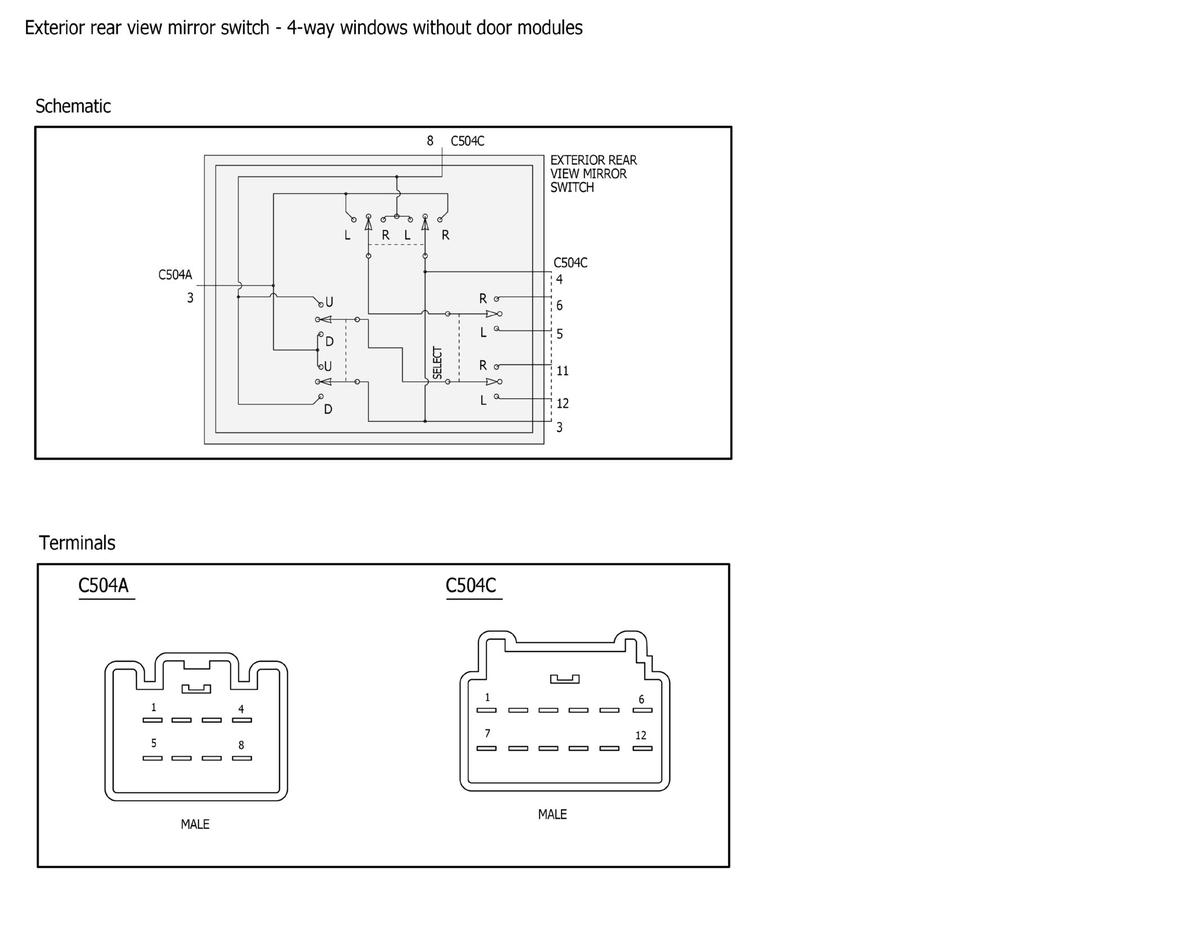

Fig 11: Exterior Rear View Mirror Switch - 4-Way Windows Without Door Modules Component Testing (1 of 2)
GFDWR19896Courtesy of FORD MOTOR COMPANY

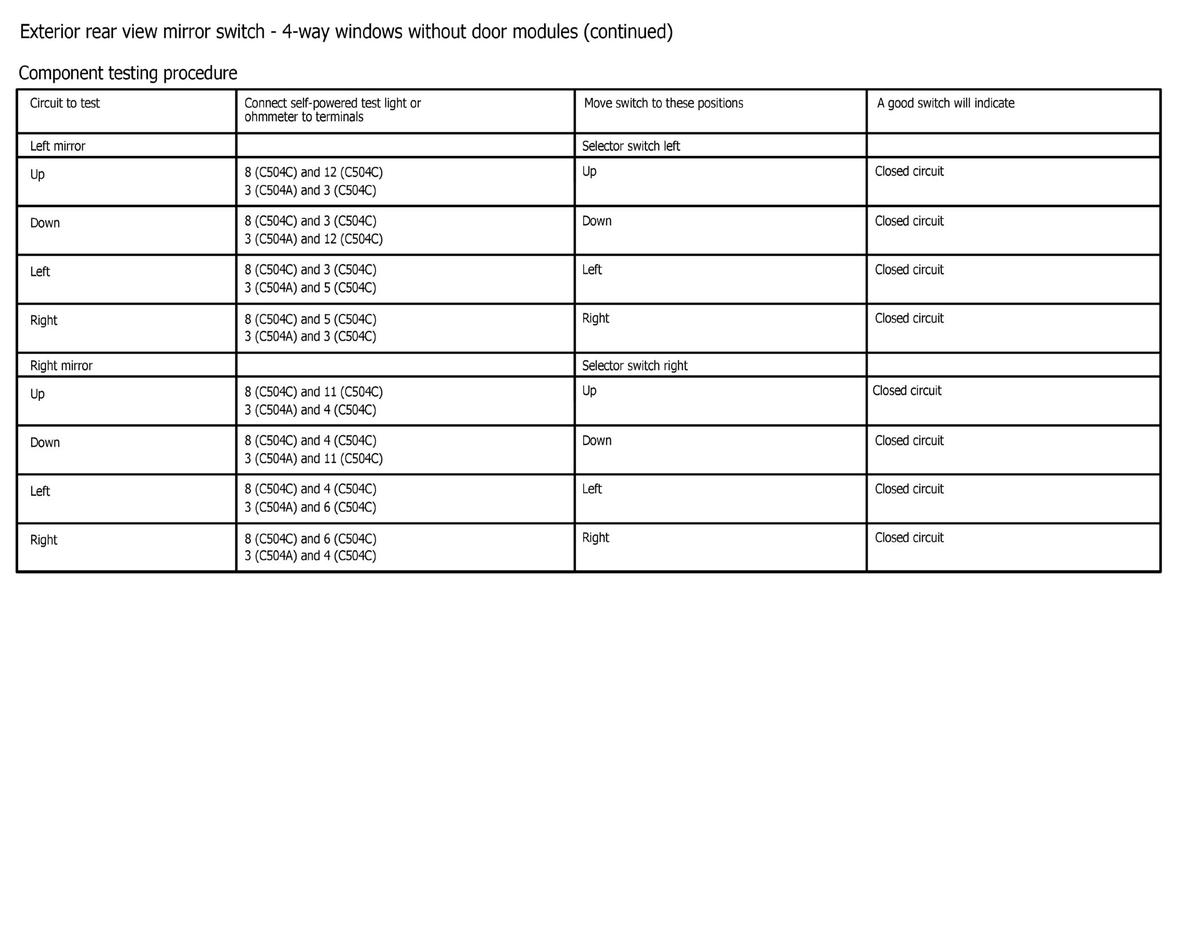

Fig 12: Exterior Rear View Mirror Switch - 4-Way Windows Without Door Modules Component Testing (2 of 2)
GFDWR19888Courtesy of FORD MOTOR COMPANY

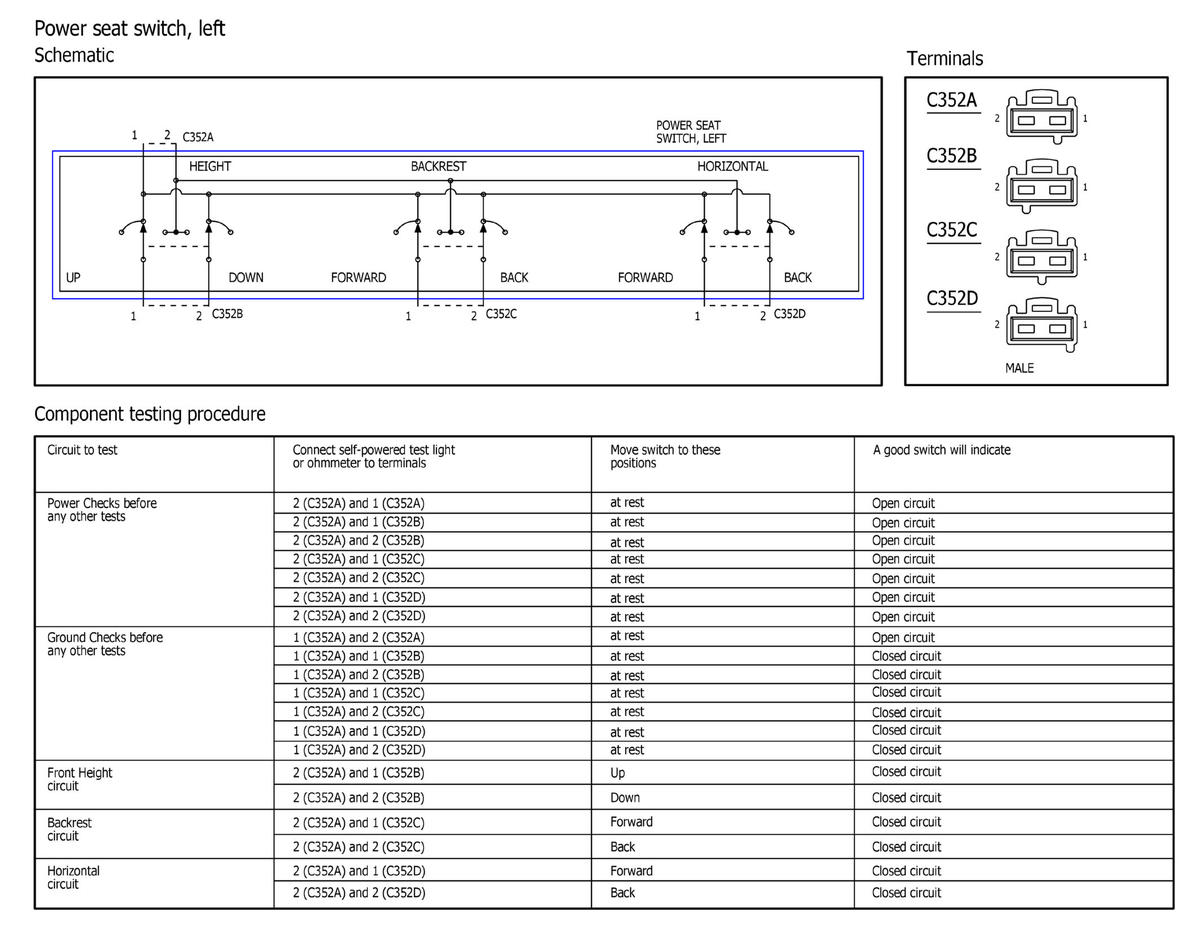

Fig 13: Power Seat Switch, Left Component Testing
GFDWR19884Courtesy of FORD MOTOR COMPANY

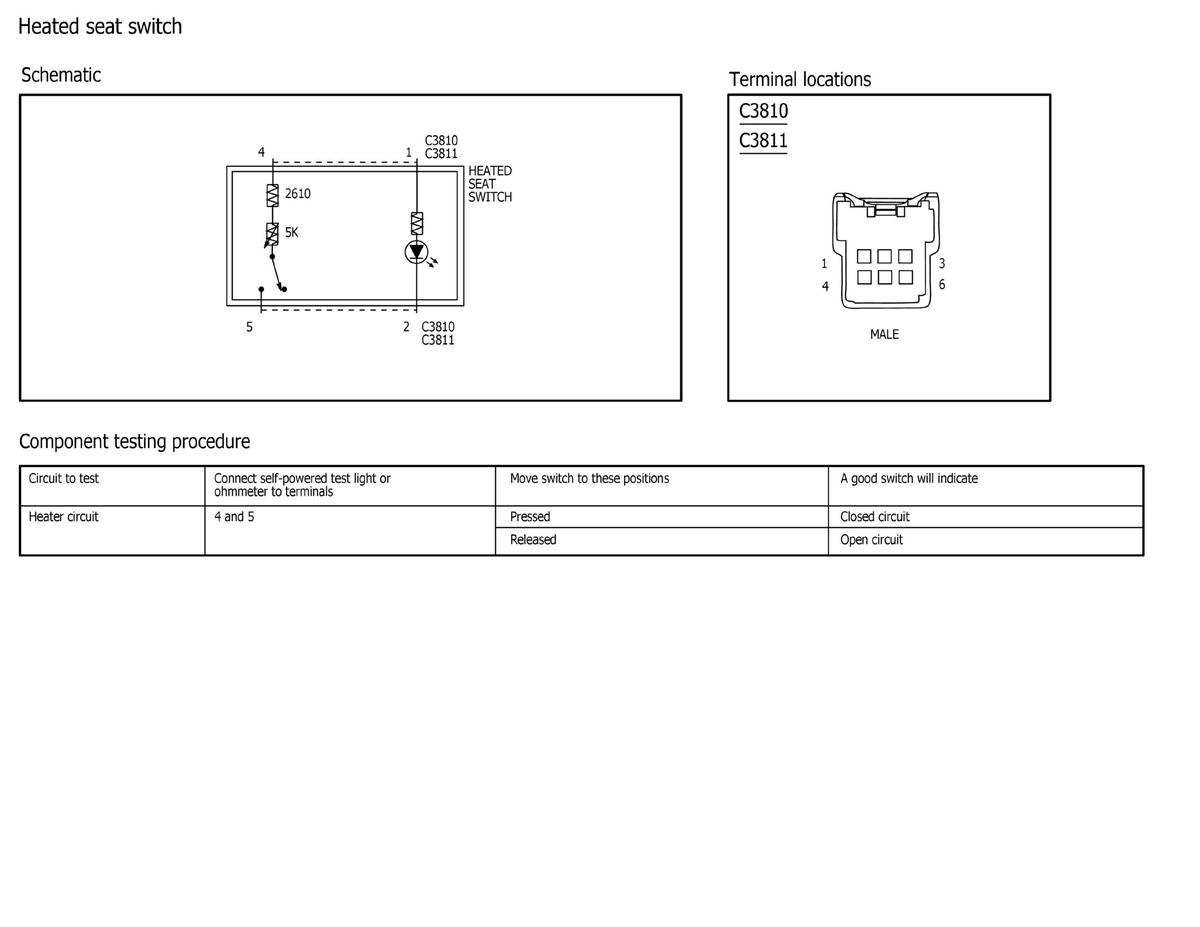

Fig 14: Heated Seat Switch Component Testing
GFDWR19897Courtesy of FORD MOTOR COMPANY

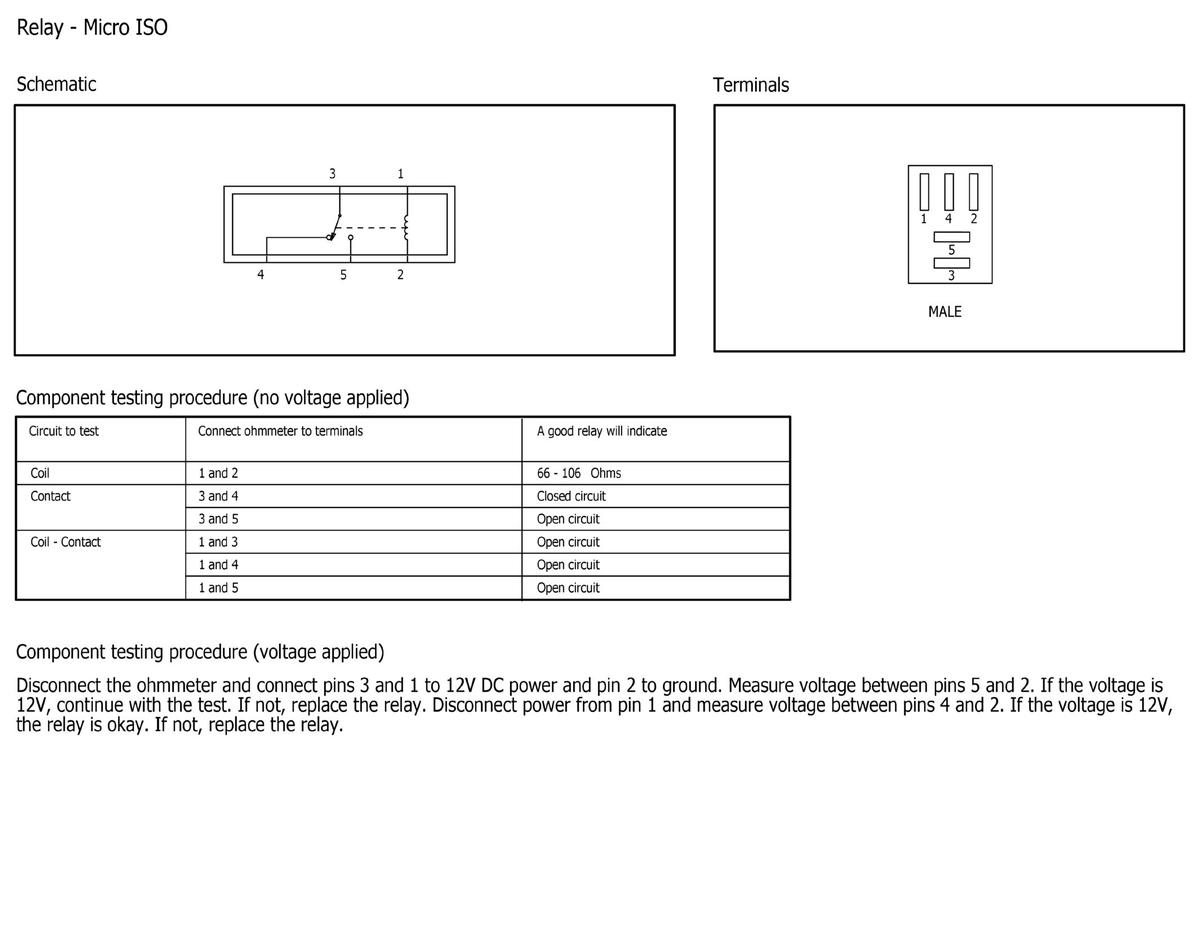

Fig 15: Relay - Micro ISO Component Testing
GFDWR19892Courtesy of FORD MOTOR COMPANY

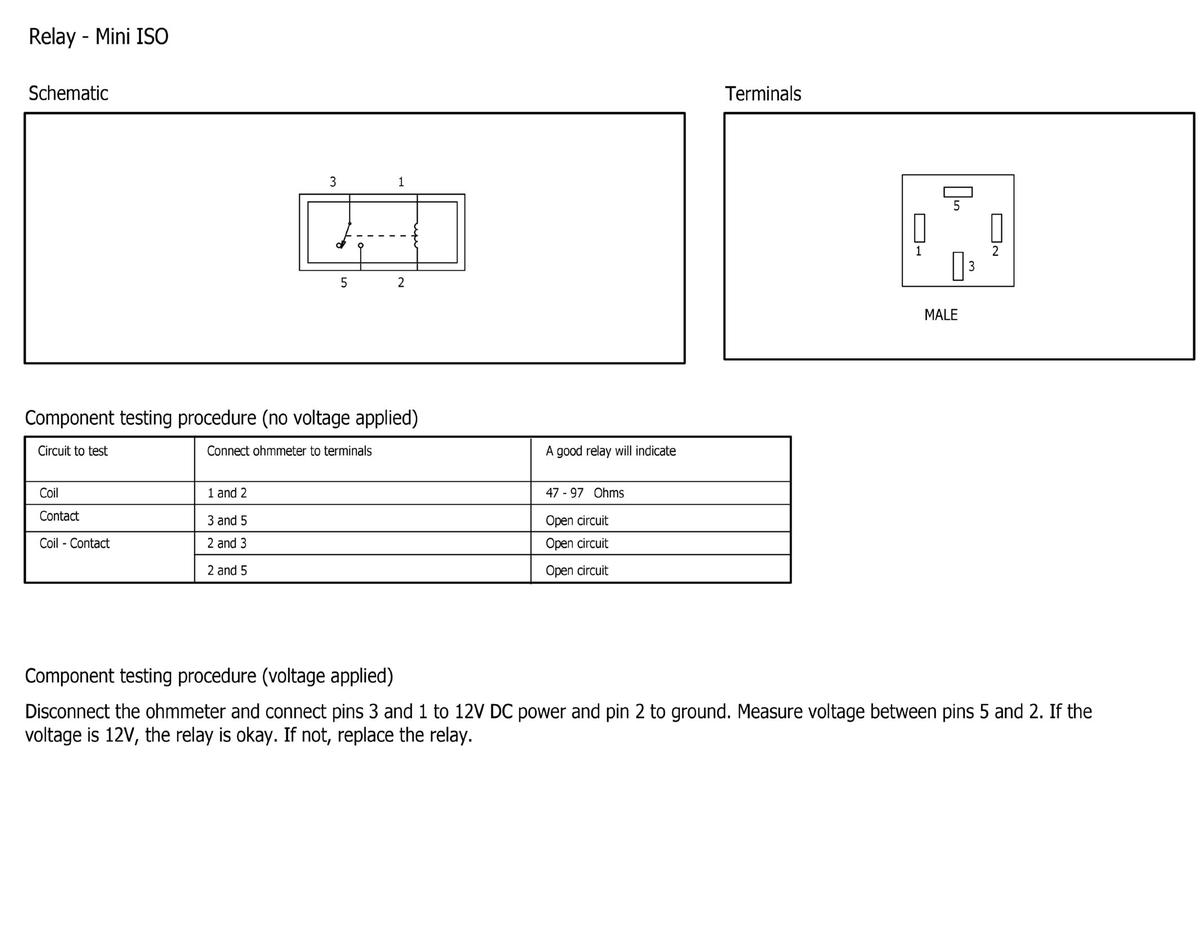

Fig 16: Relay - Mini ISO Component Testing
GFDWR19886Courtesy of FORD MOTOR COMPANY

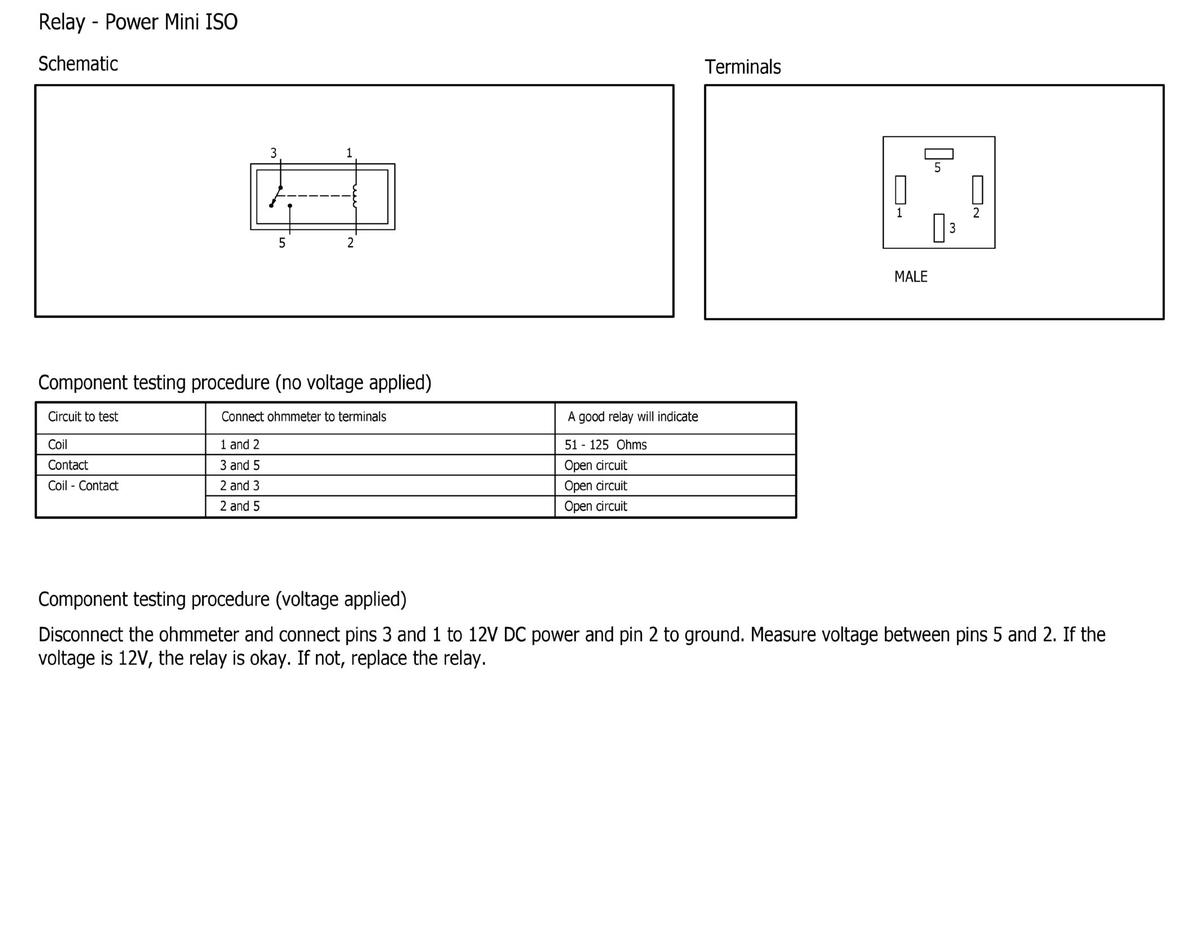

Fig 17: Relay - Power Mini ISO Component Testing
GFDWR19895Courtesy of FORD MOTOR COMPANY
