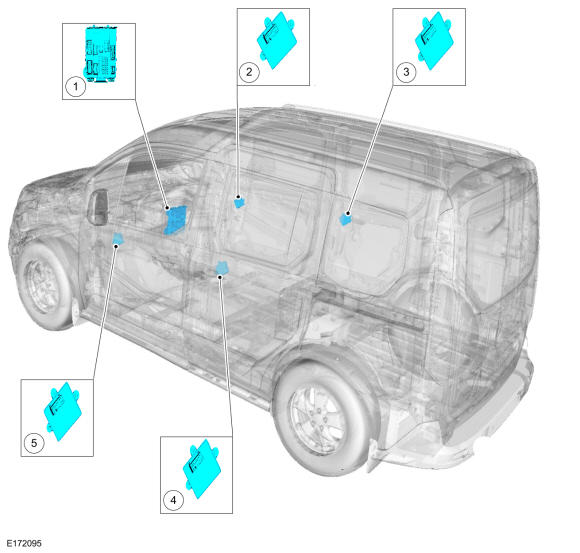

Component Location

GFD305802Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 PDM
3 Passenger Rear Door Module (PRDM)
4 Driver Rear Door Module (DRDM)
5 DDM
