Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .

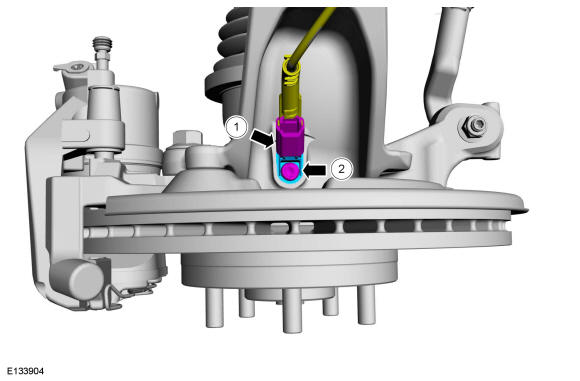

1. Disconnect the front wheel speed sensor electrical connector.
2. Remove the bolt and the front wheel speed sensor.
  Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
