Piston Diameter
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Check
NOTE:
Refer to Specifications
.

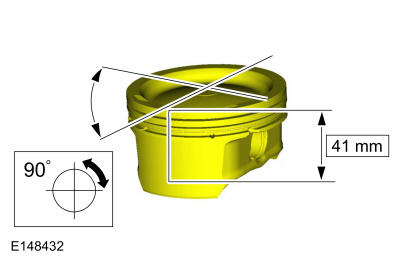

- Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
