Connector Repair Procedures

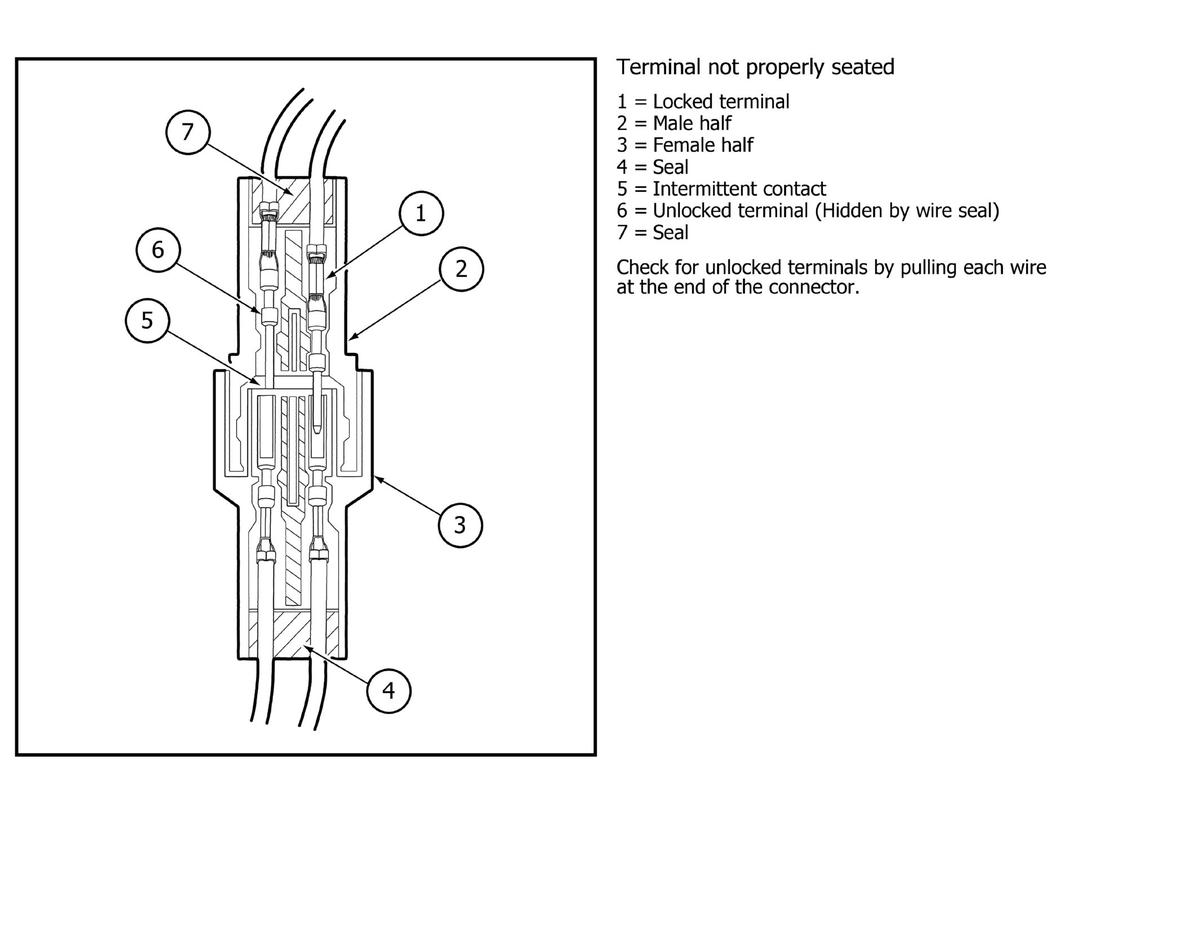

GFDWR19540Courtesy of FORD MOTOR COMPANY

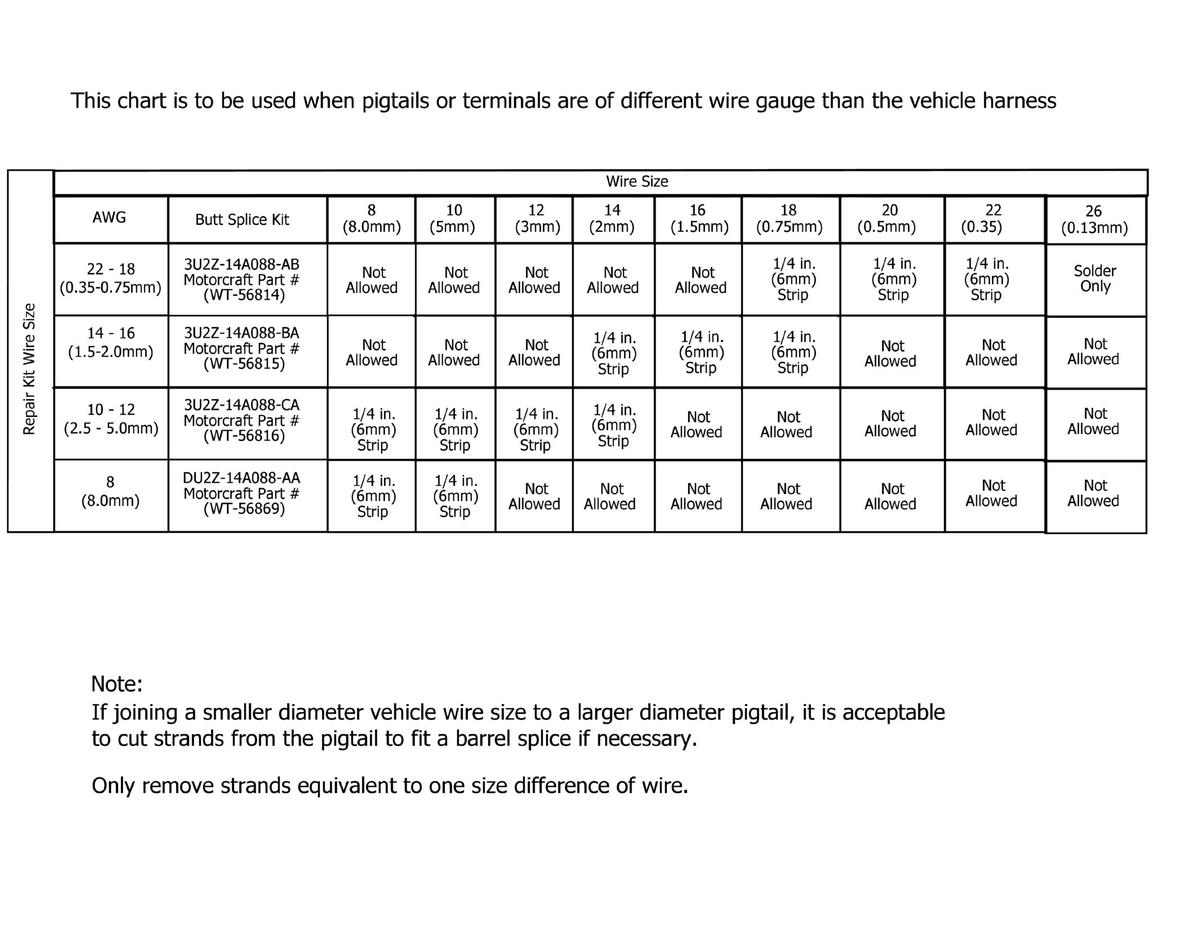

GFDWR19541Courtesy of FORD MOTOR COMPANY

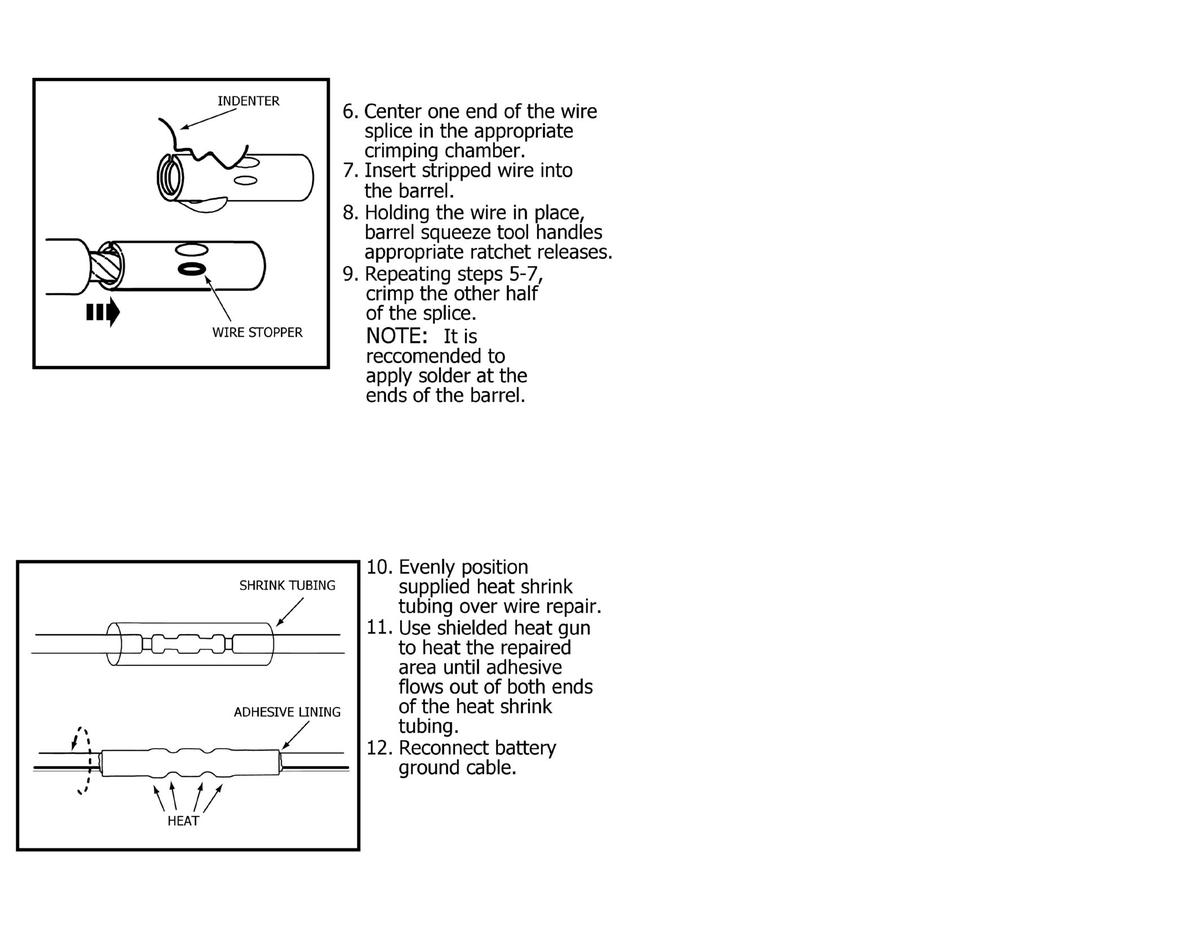

GFDWR19542Courtesy of FORD MOTOR COMPANY

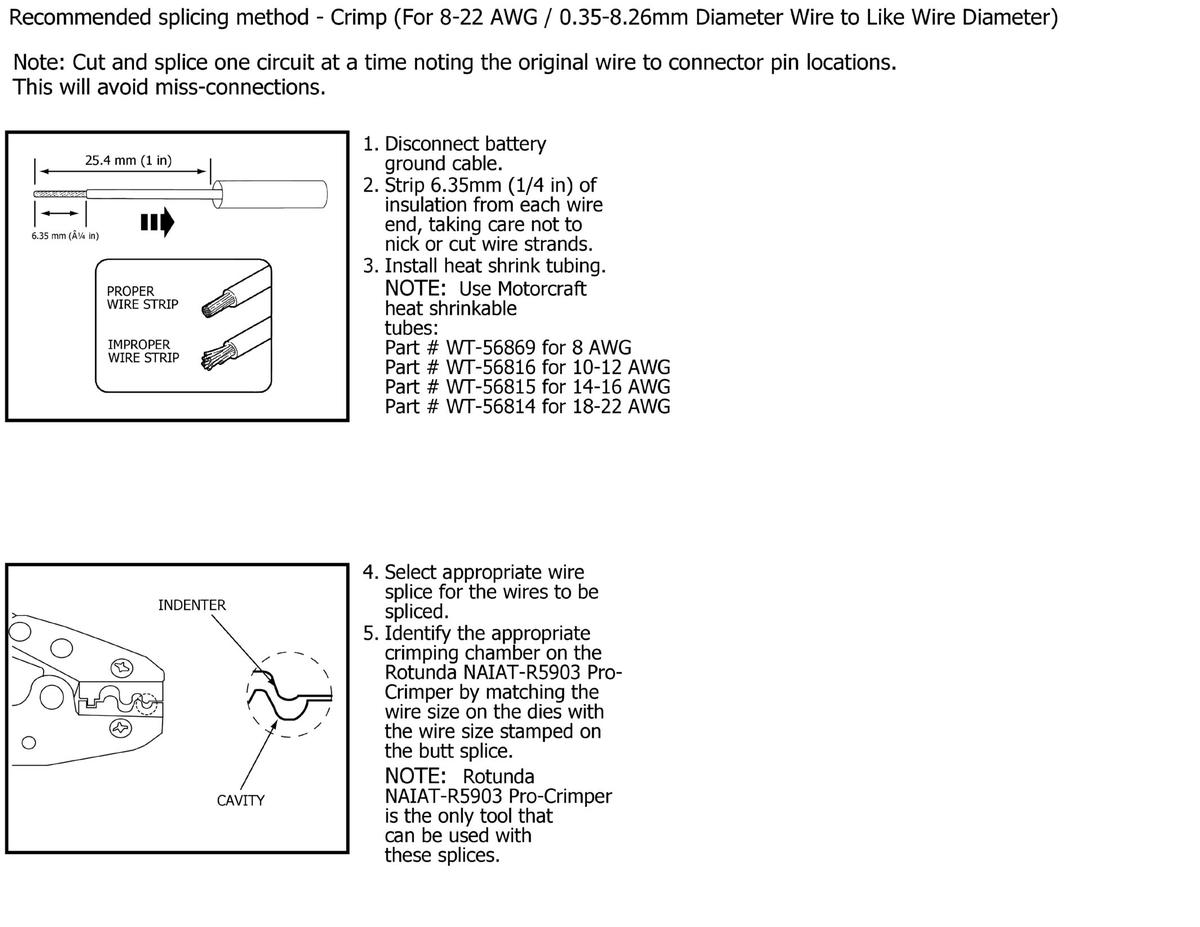

GFDWR19543Courtesy of FORD MOTOR COMPANY

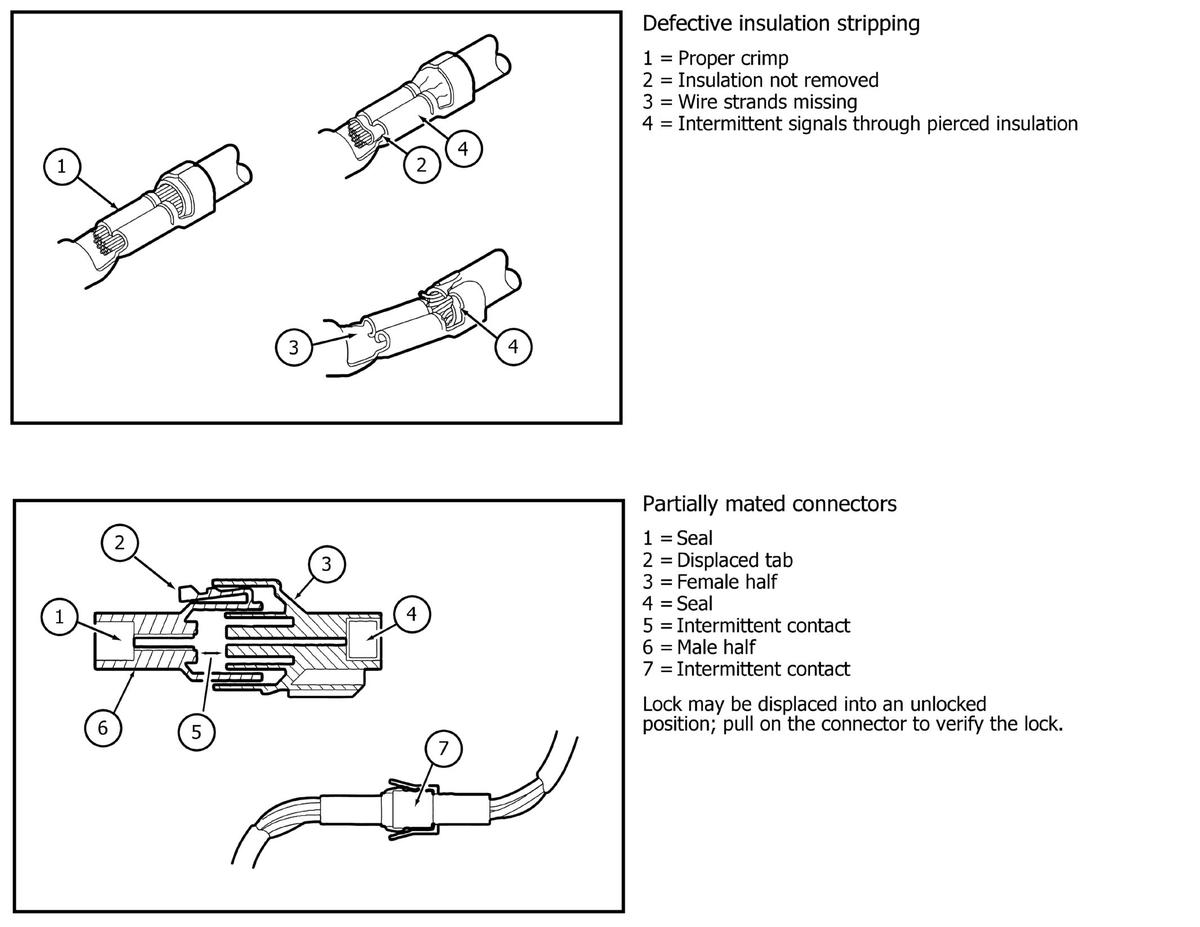

GFDWR19544Courtesy of FORD MOTOR COMPANY

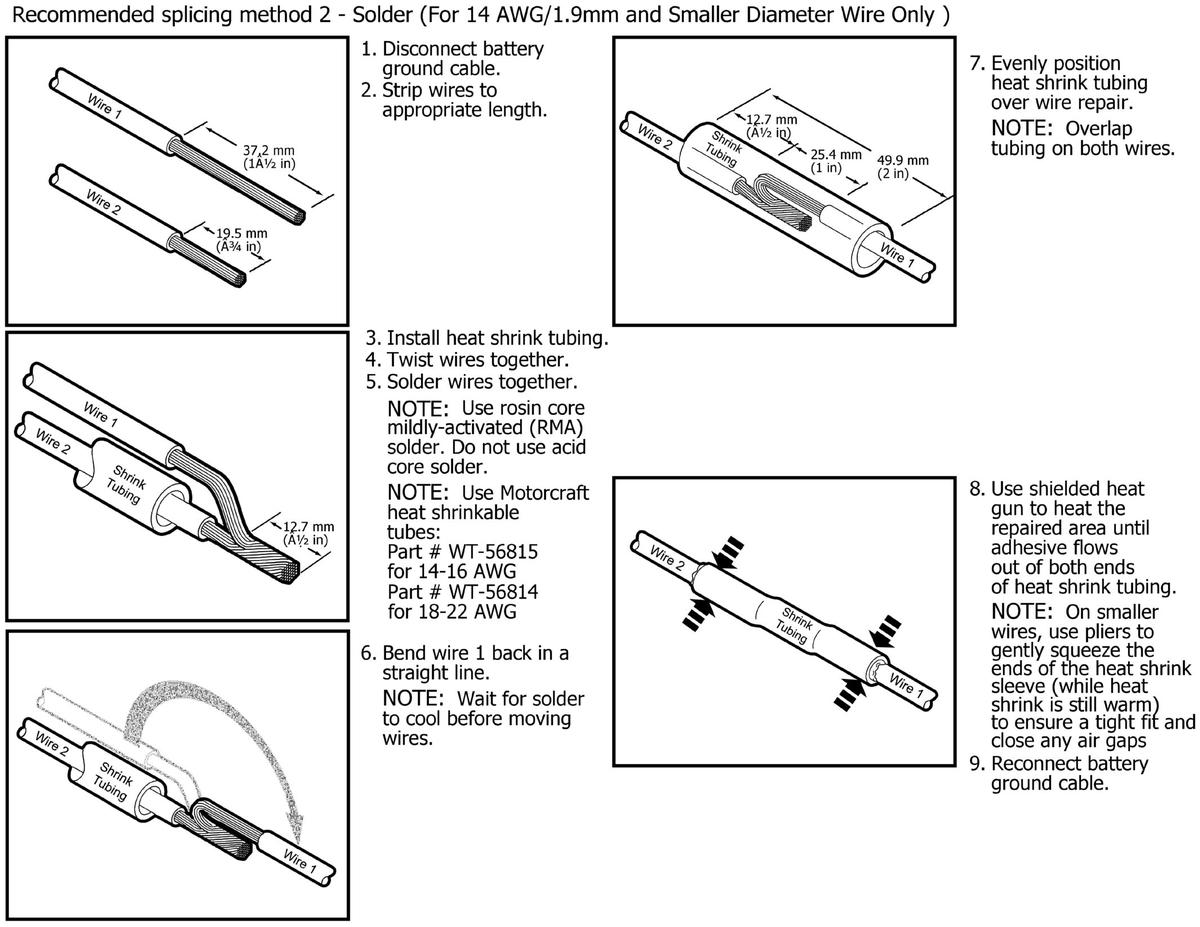

GFDWR19545Courtesy of FORD MOTOR COMPANY

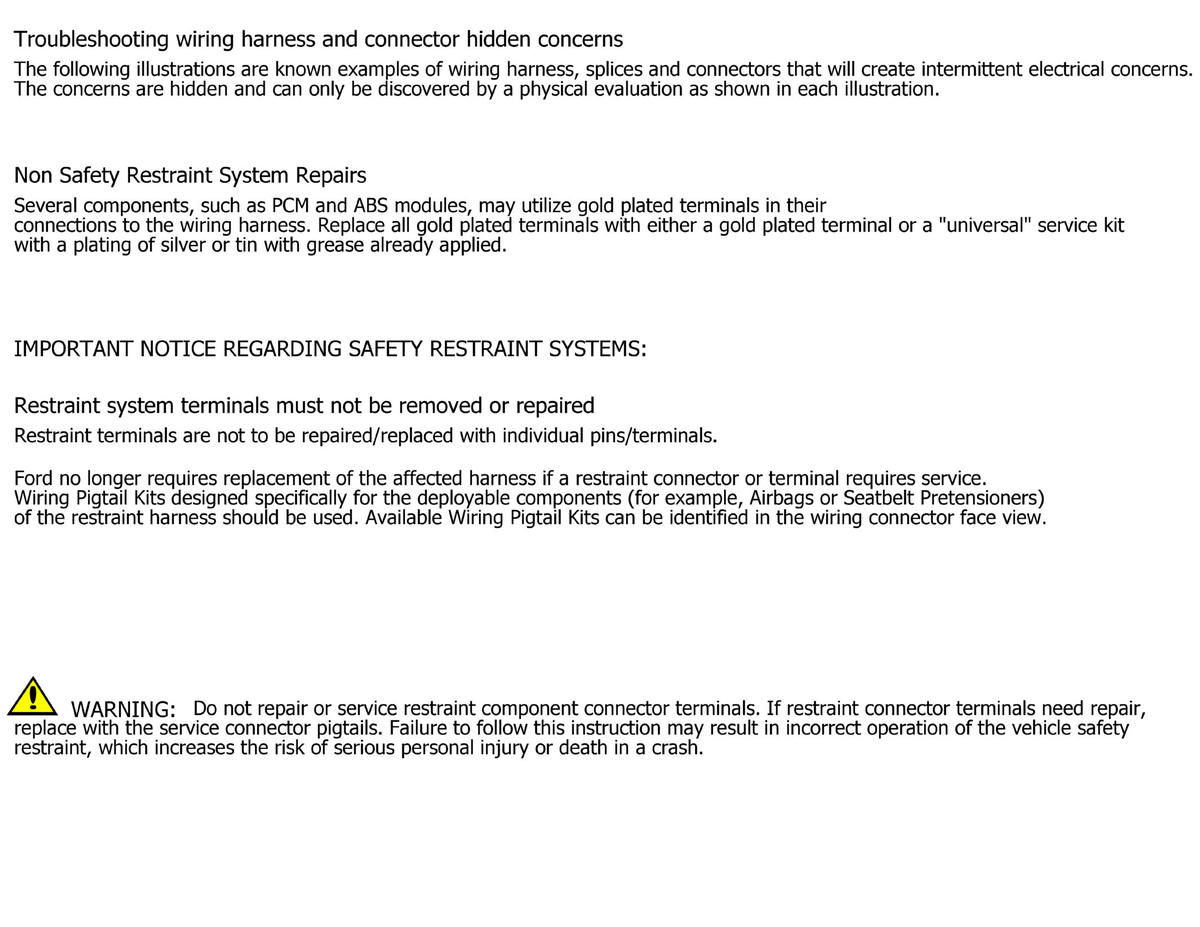

GFDWR19546Courtesy of FORD MOTOR COMPANY

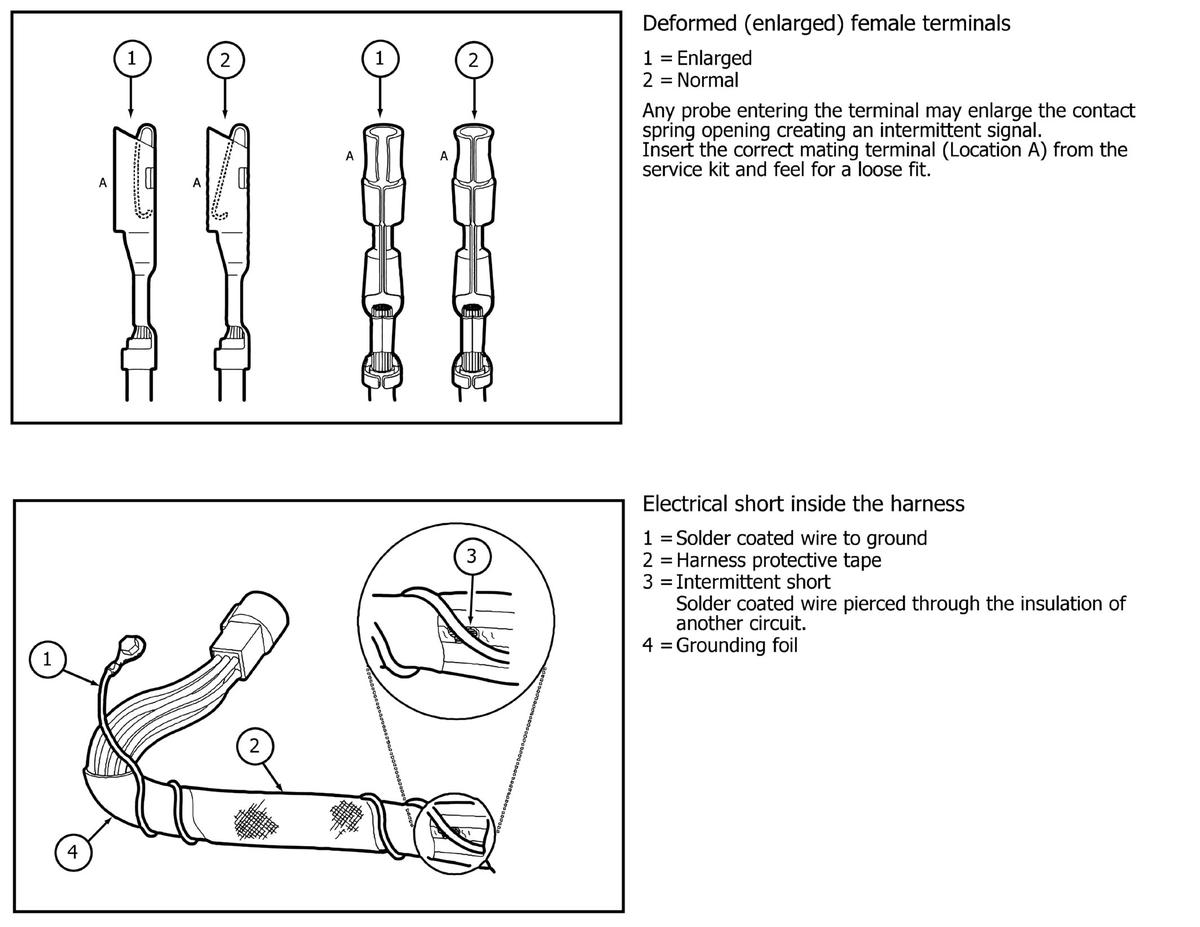

GFDWR19547Courtesy of FORD MOTOR COMPANY

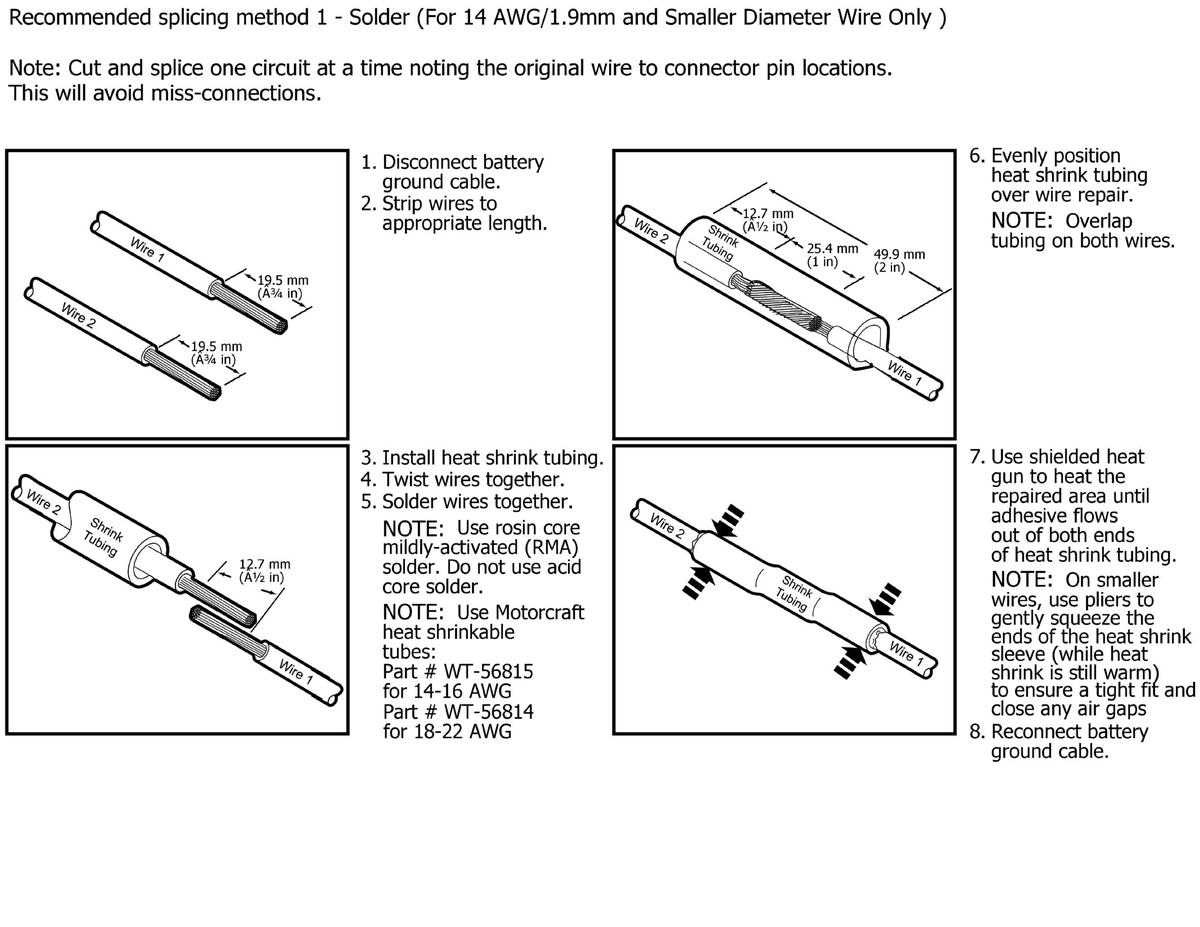

GFDWR19548Courtesy of FORD MOTOR COMPANY
