OEM Ground Distribution: Grounds

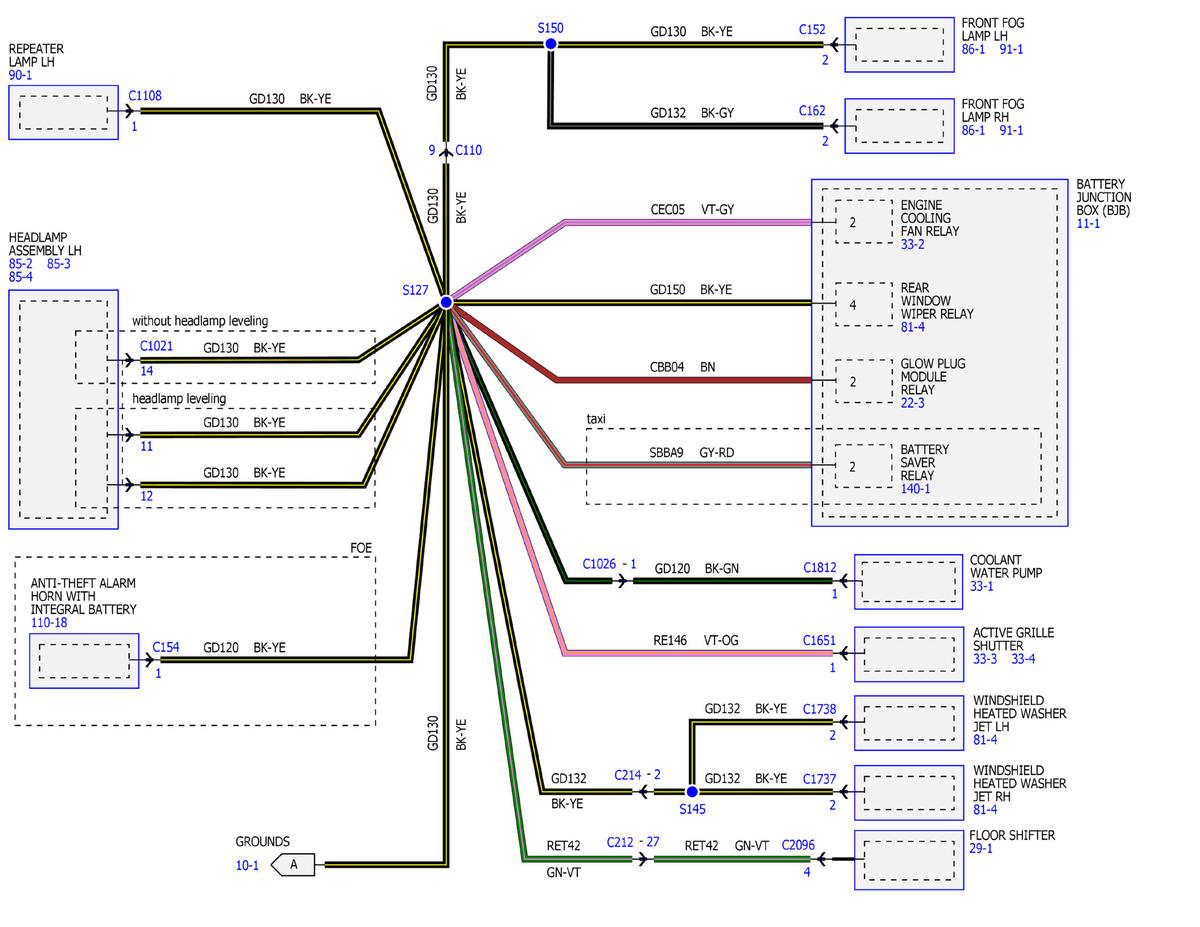

GFDWR19563Courtesy of FORD MOTOR COMPANY

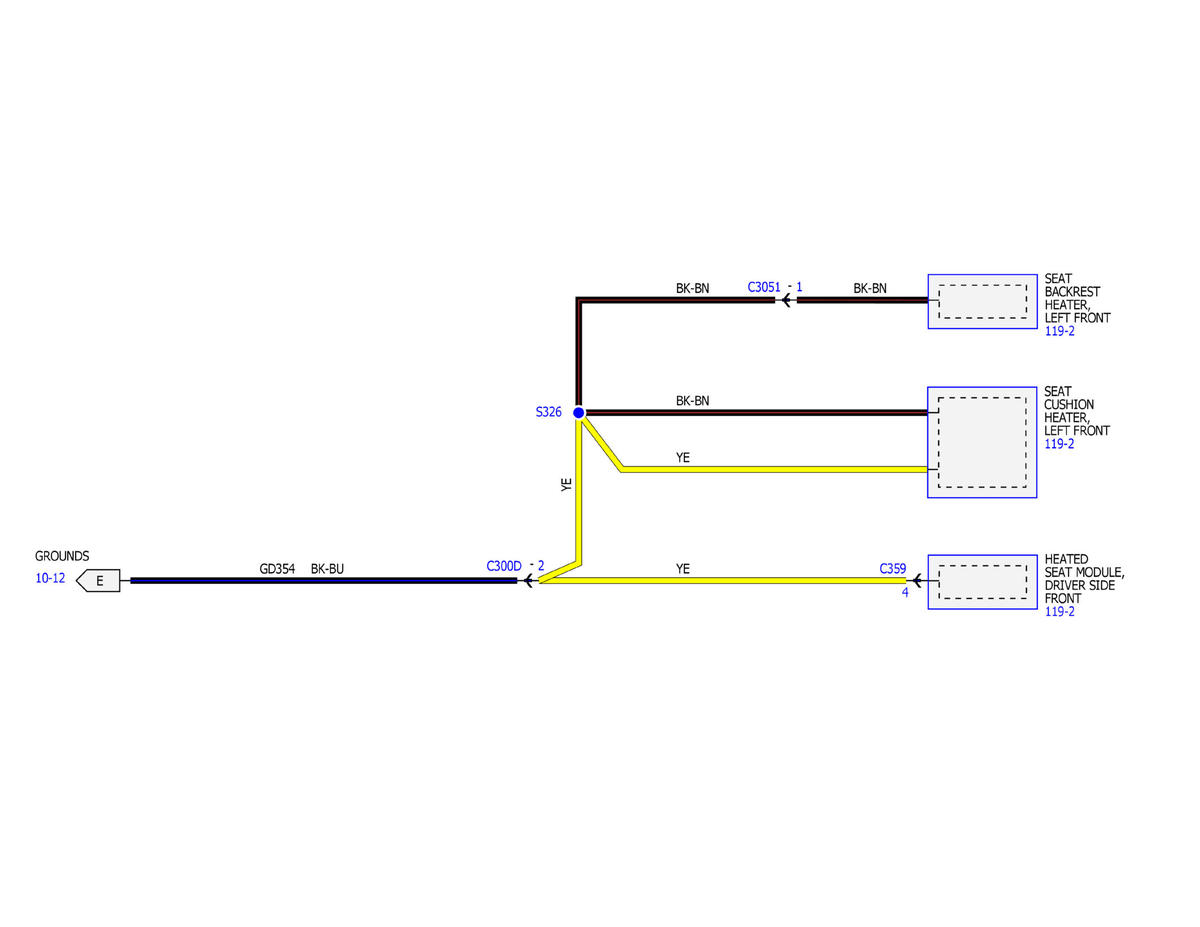

GFDWR19564Courtesy of FORD MOTOR COMPANY

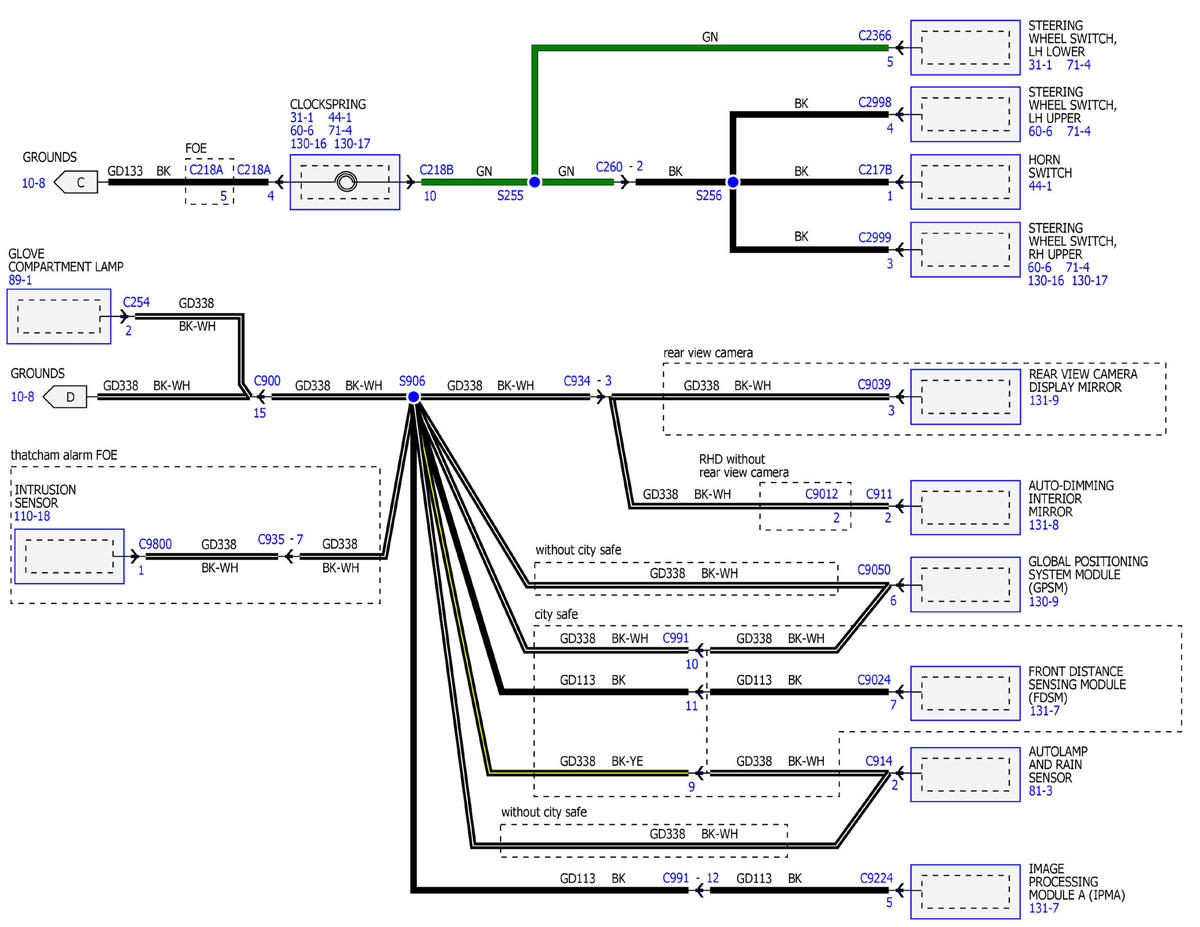

GFDWR19565Courtesy of FORD MOTOR COMPANY

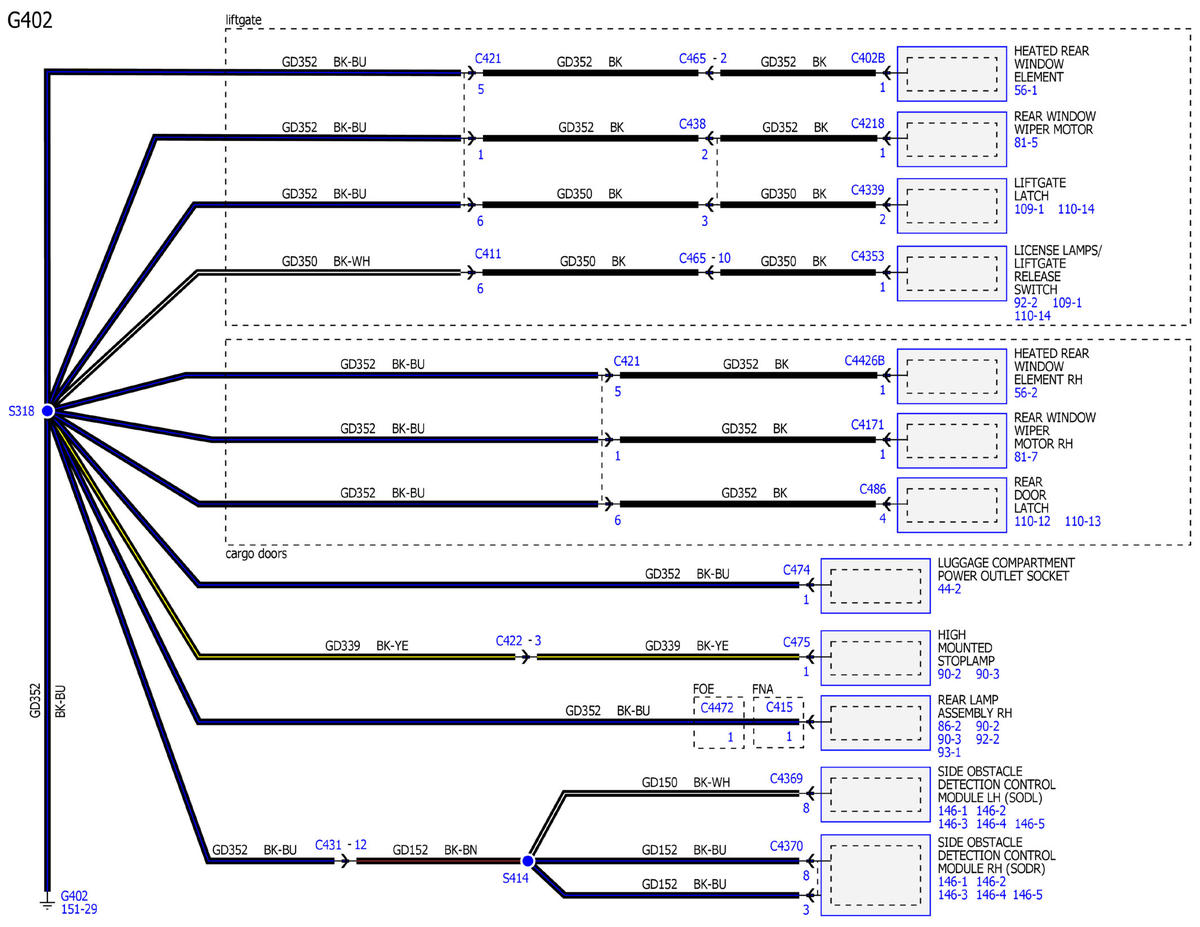

GFDWR19566Courtesy of FORD MOTOR COMPANY

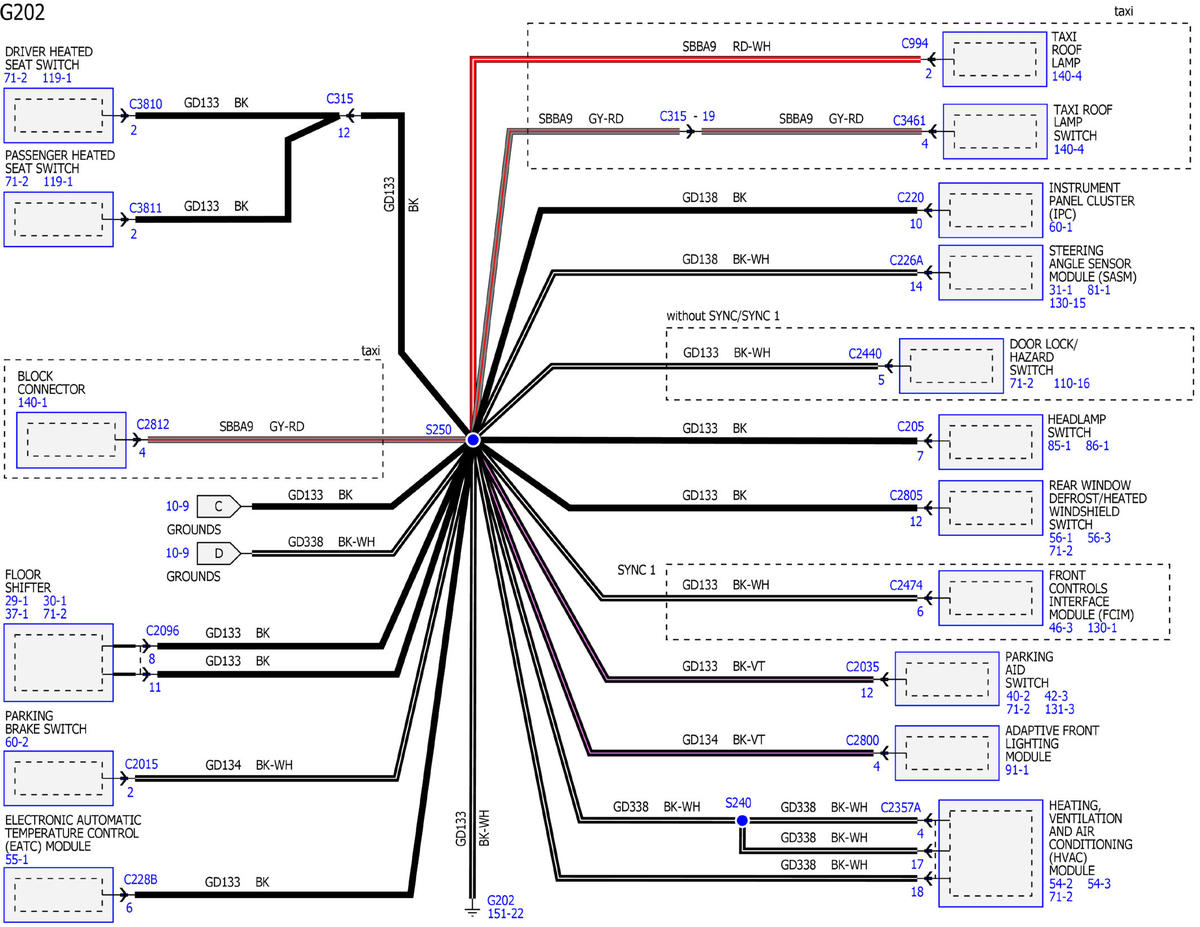

GFDWR19567Courtesy of FORD MOTOR COMPANY

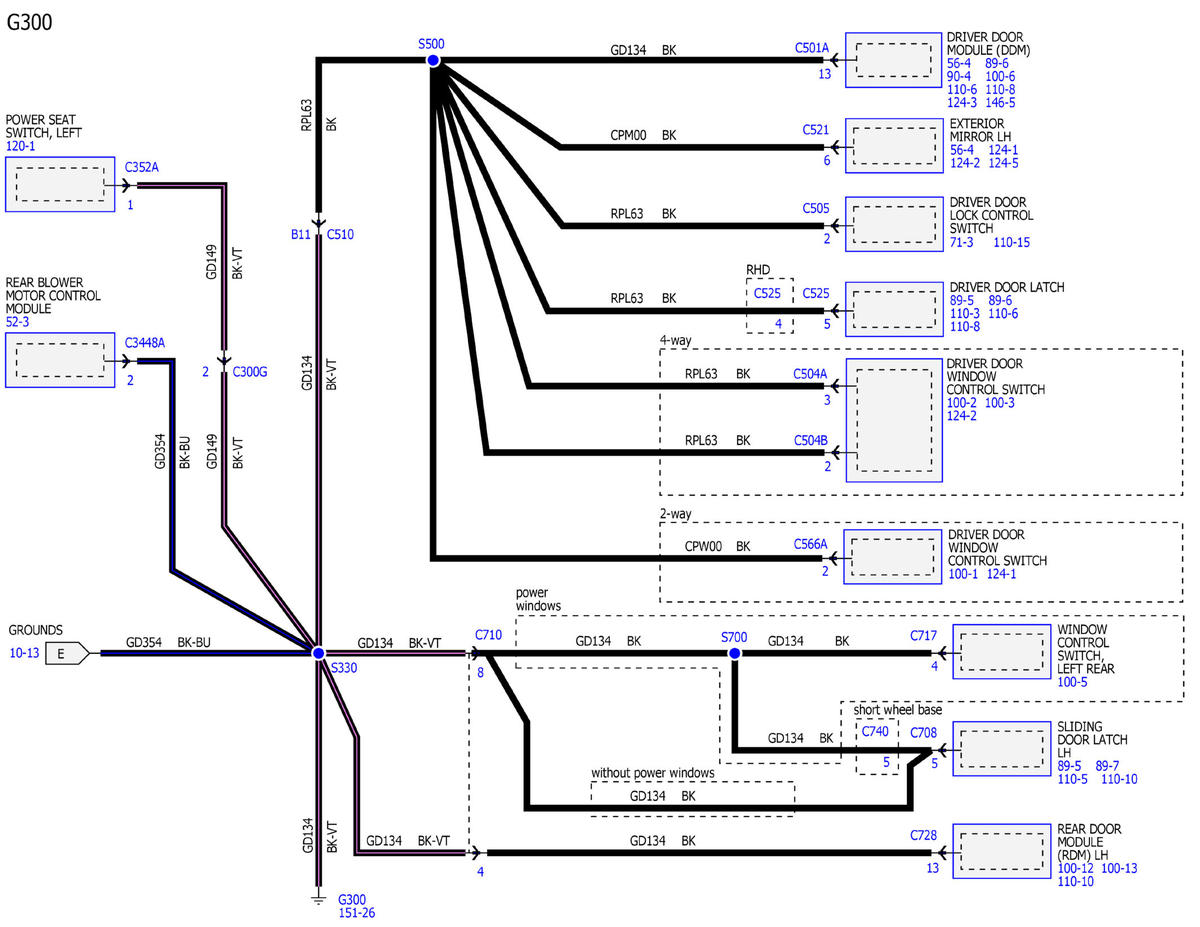

GFDWR19568Courtesy of FORD MOTOR COMPANY

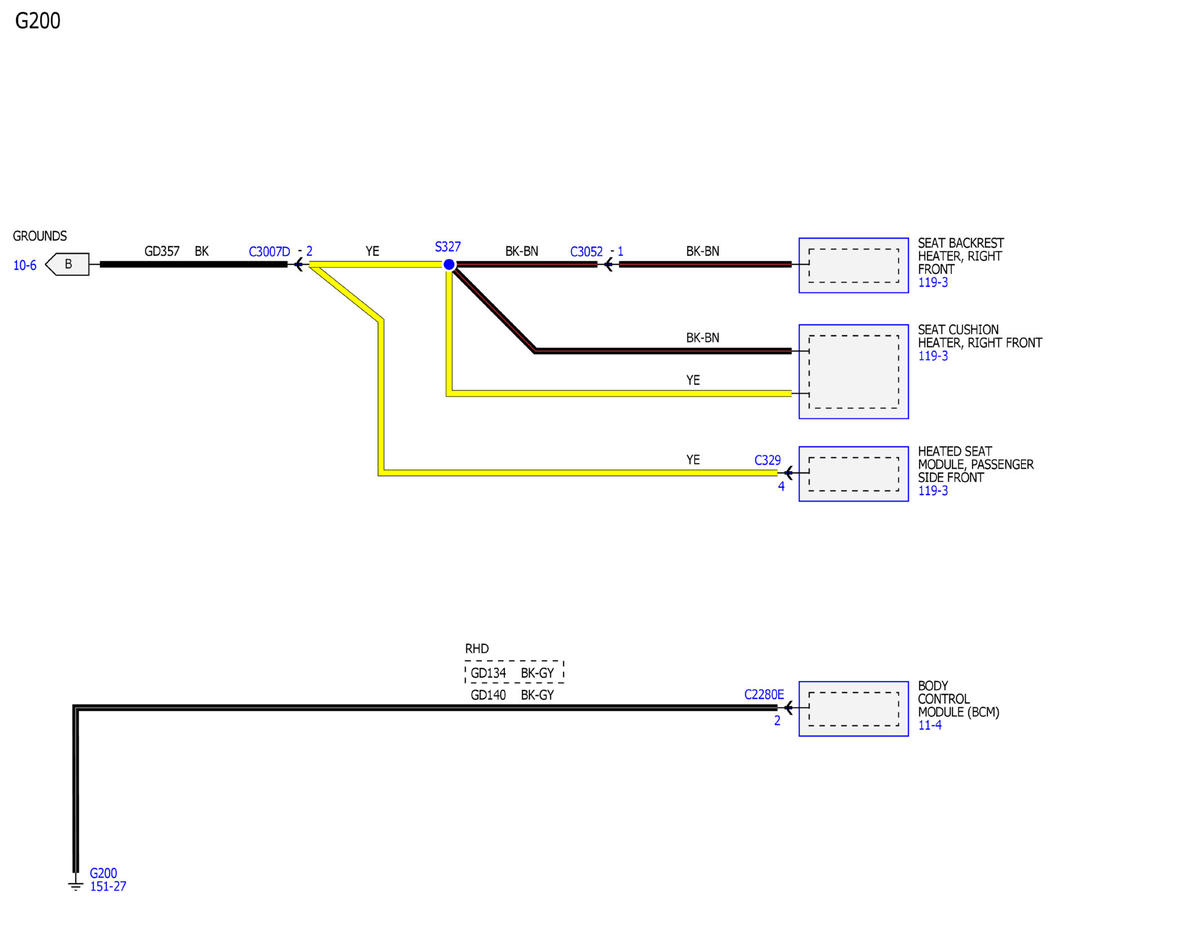

GFDWR19569Courtesy of FORD MOTOR COMPANY

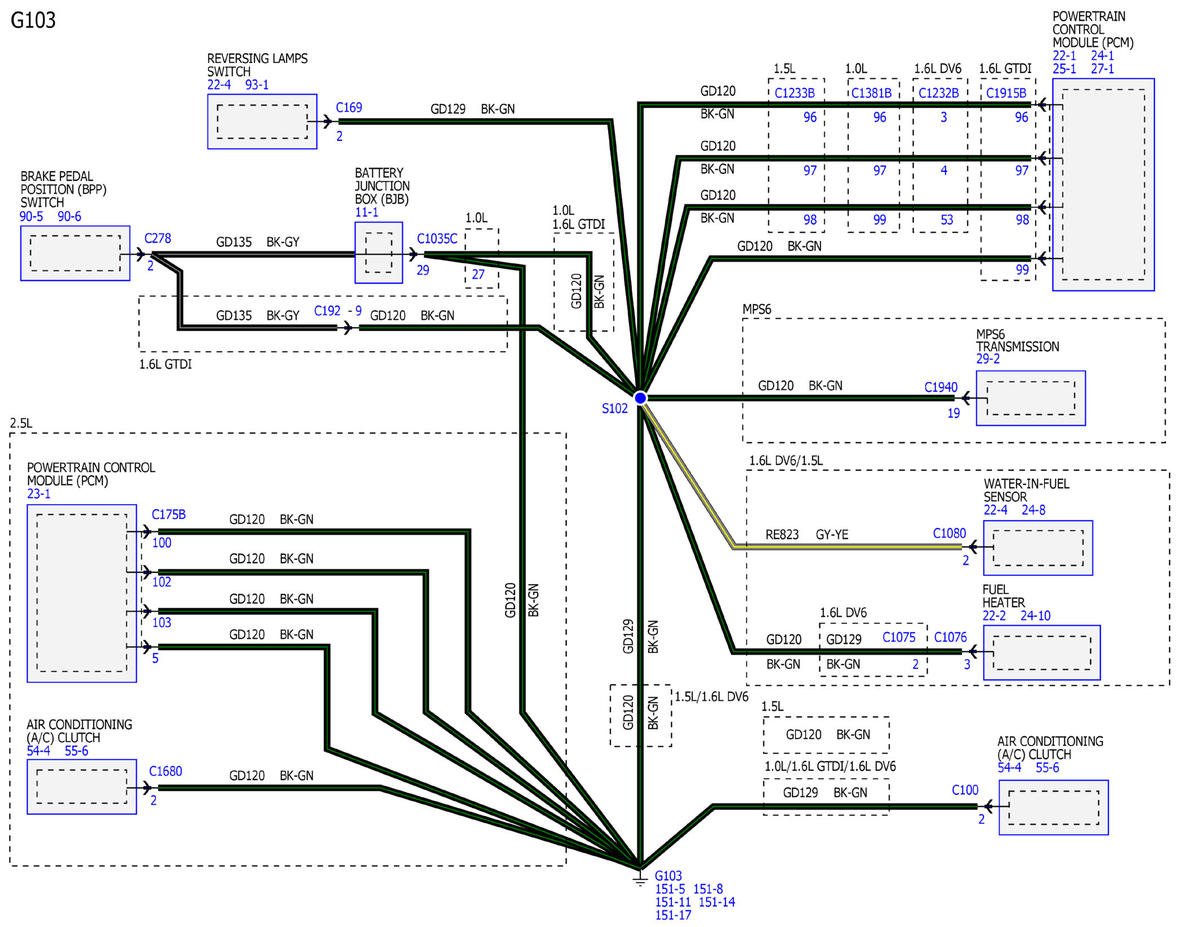

GFDWR19570Courtesy of FORD MOTOR COMPANY

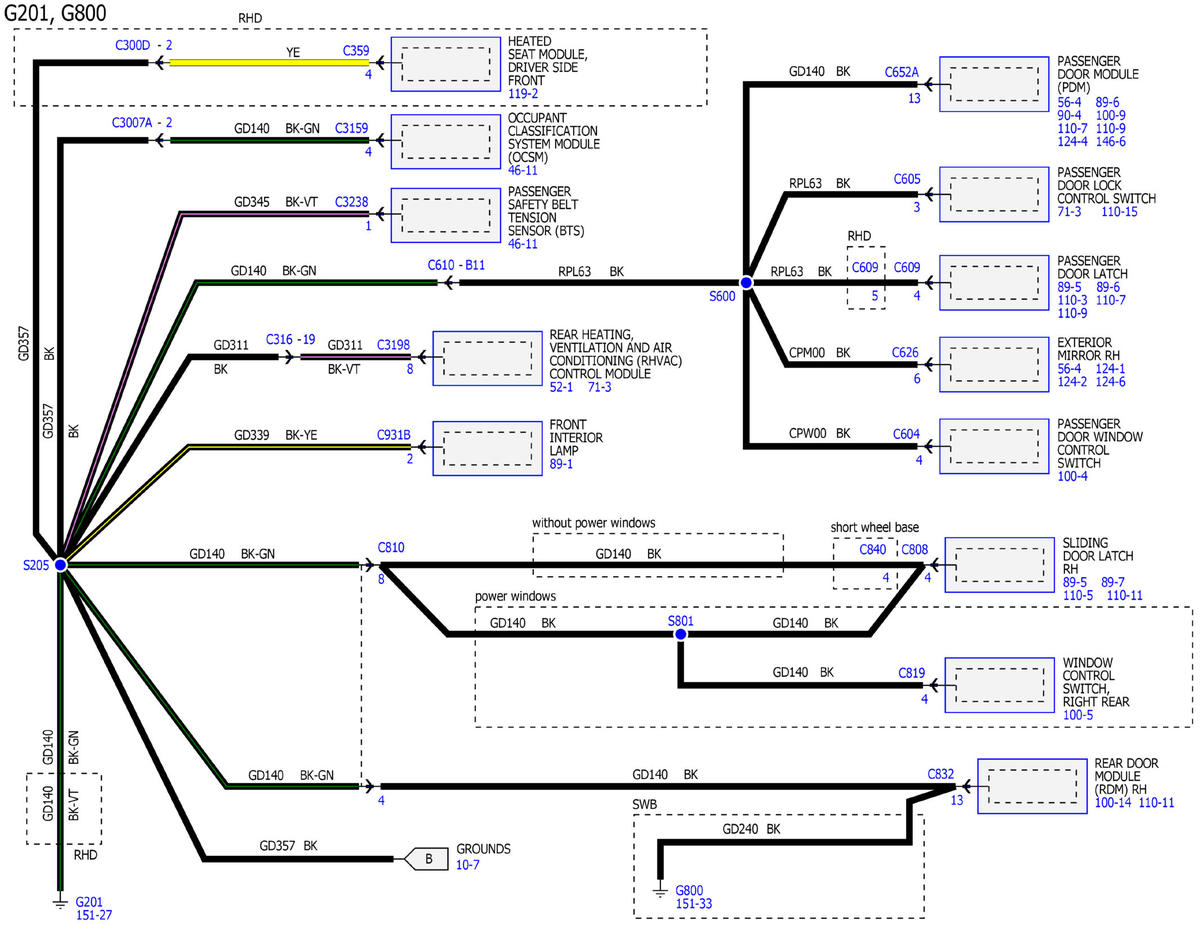

GFDWR19571Courtesy of FORD MOTOR COMPANY

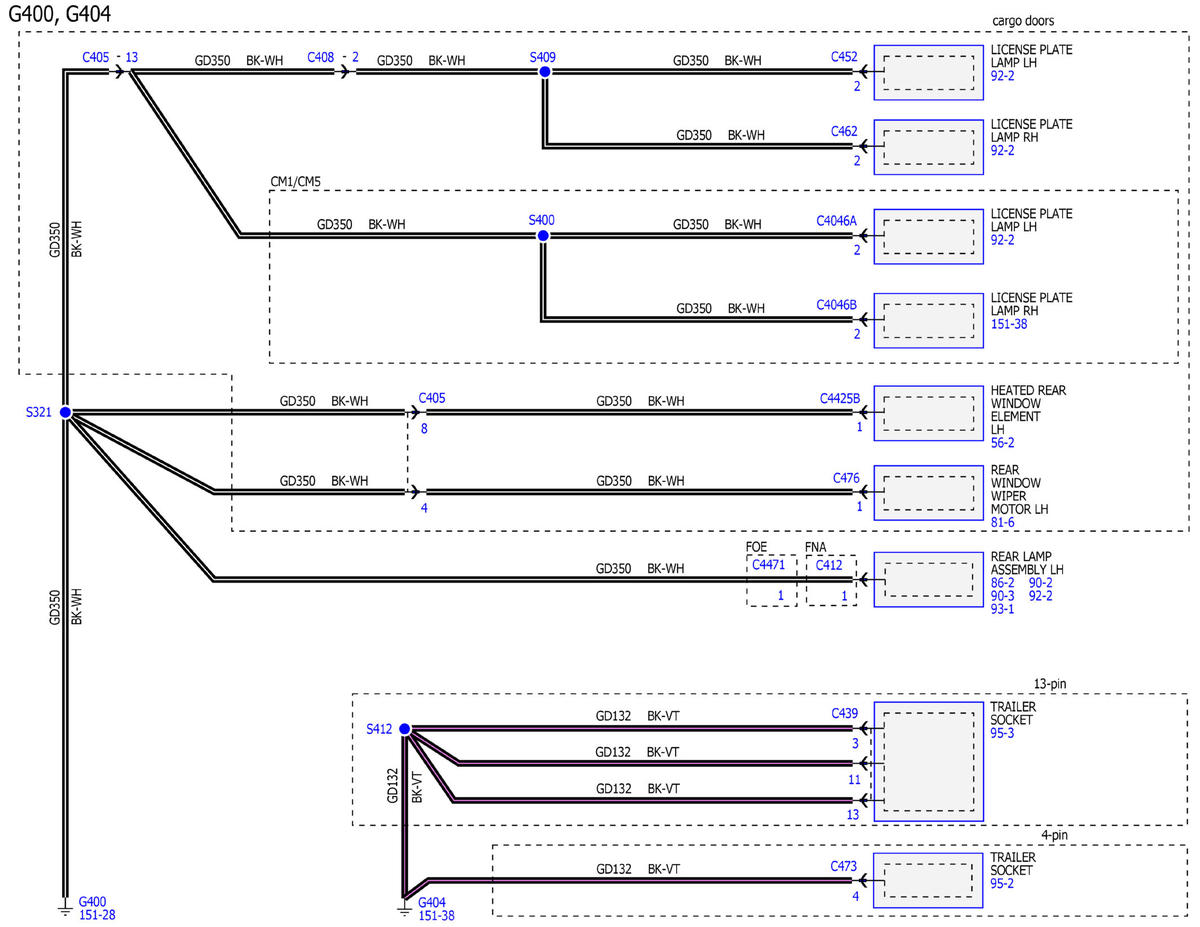

GFDWR19572Courtesy of FORD MOTOR COMPANY

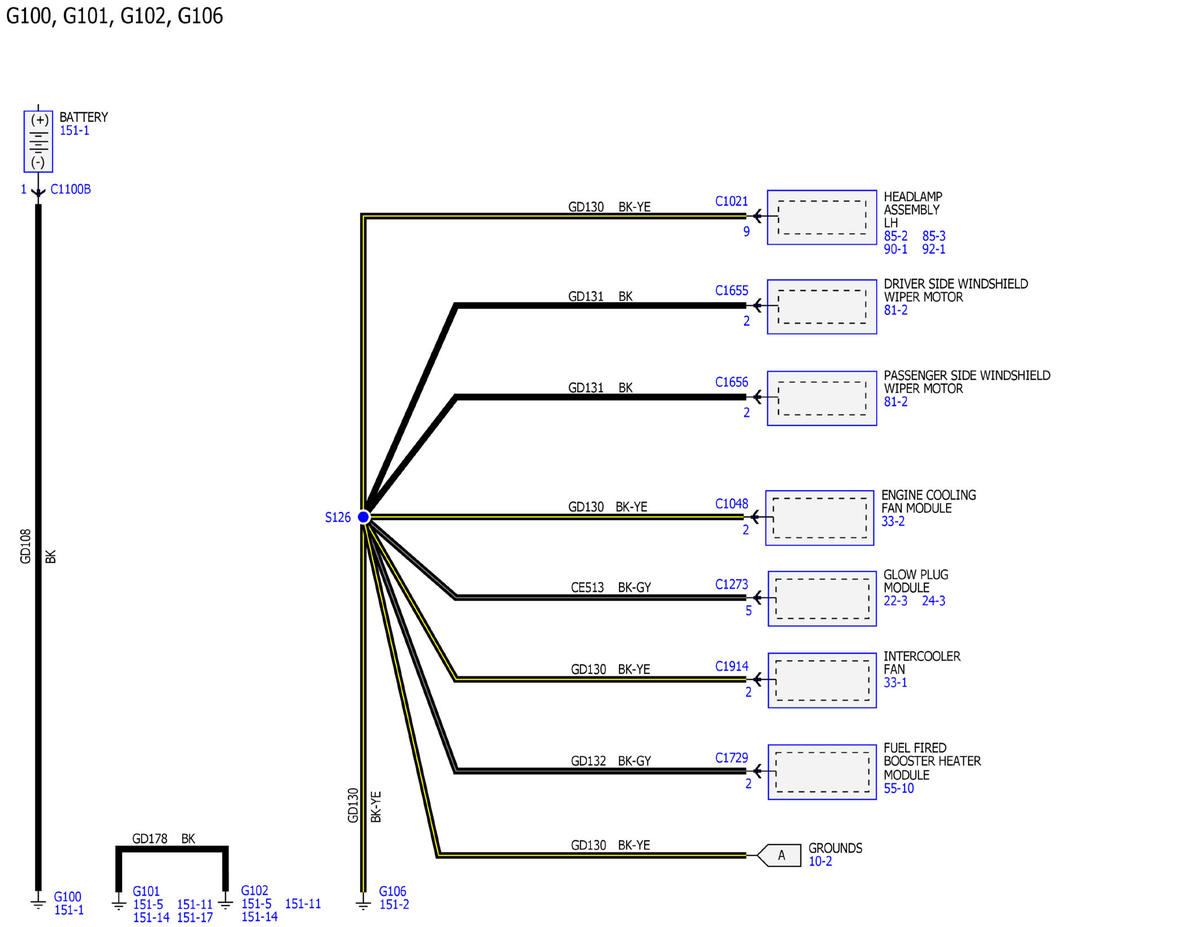

GFDWR19573Courtesy of FORD MOTOR COMPANY

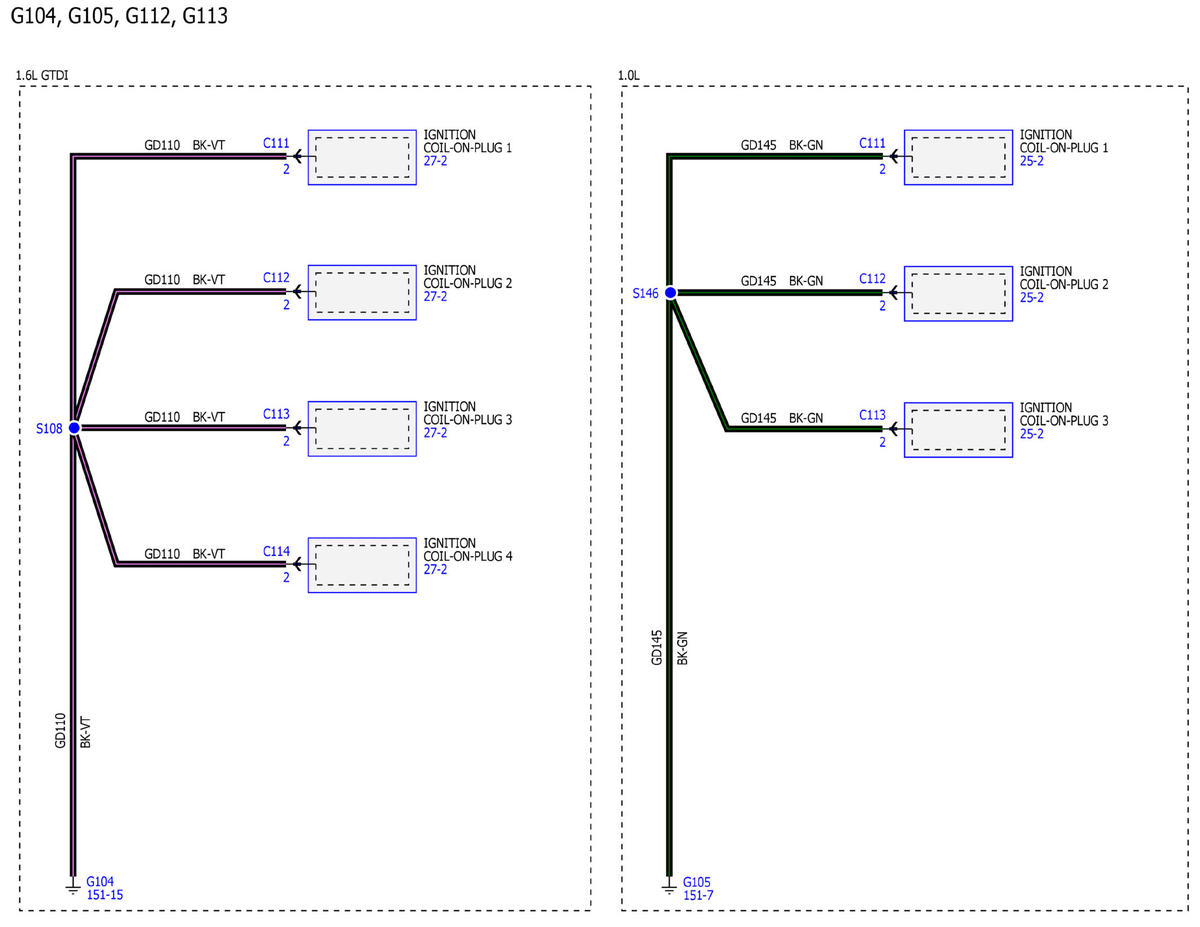

GFDWR19574Courtesy of FORD MOTOR COMPANY

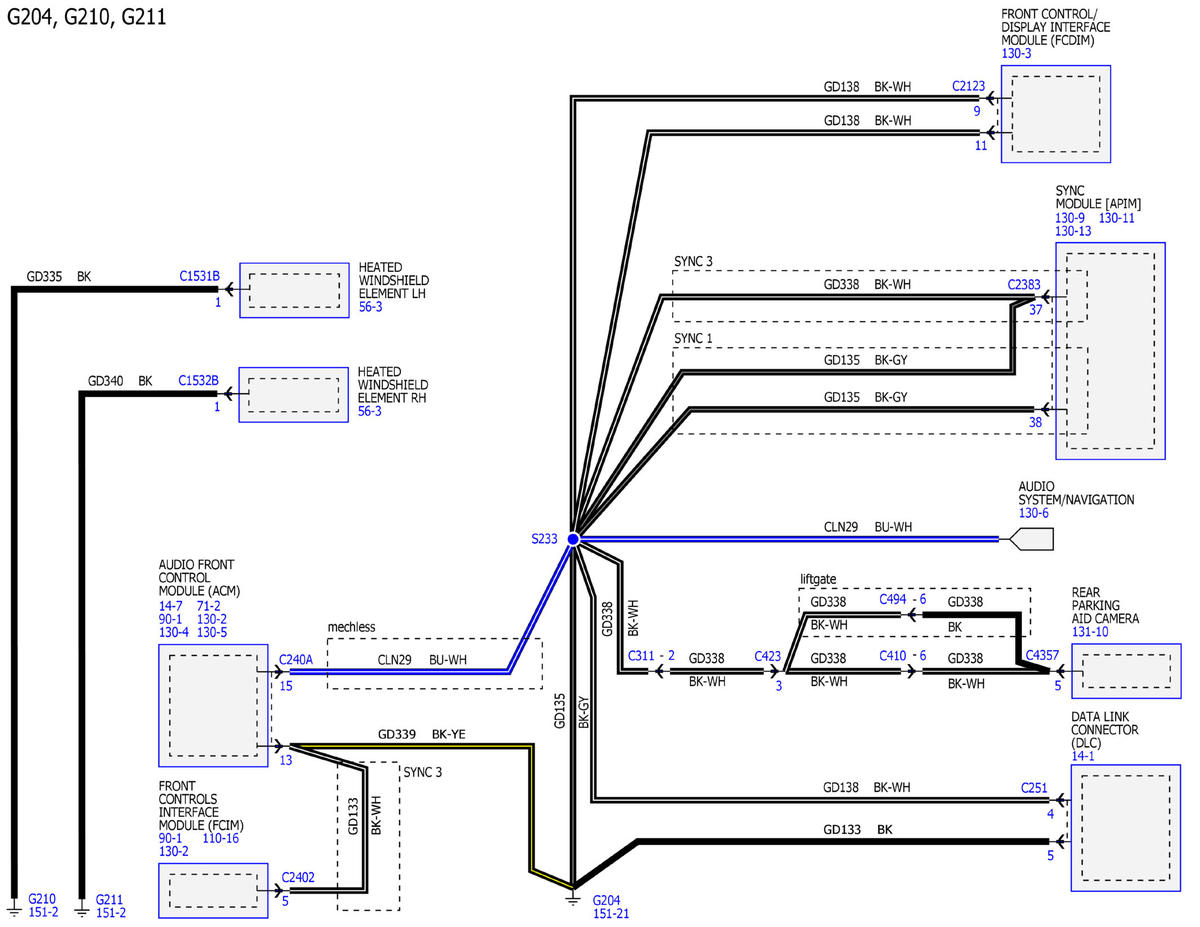

GFDWR19575Courtesy of FORD MOTOR COMPANY

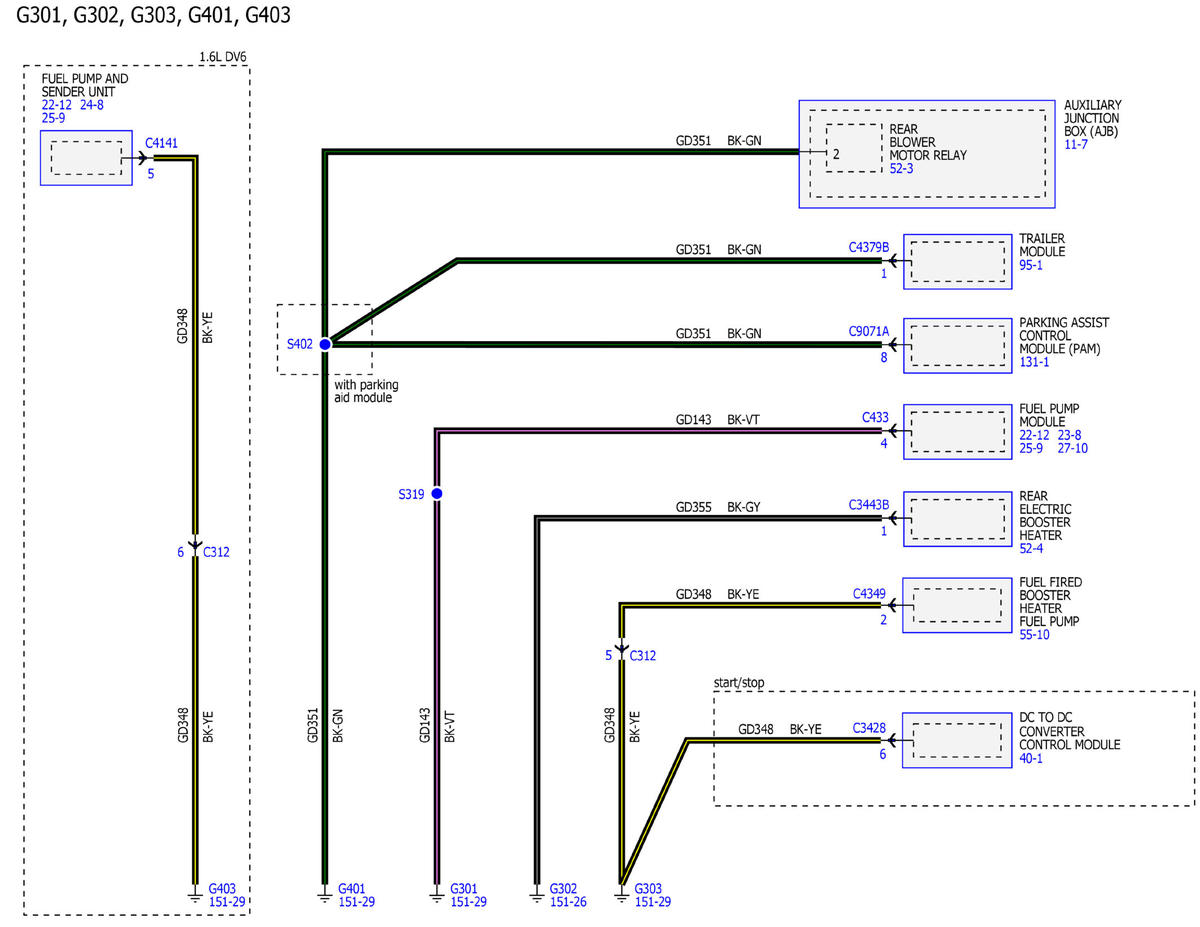

GFDWR19576Courtesy of FORD MOTOR COMPANY

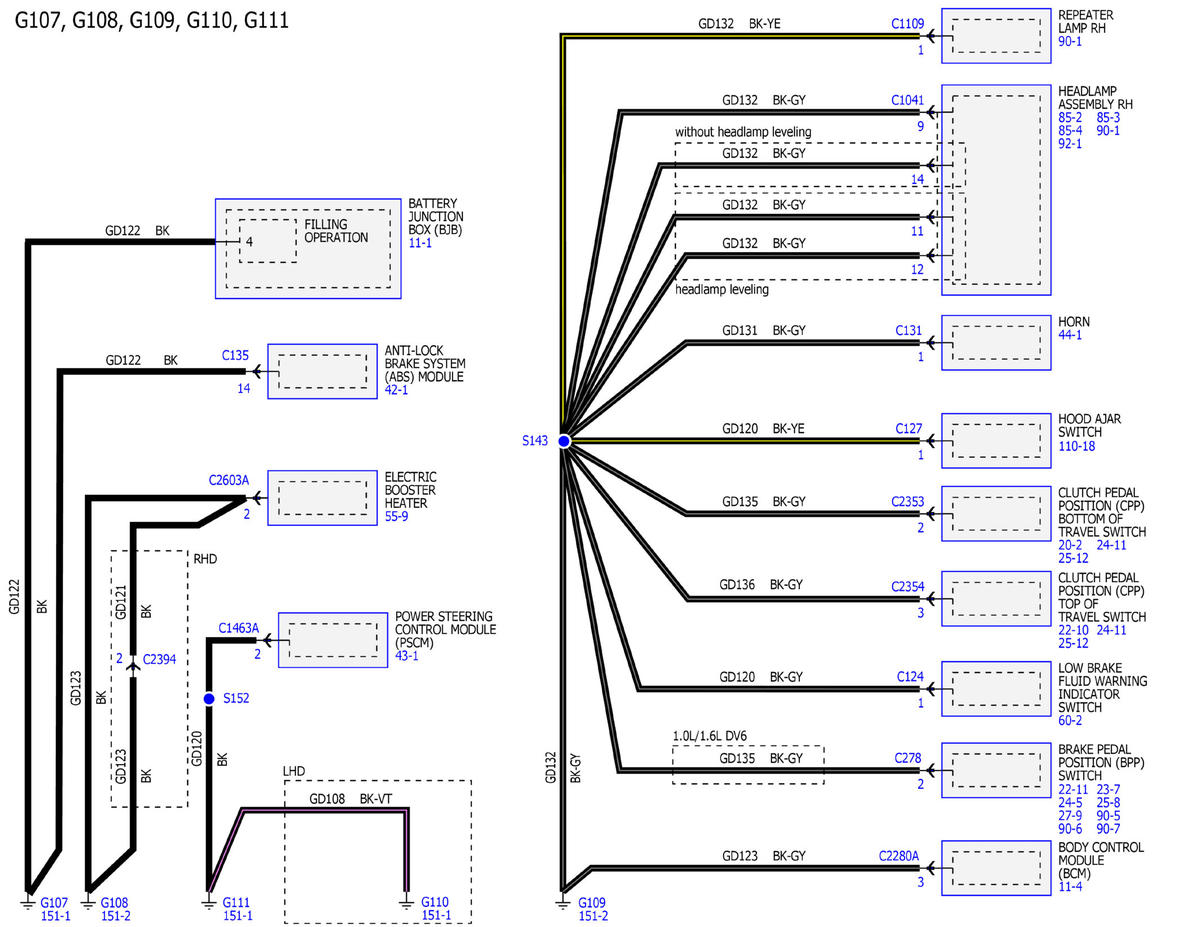

GFDWR19577Courtesy of FORD MOTOR COMPANY

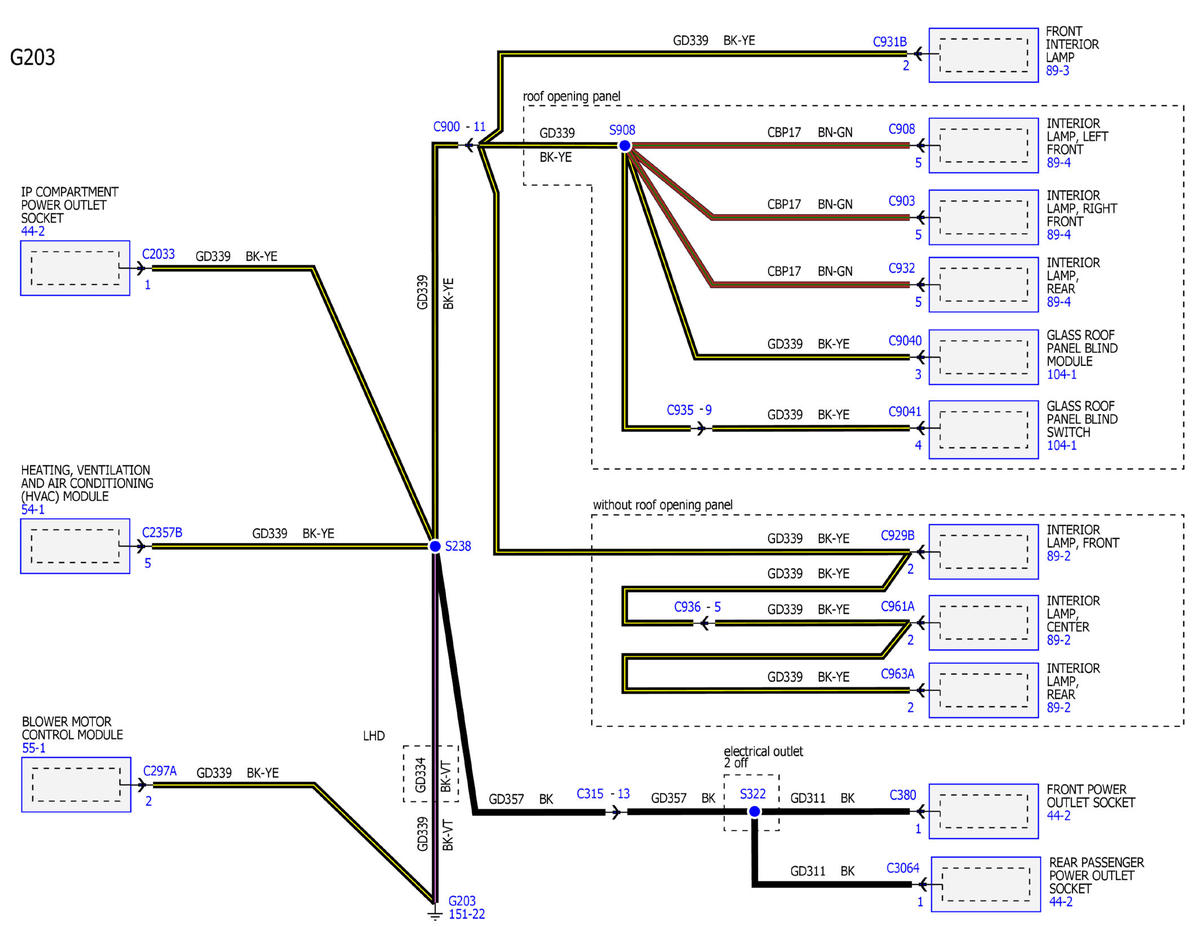

GFDWR19578Courtesy of FORD MOTOR COMPANY
