Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the driver airbag. Refer to: Driver Airbag .
NOTE: Make sure that the road wheels are in the straight ahead position.

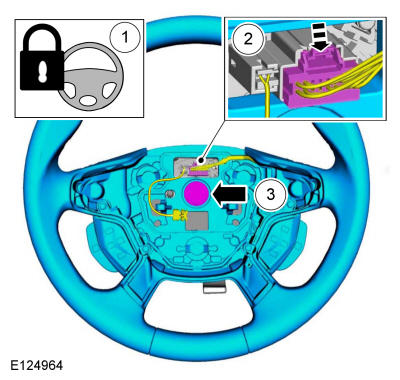

1. Lock the steering wheel.
2. Disconnect the steering wheel electrical connector.
3. Remove the bolt and the steering wheel.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the clockspring rotor does not rotate.

NOTE: Make sure that the clockspring pins are not bent or damaged.

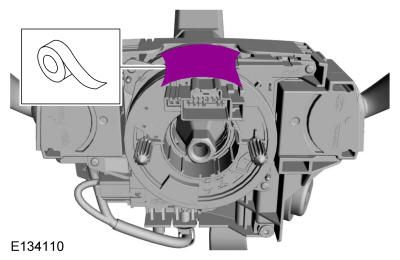

Tape the clockspring rotor to the outer housing to keep it from rotating. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY
