Possible Causes

Wiring, terminals or connectors
Network communication concern
SCCM
ABS Module

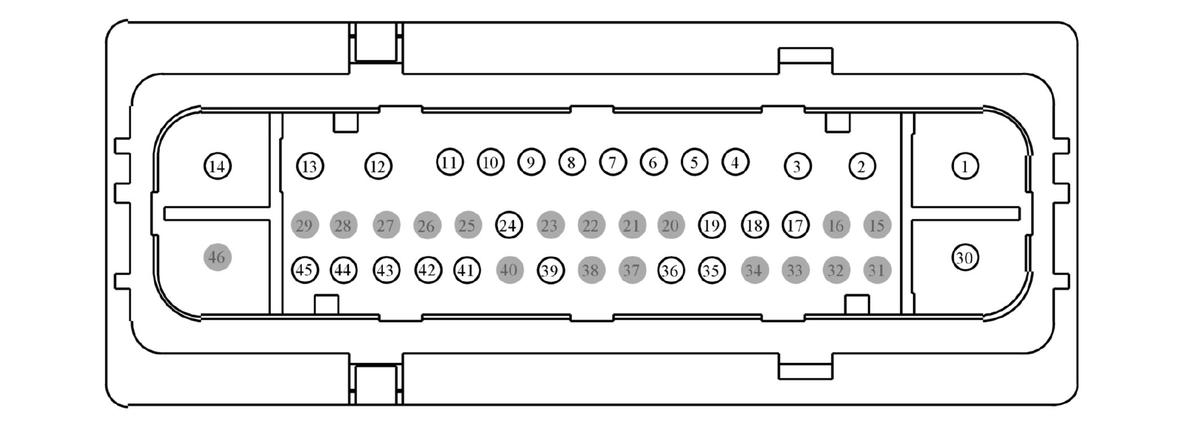

Fig 1: Antilock Braking System (ABS) Module Connector - C135

Courtesy of FORD MOTOR COMPANY

Harness Side

Fig 2: Steering Column Control Module-A (SCCM-A) Connector - C226A

Courtesy of FORD MOTOR CO.

Harness Side

BV1: CHECK THE COMMUNICATION NETWORK

Ignition ON, engine OFF.
Retrieve the continuous memory DTCs.
Does the SCCM pass the Network Test?

Yes	No
RETRIEVE and RECORD all SCCM DTCs. REFER to the appropriate Steering Wheel And Column Electrical Components article. If there are no DTCs in the SCCM, Go to BV2.	DIAGNOSE the no communication with the SCCM. REFER to the appropriate Electrical Distribution article.

BV2: RECHECK THE ABS MODULE DTCS

Carry out the ABS self-test.

Record all ABS module DTCs.
Clear the ABS DTCs.
Ignition OFF.
Ignition ON, engine OFF.
Test drive the vehicle over 20 km/h (12 mph) and make at least one left turn and one right turn.

Carry out the ABS self-test.

Are any of the DTCS listed in the Fault Setting Conditions Table retrieved again?

Yes	No
Go to BV3.	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

BV3: REVIEW THE RECORDED DTCS FROM THE ABS MODULE SELF-TEST

Check the DTCs recorded from the ABS module self-test.
Was DTC U3003:16 or U3003:17 recorded?

Yes	No
For DTC U3003:16, GO to PINPOINT TEST A . For DTC U3003:17, GO to PINPOINT TEST F .	Go to BV4.

BV4: CHECK FOR DTCS IN THE SCCM

Carry out the SCCM self-test.

Record all DTCs from the SCCM self-test.
Are any DTCs present in the SCCM?

Yes	No
DIAGNOSE all SCCM DTCs. REFER to the appropriate Steering Wheel And Column Electrical Components article.	Go to BV5.

BV5: CHECK FOR OTHER CAUSES OF COMMUNICATION NETWORK CONCERN

NOTE: If new modules were installed prior to the DTC being set, the module configuration can be incorrectly set during the PMI or the PMI may not have been carried out.

Check the vehicle service history for recent service actions related to the SCCM or the ABS module. If recent service history is found:
- Verify the correct replacement module was installed. HVBOM may be used to verify correct part fitment.
- Verify the configuration of replacement module was correct. Re-configure the module using as-built data if prior configuration is suspect.
- Verify the module was not obtained from a like vehicle and installed into customer vehicle. Return the swapped module to source vehicle and obtain new replacement module.
Operate the system and determine if the observable symptom is still present.
Is the observable symptom still present?

Yes	No
Go to BV6.	The system is operating correctly at this time. The concern may have been due to incorrect parts replacement procedures or incorrect module configuration.

BV6: CHECK FOR COMMUNICATION DTCS IN OTHER MODULES

Ignition ON, engine OFF.
Clear the ABS DTCs.
Retrieve the continuous memory DTCs.
Is DTC U0212:xx, U0428:xx or U0429:xx set in 1 or more modules in addition to the ABS module?

Yes	No
Go to BV8.	Go to BV7.

BV7: VERIFY ABS MODULE OPERATION

NOTE: The battery must be removed to access the ABS module electrical connector.

Ignition OFF.
Remove the battery. Refer to the appropriate procedure in the appropriate Battery, Mounting and Cables article.
ABS Module connector disconnected. (C135)
SCCM_A connector disconnected. (C226A)
Using a good light source, inspect all disconnected electrical connectors for the following:
- corrosion - install new connector or terminal and clean the module pins
- damaged or bent pins - install new terminals or pins
- pushed-out pins - install new pins as necessary
- spread terminals - install new terminals as necessary
SCCM_A connector connected. (C226A) Make sure the connector seats and latches correctly.
ABS Module connector connected. (C135) Make sure the connector seats and latches correctly.
Install the battery. Refer to the appropriate procedure in the appropriate Battery, Mounting and Cables article.
Operate the system and determine if the concern is still present.
Is the concern still present?

Yes	No
INSTALL a new ABS module. CHECK OASIS for any service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no services articles address this concern, INSTALL a new ABS module. REFER to the appropriate Anti-Lock Brake System (ABS) and Stability Control article. ORDER a replacement ABS module and INCLUDE the RVC on the form. If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form. When complete, SELECT the "X" in the top right corner to CLOSE this procedure and RETURN to the PTS web site.	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues. If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form. When complete, SELECT the "X" in the top right corner to CLOSE this procedure and RETURN to the PTS web site.

Yes

INSTALL a new ABS module.
CHECK OASIS for any service articles: TSB, GSB, SSM or FSA.
If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions.
If no services articles address this concern, INSTALL a new ABS module. REFER to the appropriate Anti-Lock Brake System (ABS) and Stability Control article.
ORDER a replacement ABS module and INCLUDE the RVC on the form.
If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.
When complete, SELECT the "X" in the top right corner to CLOSE this procedure and RETURN to the PTS web site.

The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues.
If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.
When complete, SELECT the "X" in the top right corner to CLOSE this procedure and RETURN to the PTS web site.

BV8: VERIFY SCCM OPERATION

NOTE: The battery must be removed to access the ABS module electrical connector.

Ignition OFF.
Remove the battery. Refer to the appropriate procedure in the appropriate Battery, Mounting and Cables article.
SCCM_A connector disconnected. (C226A)
ABS Module connector disconnected. (C135)
Using a good light source, inspect all disconnected electrical connectors for the following:
- corrosion - install new connector or terminal and clean the module pins
- damaged or bent pins - install new terminals or pins
- pushed-out pins - install new pins as necessary
- spread terminals - install new terminals as necessary
ABS Module connector connected. (C135) Make sure the connector seats and latches correctly.
SCCM_A connector connected. (C226A) Make sure the connector seats and latches correctly.
Install the battery. Refer to the appropriate procedure in the appropriate Battery, Mounting and Cables article.
Operate the system and verify the concern is still present.
Is the concern still present?

Yes	No
INSTALL a new SCCM. CHECK OASIS for any service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SCCM. REFER to the appropriate Steering Wheel And Column Electrical Components article.	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues. If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form. When complete, SELECT the "X" in the top right corner to CLOSE this procedure and RETURN to the PTS web site.
