Active Grille Shutter: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

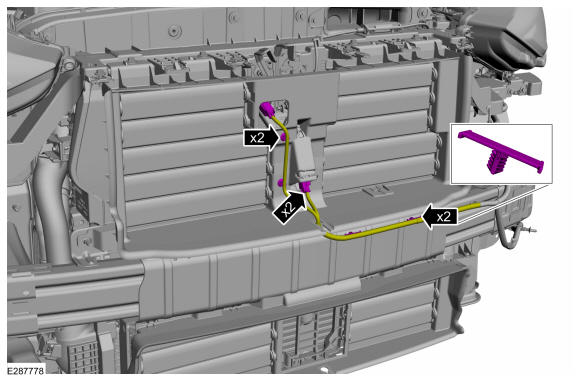

- Disconnect the electrical connectors and the wire harness retainers.

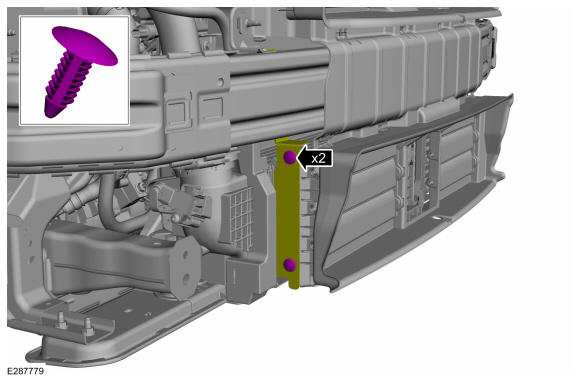

- On both sides. Remove the push pins and position aside the air deflector.

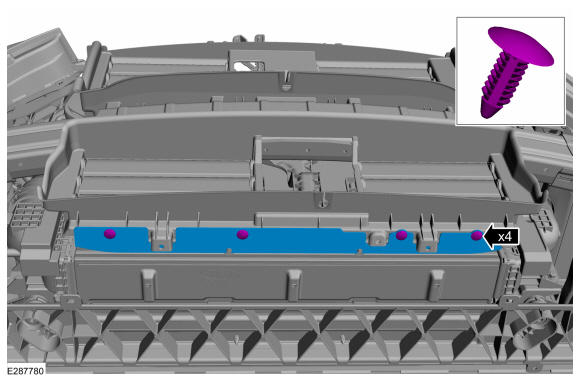

- Remove the push pins and the air deflector.
-
NOTE: Components not shown for clarity.

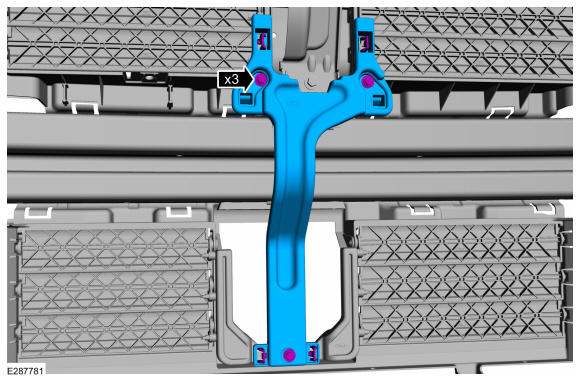

Release the retaining tabs, remove the bolts and the spacer assembly.
Torque:
27 lb.in (3 Nm)

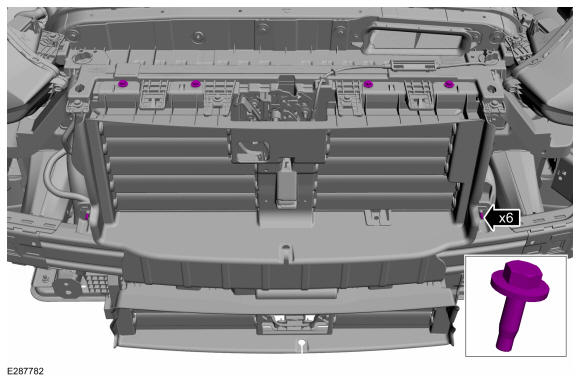

- Remove the bolts.
Torque:
80 lb.in (9 Nm)

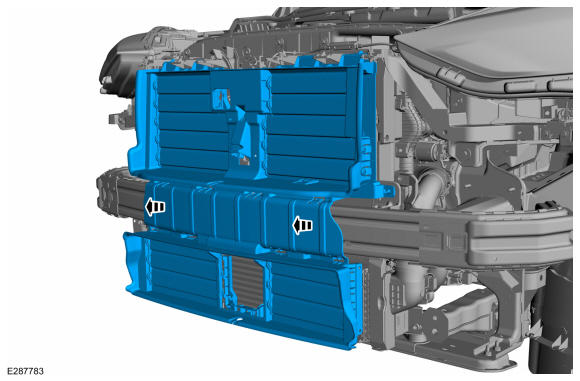

- Remove the active grille shutter.
