Cowl Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel grille. Refer to: Cowl Panel Grille .

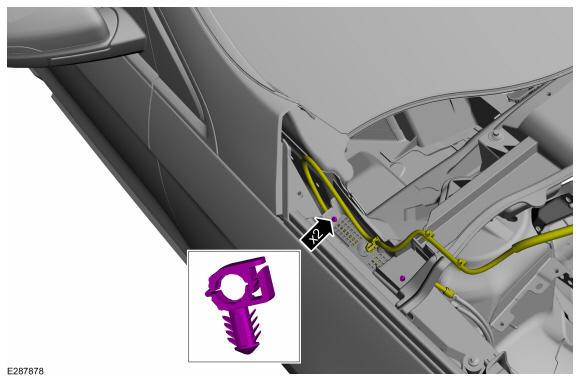

Release the retainers and position the windshield washer hose aside.

Courtesy of FORD MOTOR COMPANY

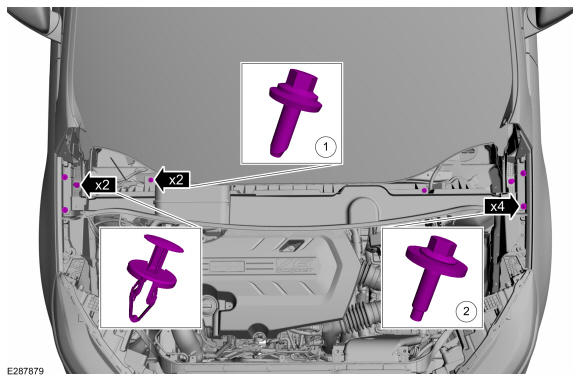

Remove the pin-type retainers and the bolts.
Torque:

1: 80 lb.in (9 Nm) 2: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

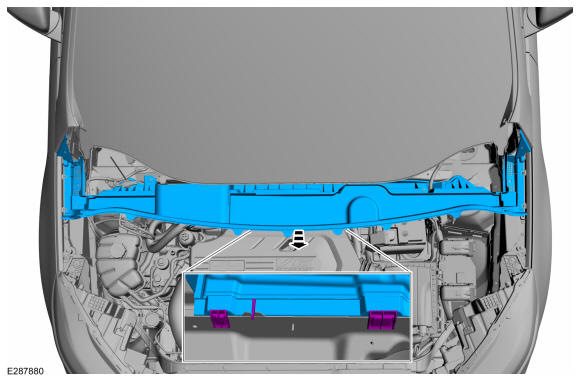

Release the tabs and remove the cowl panel.

Courtesy of FORD MOTOR COMPANY
