Fender Splash Shield: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the wheel and tire. Refer to: Wheel and Tire .

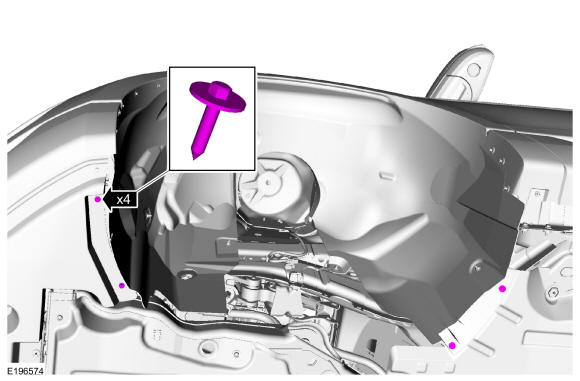

Remove the bolts.
Torque:

13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

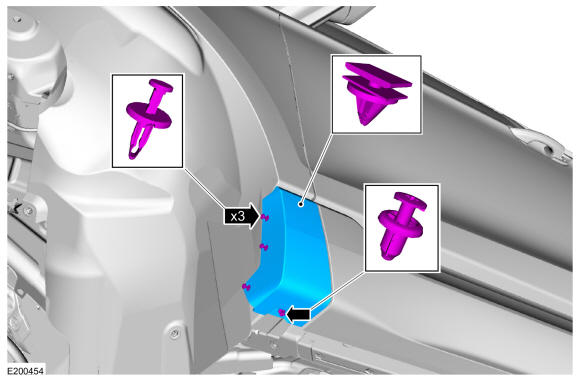

Remove the retainers and the rocker panel moulding end cap.

Courtesy of FORD MOTOR COMPANY

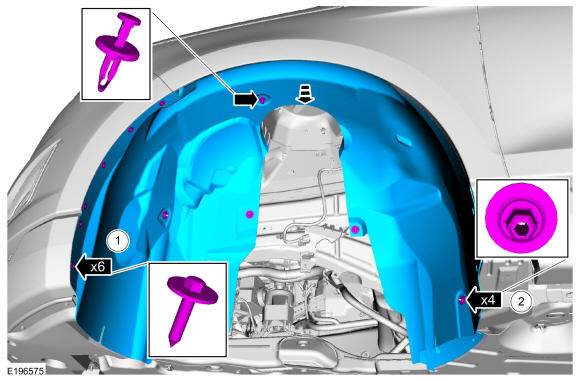

1. Remove the bolts.
  Torque:

  13 lb.in (1.5 Nm)
2. Remove the nuts.
  Torque:

  22 lb.in (2.5 Nm)
3. Remove the retainer and the fender splash shield.

Courtesy of FORD MOTOR COMPANY
