Removal And Installation: Hood: Removal

NOTE: Removal steps in this procedure may contain installation details.

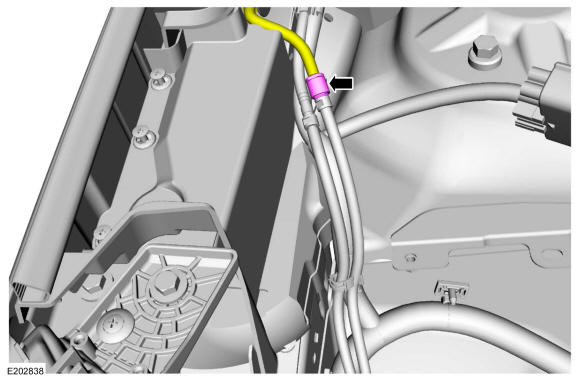

Detach the windshield washer hose coupling.

Courtesy of FORD MOTOR COMPANY

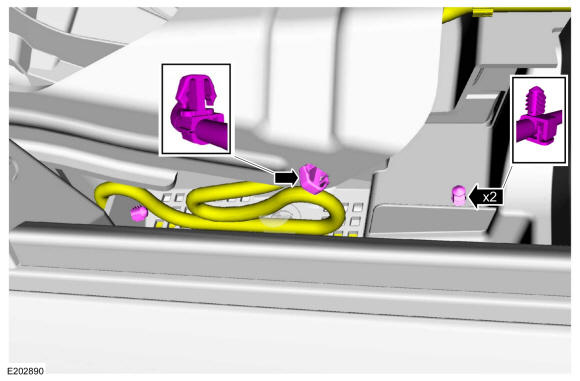

Detach the windshield washer hose retainers from the RH side hood hinge and cowl panel.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

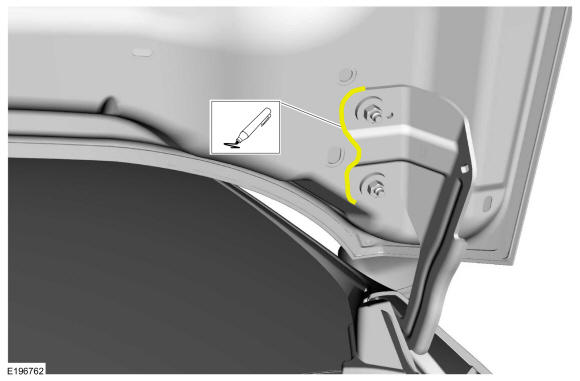

Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

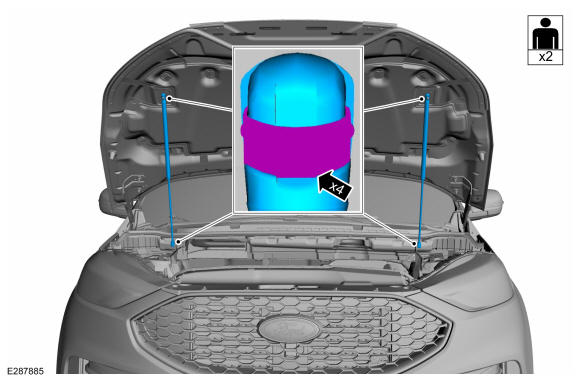

NOTE: An assistant is necessary to support the hood.

Remove the clips and the hood struts.

Courtesy of FORD MOTOR COMPANY

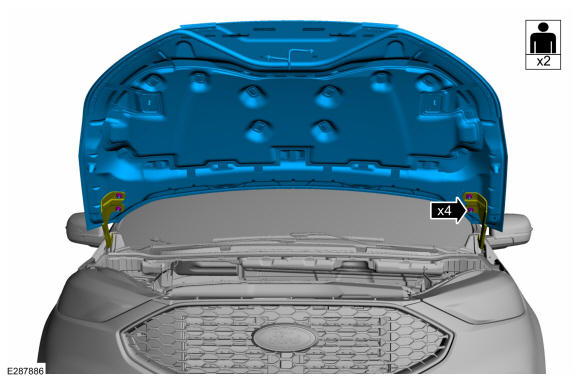

NOTE: An assistant is necessary for the support and removal of the hood.

Remove the nuts and the hood.

Torque:

18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

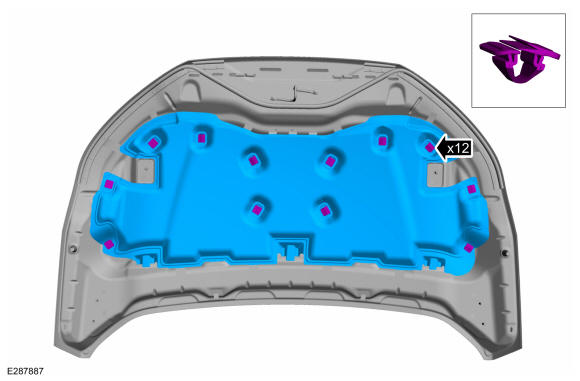

Remove the retainers and the hood insulation.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

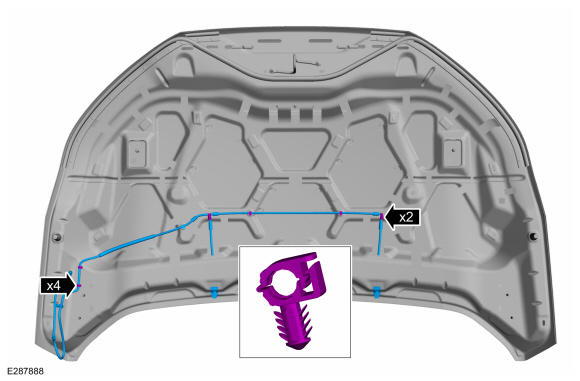

Release the retainers, couplings and remove the windshield washer hose and the washer jets.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the nuts and the striker latch.

Torque:

80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

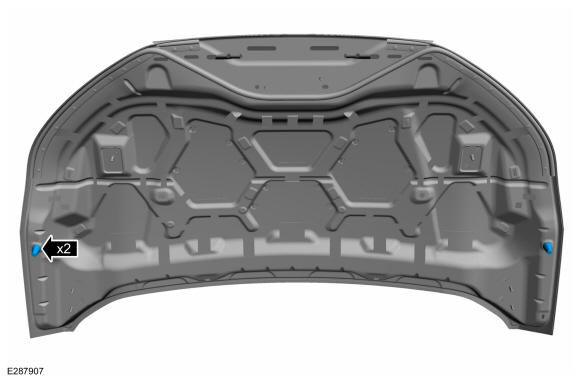

Remove the hood bump stop rubbers.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

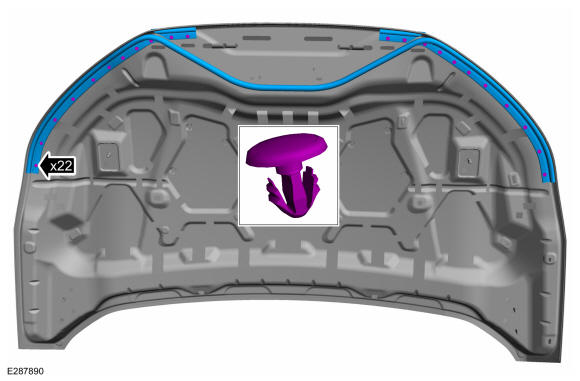

Remove the retainers and the hood pad assembly.

Courtesy of FORD MOTOR COMPANY
