Connector Repair Procedures

Fig 1: Connector Repair Procedures (1 Of)
GFDWR52030Courtesy of FORD MOTOR COMPANY

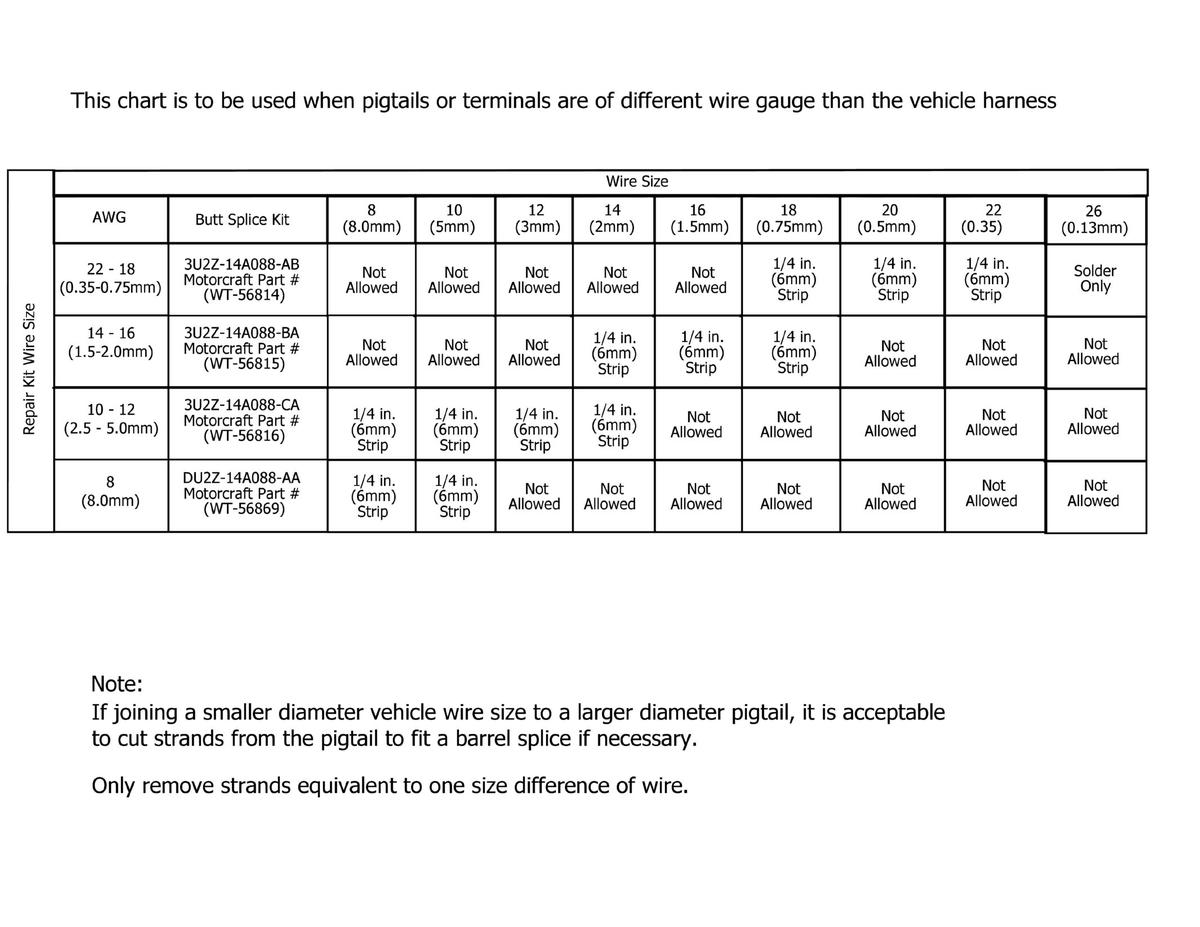

Fig 2: Chart For Pigtails Or Terminals With Different Gauges
GFDWR52025Courtesy of FORD MOTOR COMPANY

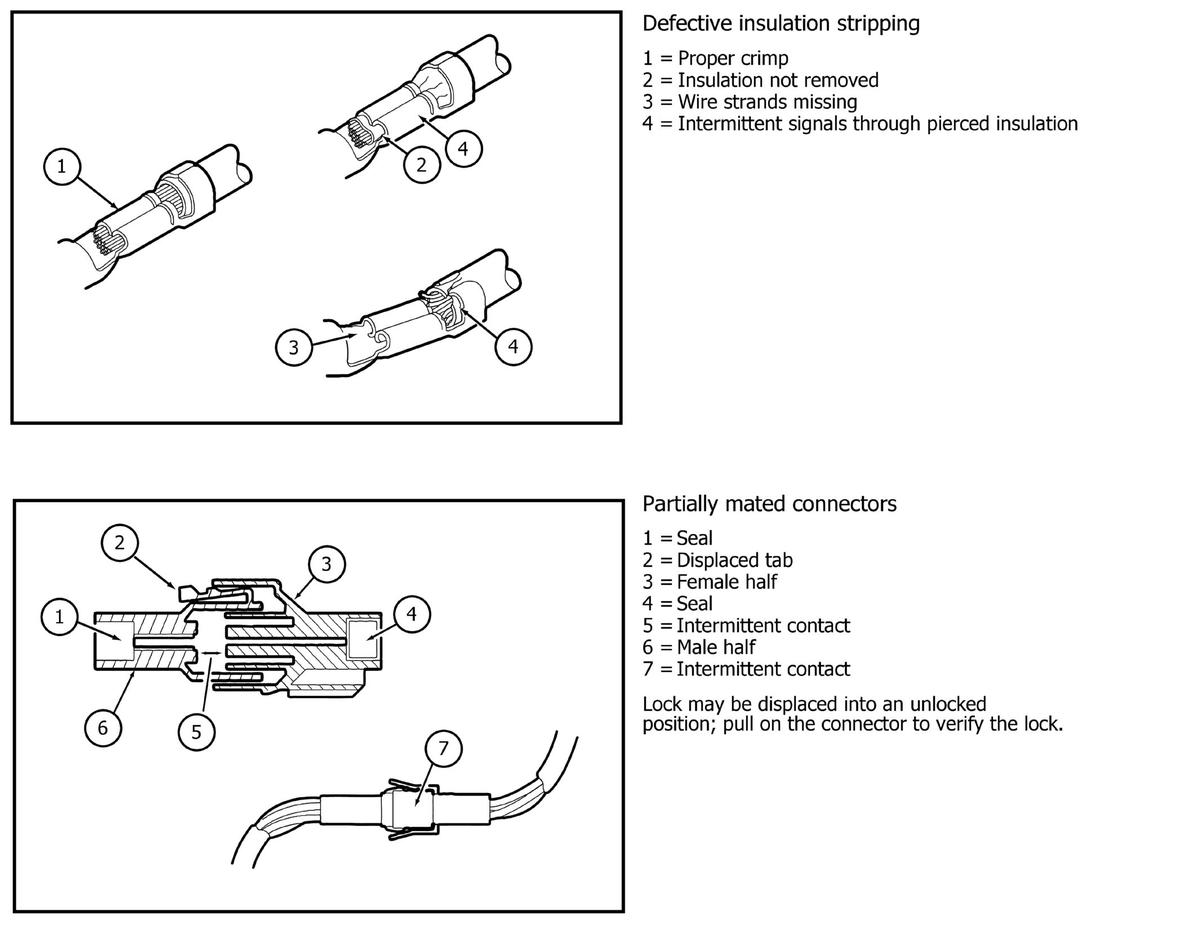

Fig 3: Defective Insulation Stripping & Partially Mated Connectors
GFDWR52028Courtesy of FORD MOTOR COMPANY

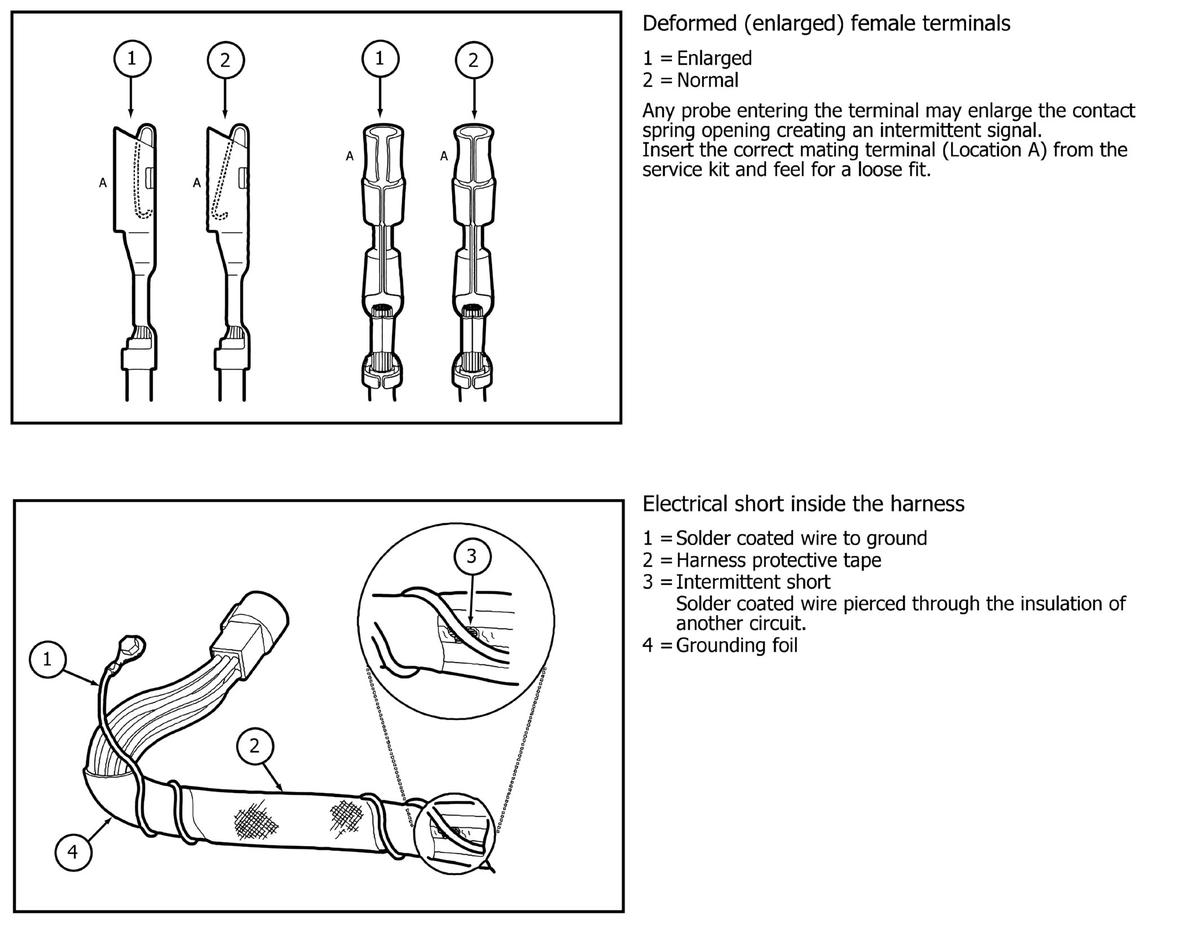

Fig 4: Deformed (Enlarged) Female Terminals & Electrical Short Inside The Harness
GFDWR52031Courtesy of FORD MOTOR COMPANY

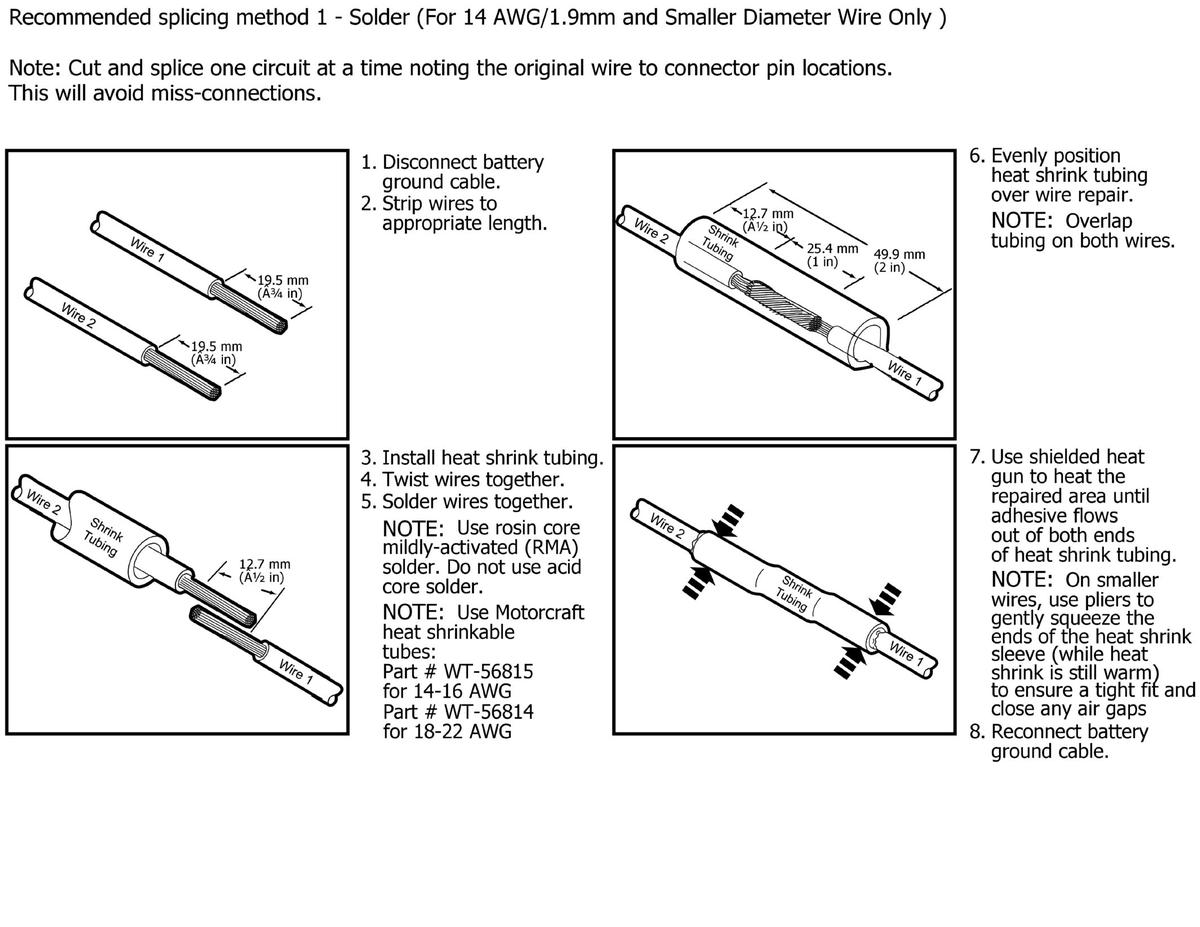

Fig 5: Recommended Splicing Method 1
GFDWR52032Courtesy of FORD MOTOR COMPANY

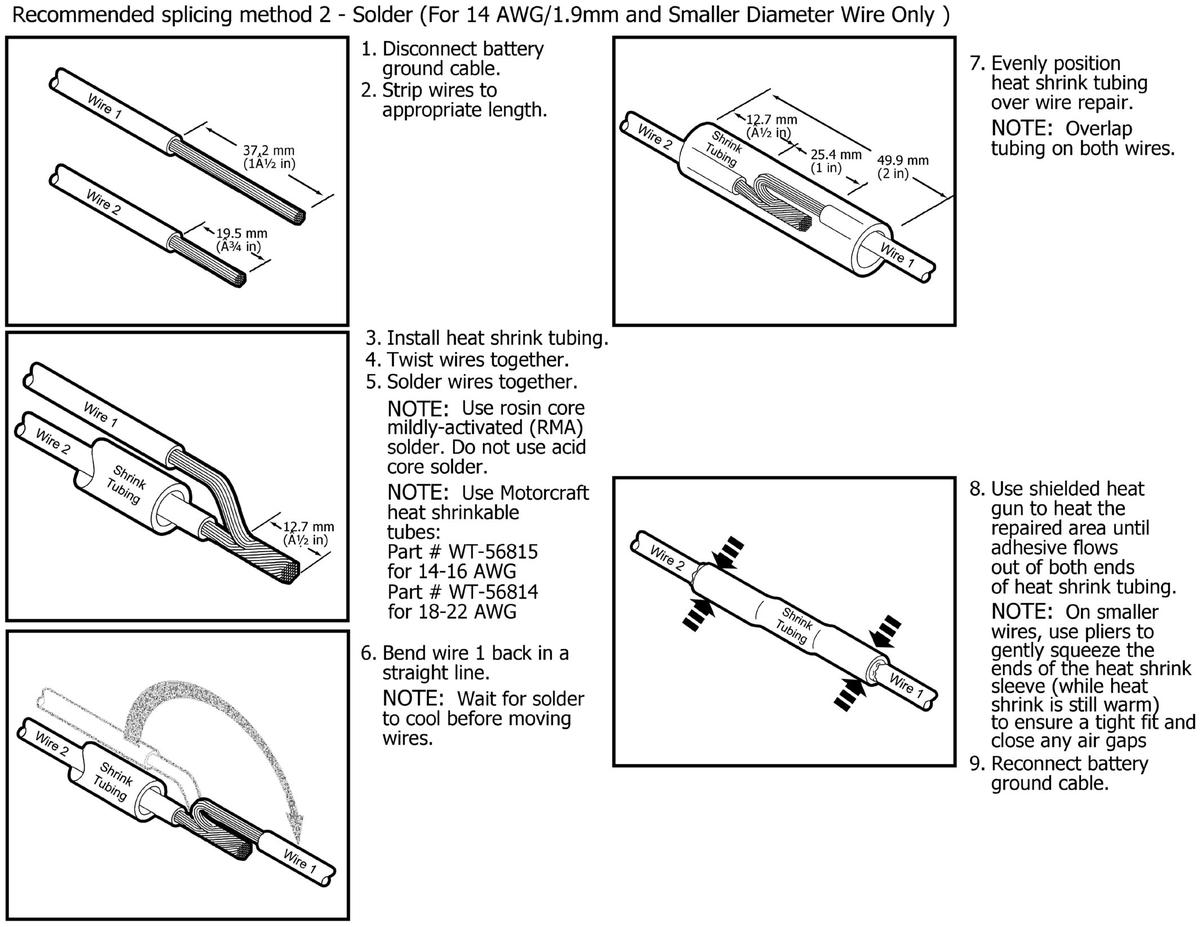

Fig 6: Recommended Splicing Method 2
GFDWR52029Courtesy of FORD MOTOR COMPANY

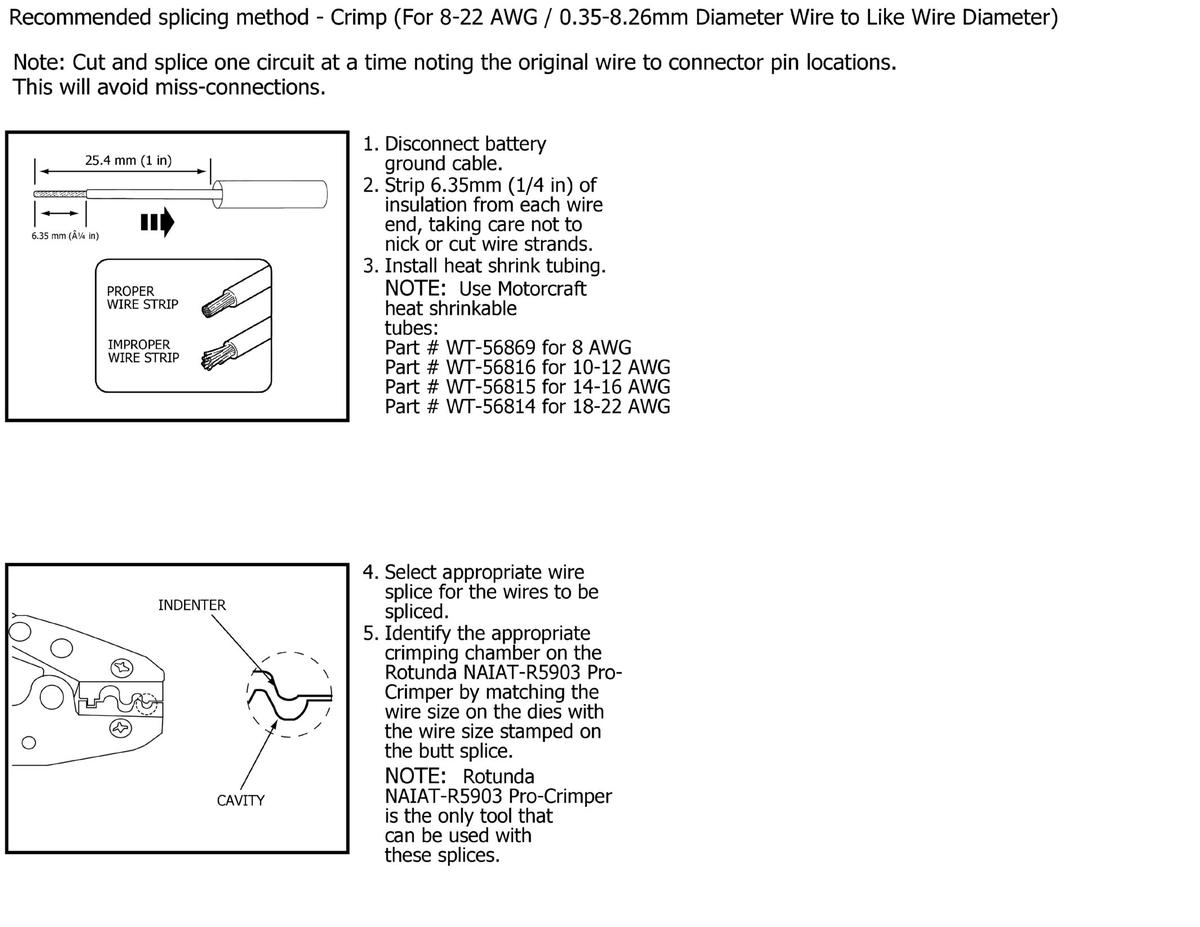

Fig 7: Recommended Splicing Method - Crimp (1 Of 2)
GFDWR52027Courtesy of FORD MOTOR COMPANY

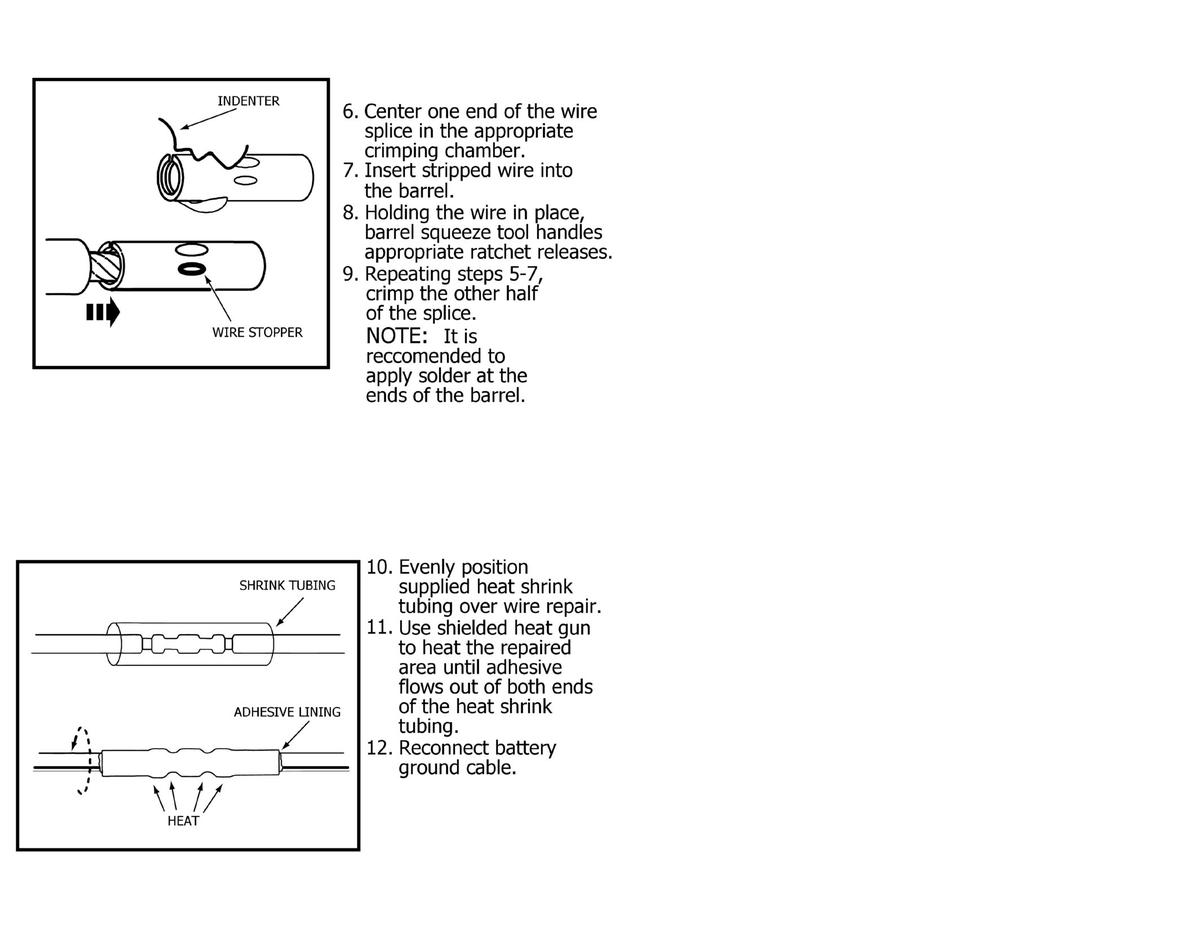

Fig 8: Recommended Splicing Method - Crimp (2 Of 2)
GFDWR52026Courtesy of FORD MOTOR COMPANY

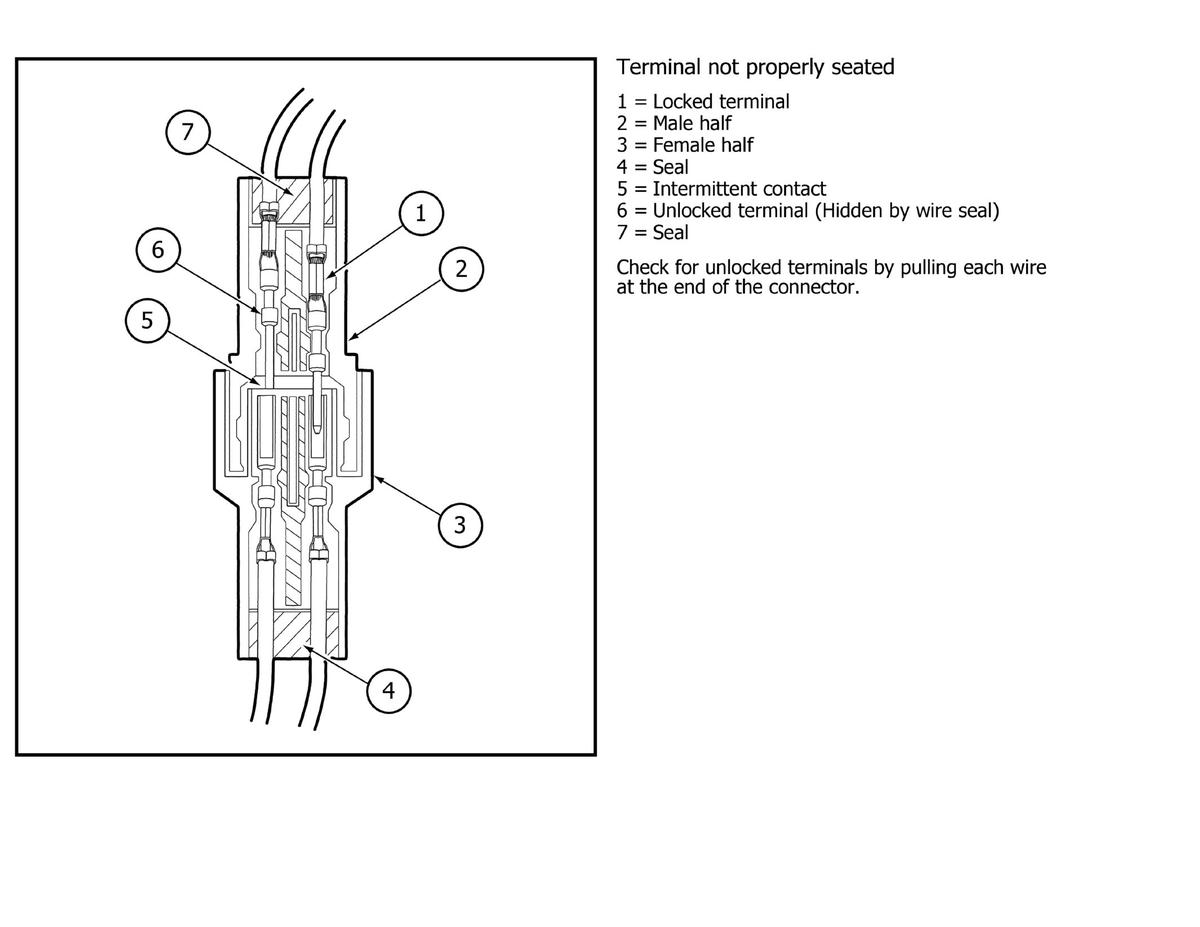

Fig 9: Terminal Not Properly Seated
GFDWR52024Courtesy of FORD MOTOR COMPANY
