Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

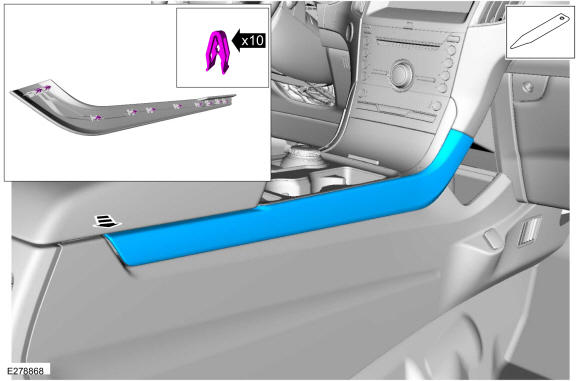

  1. Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover
    GFD384478Courtesy of FORD MOTOR COMPANY

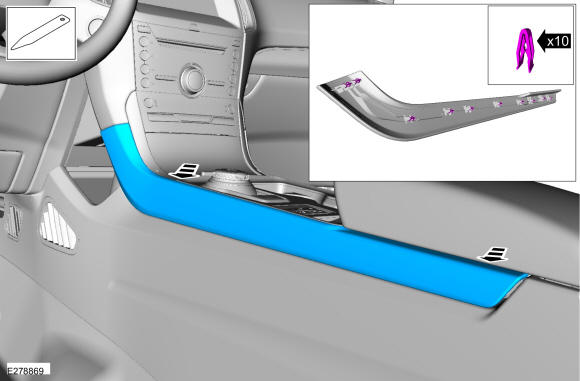

  2. Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover
    GFD384479Courtesy of FORD MOTOR COMPANY

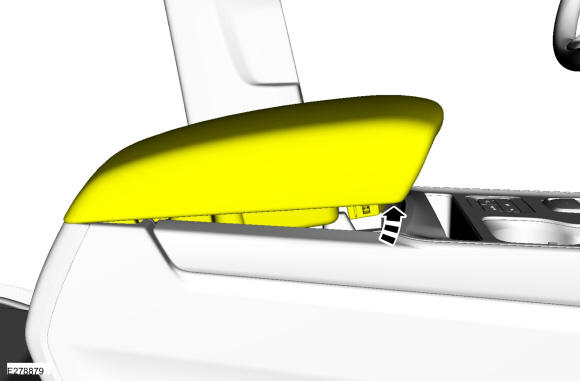

  3. Open floor console armrest.
    GFD384480Courtesy of FORD MOTOR COMPANY

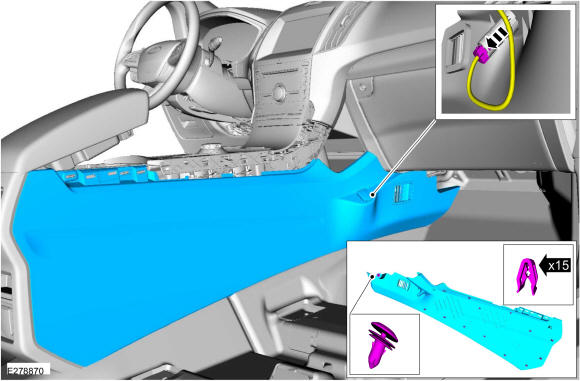

  4. Release the clips, push pin and remove the RH floor console side trim panel.

    • Disconnect the electrical connector.

    GFD384481Courtesy of FORD MOTOR COMPANY

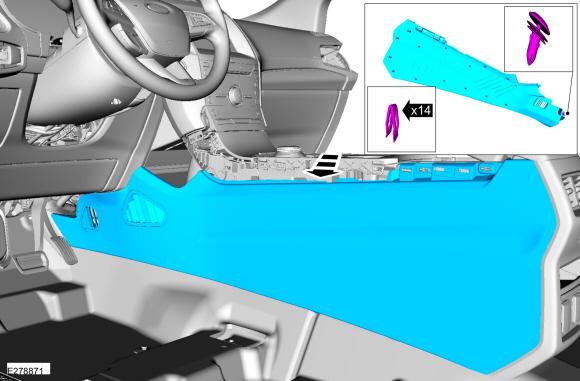

  5. Release the clips, push pin and remove the LH floor console side trim panel.
    GFD384482Courtesy of FORD MOTOR COMPANY

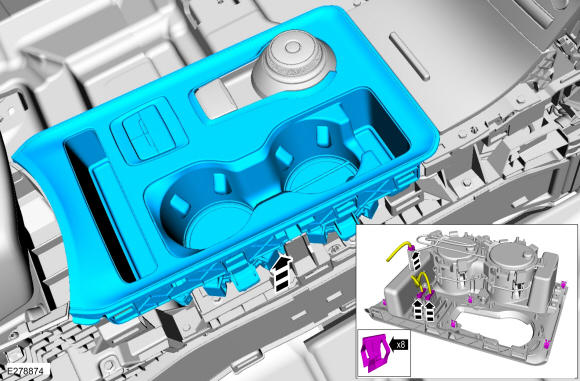

  6. Release the clips and remove the floor console upper trim panel.

    • Disconnect the electrical connectors.

    GFD384483Courtesy of FORD MOTOR COMPANY

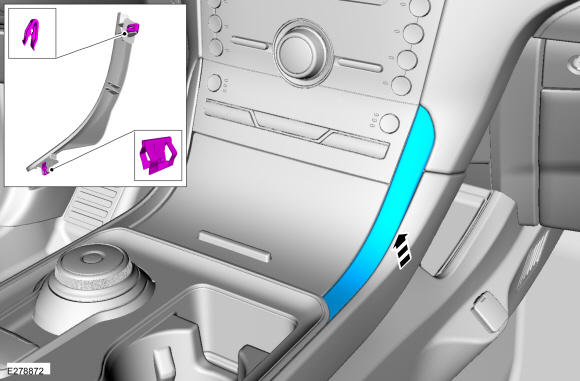

  7. Release the clips and remove the RH finish panel.
    GFD384484Courtesy of FORD MOTOR COMPANY

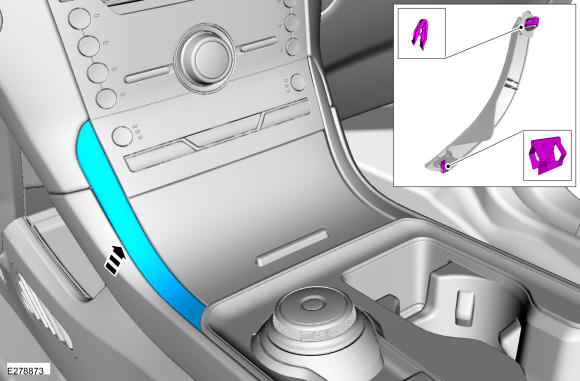

  8. Release the clips and remove the LH finish panel.
    GFD384485Courtesy of FORD MOTOR COMPANY

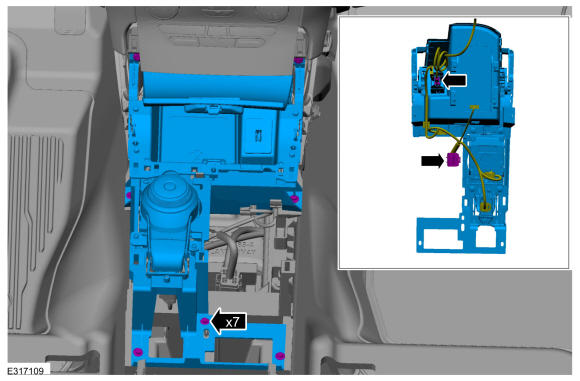

  9. Remove the bolts and the transmission selector bracket.

    • Disconnect the electrical connectors.

    GFD384486Courtesy of FORD MOTOR COMPANY

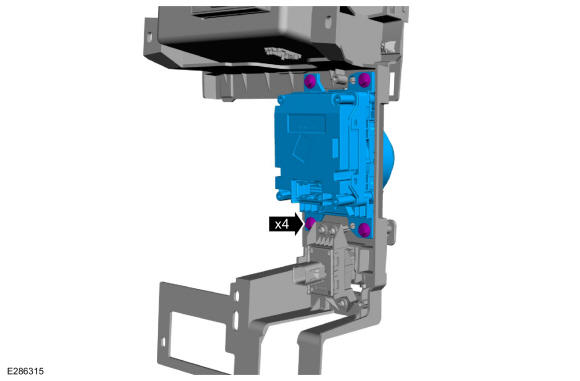

  10. Remove the bolts and the GSM.
GFD384487Courtesy of FORD MOTOR COMPANY
