Steering Wheel: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Removal steps in this procedure may contain installation details.

Remove the driver airbag. Refer to: Driver Airbag .

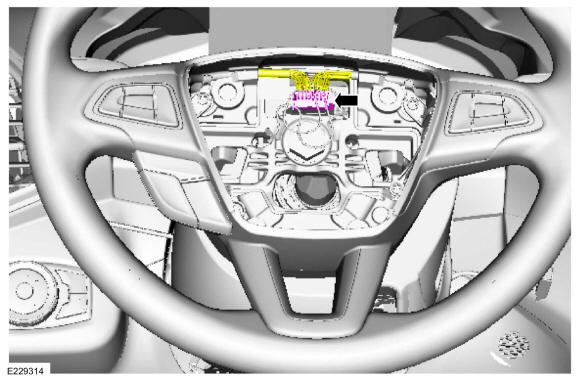

Disconnect the steering wheel electrical connector.

Courtesy of FORD MOTOR COMPANY

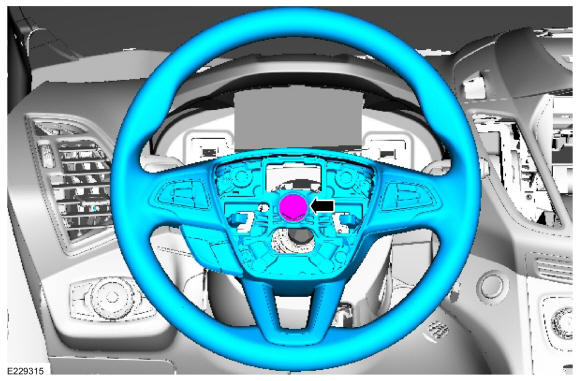

Remove the steering wheel bolt and the steering wheel.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the clockspring rotor does not rotate.

NOTE: Make sure the clockspring pins are not bent or damaged.

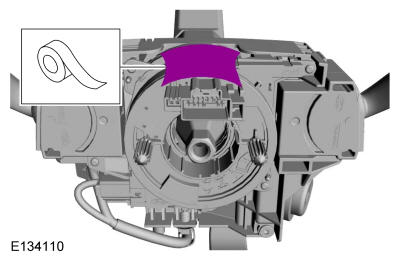

Tape the clockspring rotor to the outer housing to keep it from rotating. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the steering wheel multifunction switch. Refer to: Steering Wheel Multifunction Switch .
