External Controls - Component Location

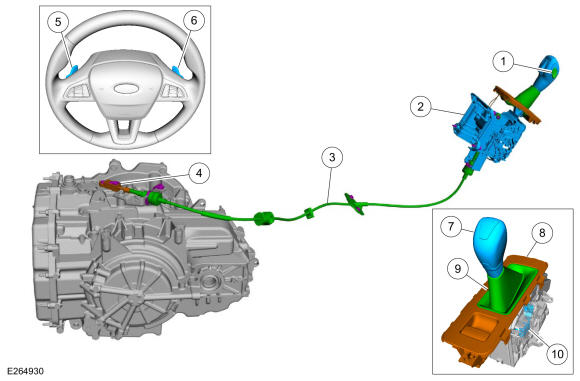

GFD373245Courtesy of FORD MOTOR COMPANY
Item Description
1 SelectShift™ switch
2 Selector lever assembly
3 Selector lever cable
4 Selector lever adjuster
5 Downshift paddle switch
6 Upshift paddle switch
7 Selector lever knob
8 Selector lever bezel
9 Selector lever boot
10 Brake shift interlock actuator
