Selector Lever Cable Adjustment: Adjustment
- Apply the parking brake.

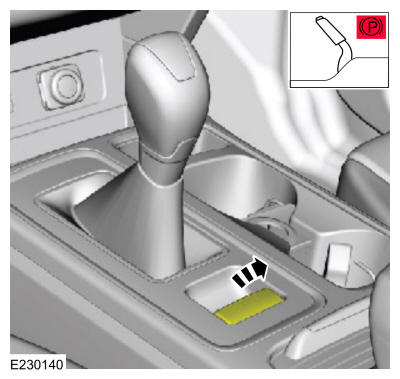

- Position the selector lever in D.
- Remove the air cleaner. Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner .

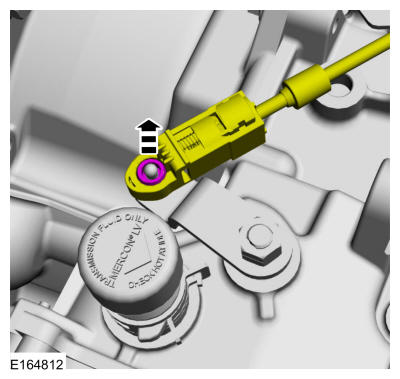

- Disconnect the selector lever cable end from the manual control lever.
- Rotate the manual control lever clockwise until it stops.
- Rotate the manual control lever counterclockwise 1 detent into D.
- Release the selector lever cable adjuster lock.
- Carefully pry the adjuster lock tabs outward.
- While holding the adjuster lock tabs outward, slide the lock out to unlock the selector lever cable.
- Connect the selector lever cable to the manual control lever.
- Slide the adjuster tab in place to lock the selector lever cable.
- Install the air cleaner. Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner .
- Verify the engine starts only in P and N and the reverse lamps illuminate only in R.
