Selector Lever Cable: Installation

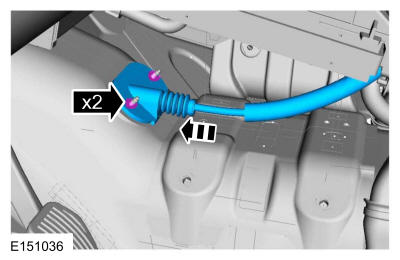

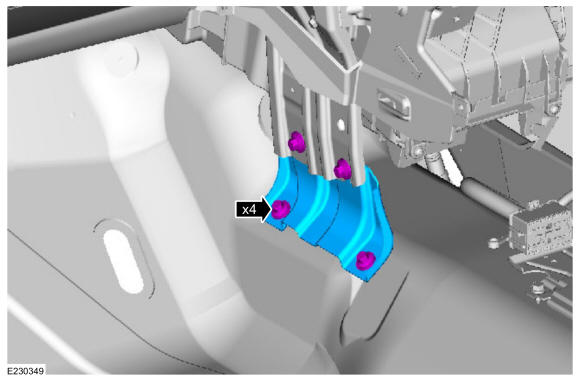

Position the selector lever cable to the engine compartment through the floor and install the selector lever cable to the passenger compartment. Install the nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH side console housing support bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the floor console. Refer to: Floor Console .

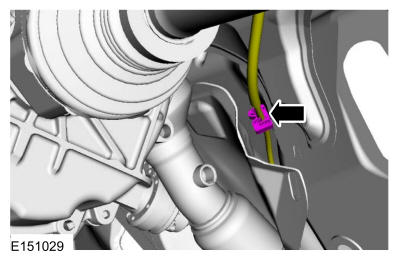

Connect the selector lever cable retainer.

Courtesy of FORD MOTOR COMPANY

AWD vehicles

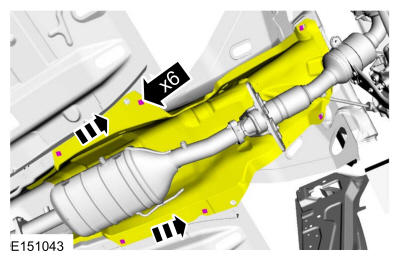

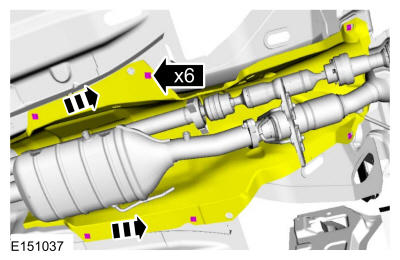

Position the front floor exhaust system heat shield and install the nuts.

Courtesy of FORD MOTOR COMPANY

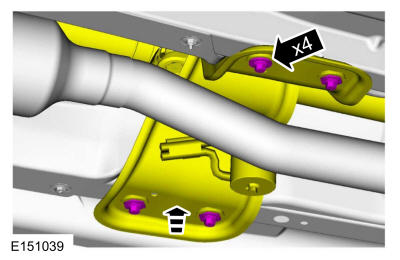

Position the exhaust pipe mounting bracket and install the bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

FWD vehicles
Position the front floor exhaust system heat shield and install the nuts.

Courtesy of FORD MOTOR COMPANY

All vehicles

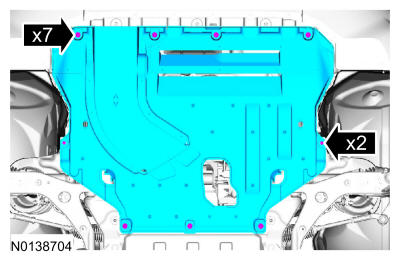

Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

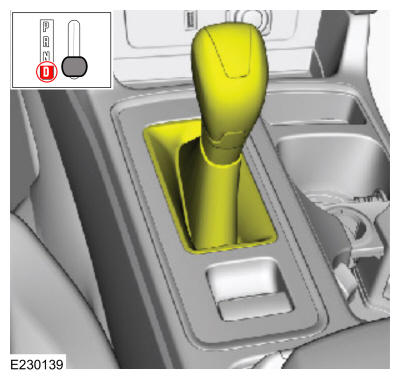

Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY

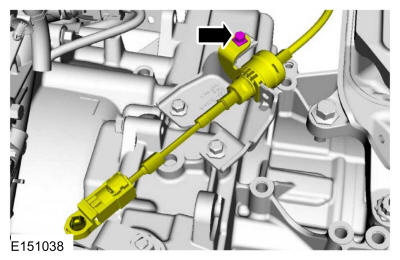

Install the selector lever cable bracket bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

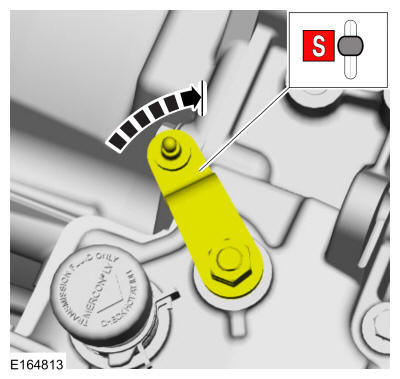

Rotate the manual lever clockwise until it stops.

Courtesy of FORD MOTOR COMPANY

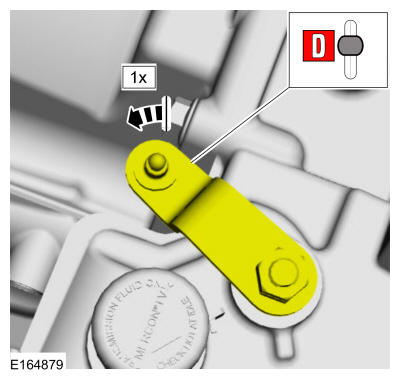

Rotate the manual control lever counterclockwise 1 detent into D.

Courtesy of FORD MOTOR COMPANY

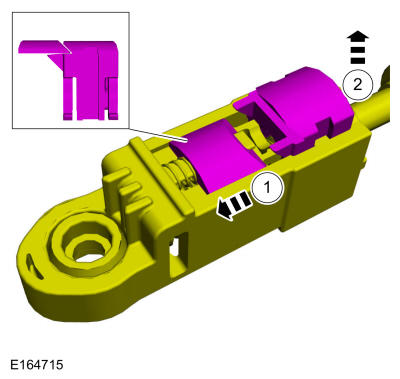

Unlock the adjuster.
1. Slide the spring-loaded tab forward.
2. Lift up the adjuster lock.
Courtesy of FORD MOTOR COMPANY

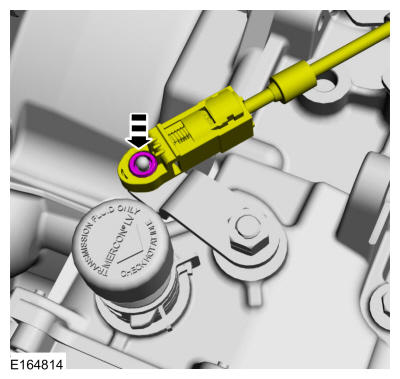

Connect the selector lever cable to the manual control lever.

Courtesy of FORD MOTOR COMPANY

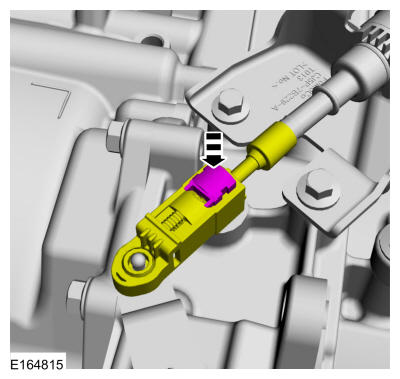

Slide the adjuster tab in place to lock the selector lever cable.

Courtesy of FORD MOTOR COMPANY

AWD vehicles
Install the battery tray. Refer to: Battery Tray .
FWD vehicles
Install the air cleaner. Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner .
All vehicles
Verify that the engine starts in P and N only and that the reverse lamps illuminate in R.
