Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Position the selector lever in S.
    GFD373268Courtesy of FORD MOTOR COMPANY

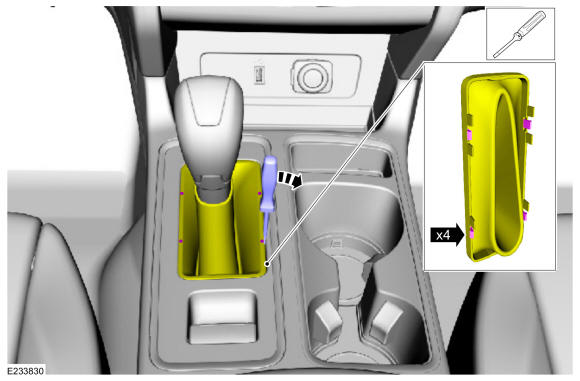

  2. Using a small screwdriver, pry the selector lever boot clips away from the selector lever bezel and position the boot aside.
    GFD373249Courtesy of FORD MOTOR COMPANY

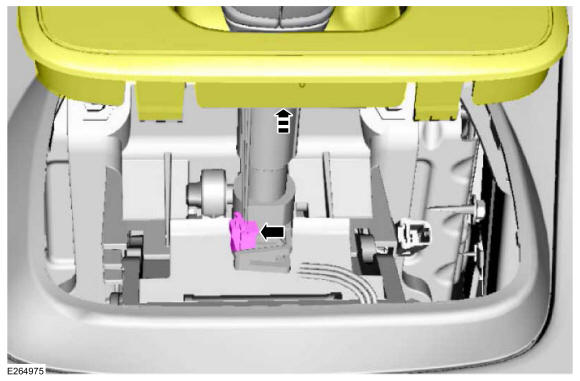

  3. If equipped. If equipped, disconnect the SelectShift™ switch electrical connector.
    GFD373290Courtesy of FORD MOTOR COMPANY

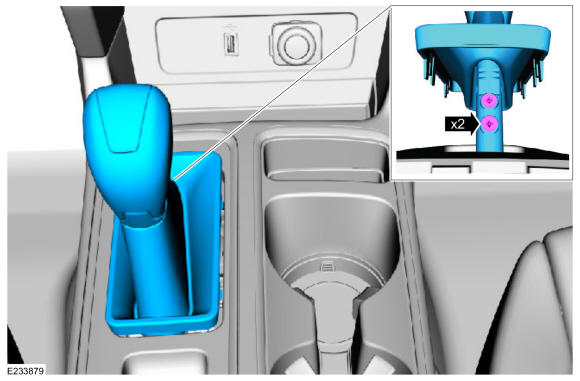

  4. Lift the boot, remove the screws and remove the boot and knob as an assembly.
    GFD373291Courtesy of FORD MOTOR COMPANY

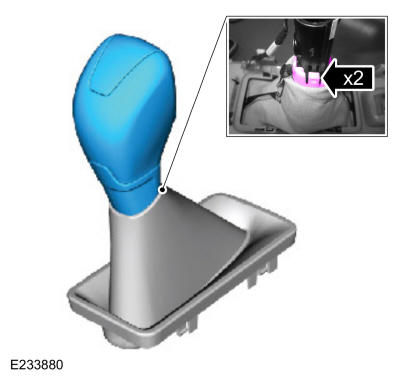

  5. Release the tabs on the selector lever boot and remove the selector lever knob from the selector lever boot.
GFD373292Courtesy of FORD MOTOR COMPANY
