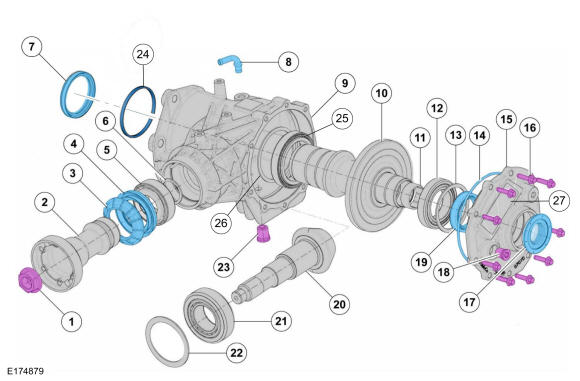

| 2 |
Output flange |
| 3 |
Deflector |
| 4 |
Transfer case rear seal |
| 5 |
Outer output shaft tapered roller bearing |
| 6 |
Outer output shaft tapered roller bearing shim |
| 7 |
Input Shaft Seal LH |
| 8 |
Transfer case vent |
| 9 |
PTU (power transfer unit) housing |
| 10 |
Input shaft |
| 11 |
Input shaft bushing |
| 12 |
Input shaft outer bearing |
| 13 |
Input shaft outer bearing shim |
| 14 |
O-ring cover seal |
| 15 |
PTU cover |
| 16 |
PTU cover bolts (9) |
| 17 |
Intermediate shaft seal |
| 18 |
PTU fill plug |
| 19 |
Input shaft seal RH |
| 20 |
Output shaft |
| 21 |
Inner output shaft tapered roller bearing |
| 22 |
Inner output shaft tapered roller bearing shim |
| 23 |
PTU drain plug |
| 24 |
Face seal |
| 25 |
Input shaft inner bearing |
| 26 |
Input shaft inner bearing shim |
| 27 |
Identification tag |
