All-Wheel Drive (AWD) Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH D-pillar trim panel. Refer to: D-Pillar Trim Panel .
-

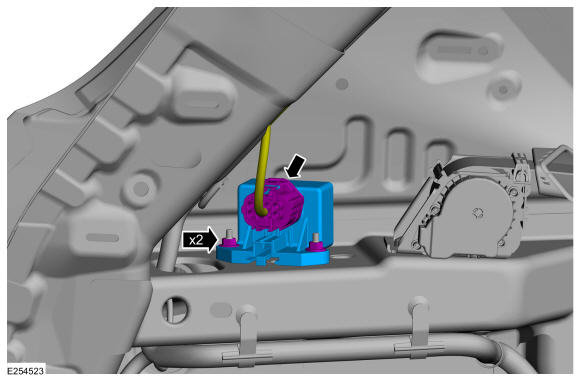

- Disconnect the AWD module electrical connector.
- Remove the nuts and the AWD module.
