Mode Select Switch (MSS): Removal

TYPE 1 - Drive Mode Select Switch (MSS)

1. Shifter Button type Refer to: Selector Lever Assembly .

   Type 1 - 4X4 Select Switch

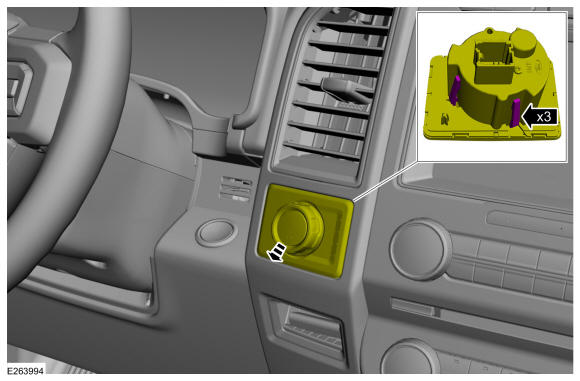

2. Carefully pry the 4WD switch from the instrumental panel.

   Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

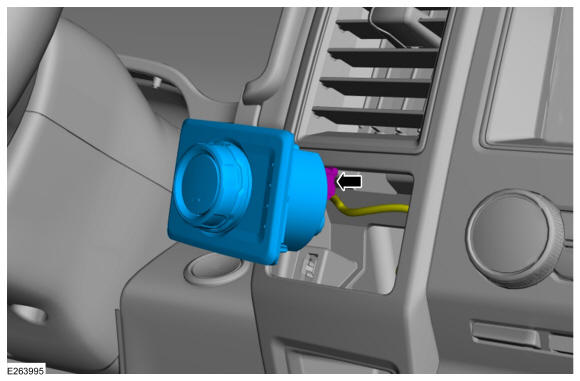

3. Disconnect the 4WD switch harness connector and remove the switch.

   Courtesy of FORD MOTOR COMPANY

   TYPE 2 - Drive Mode Select Switch (Console Button)

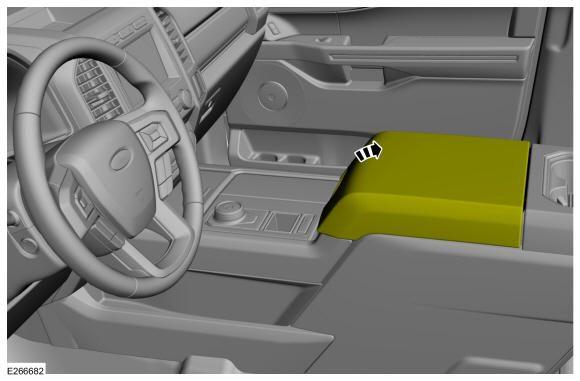

4. 1. Open the console door.

   Courtesy of FORD MOTOR COMPANY

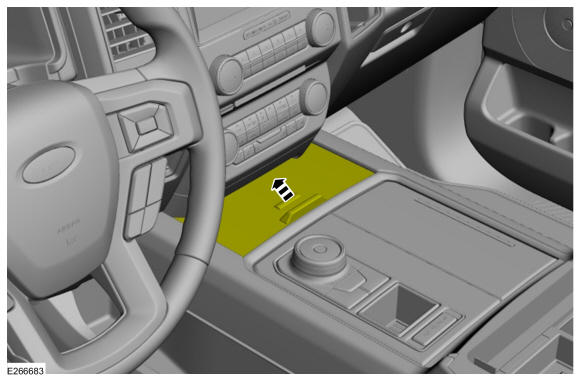

5. 2. Open the console compartment lid.

   Courtesy of FORD MOTOR COMPANY

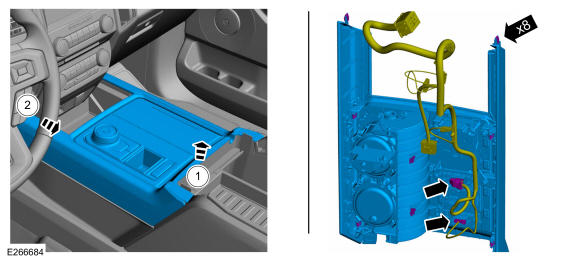

6. 3. Detach the console cover, disconnect the electrical connectors and remove the console cover.

   Courtesy of FORD MOTOR COMPANY

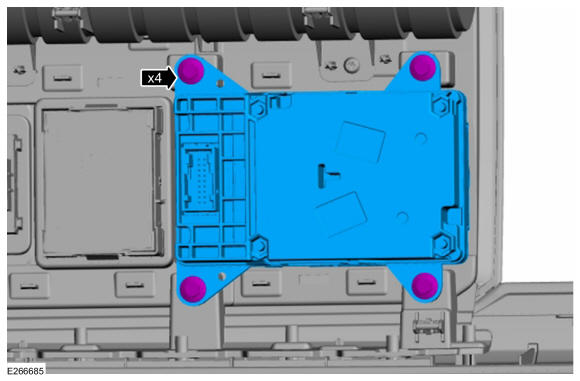

7. 3. Remove the bolts and the GSM (gearshift module).

   Torque: 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

   Type 2 - 4X4 Select Switch

8. Carefully pry the 4WD switch from the instrumental panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

9. Disconnect the 4WD switch harness connector and remove the switch.

   Courtesy of FORD MOTOR COMPANY

   Type 3 - Mode Select Switch/4X4 Select Switch

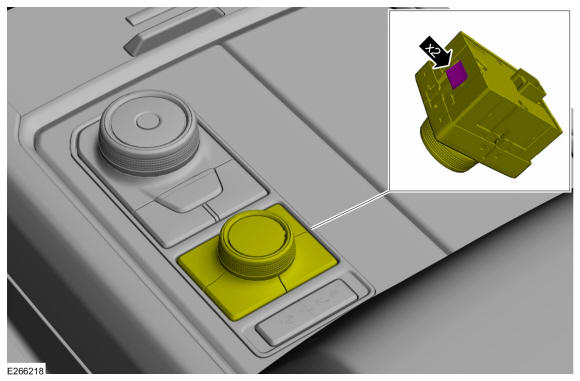

10. Carefully pry the switch from the center console panel.

    Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

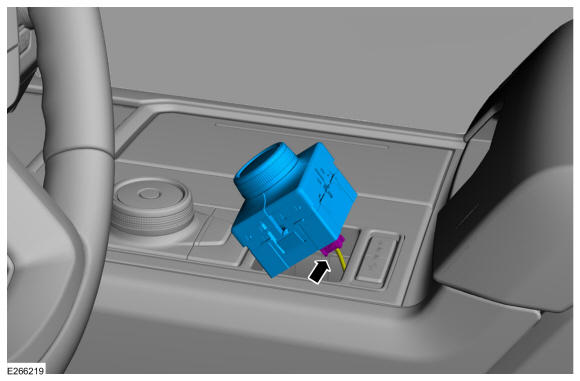

11. Disconnect the harness connector and remove the switch.

Courtesy of FORD MOTOR COMPANY
