Selector Lever Cable: Removal

For information on Ford Color Coded Illustrations refer toOEM COLOR CODING

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .
Remove the steering column shrouds. Refer to: Steering Column Shrouds .
Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
NOTE: Push button start vehicle shown in illustration, all others similar.

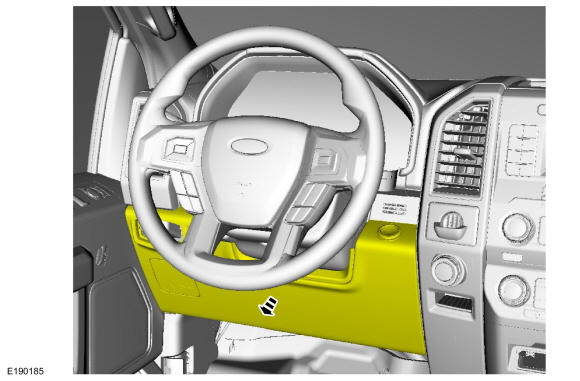

Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector(s).

Courtesy of FORD MOTOR COMPANY
NOTE: Push button start vehicle shown in illustration, all others similar.

Remove the screws and the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the steering column reinforcement panel.

Courtesy of FORD MOTOR COMPANY
Remove the selector cable retainer bolt.

Courtesy of FORD MOTOR COMPANY

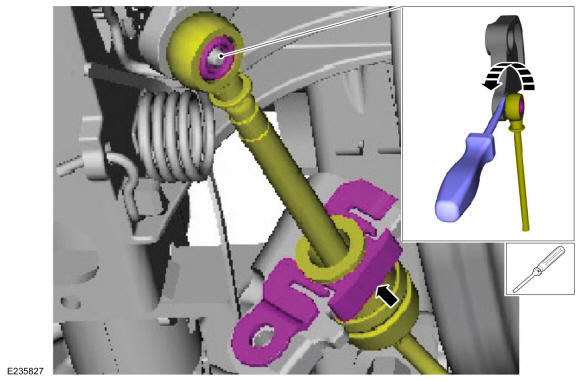

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown in illustration to pry the cable end off the post as close to the post as possible.

Using a screwdriver, disconnect the selector lever cable from the selector lever mechanism and the steering column.

Courtesy of FORD MOTOR COMPANY

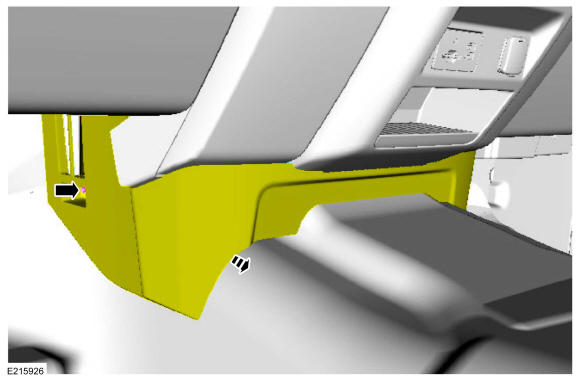

Remove the screw and position the instrument panel lower center finish panel aside.

Courtesy of FORD MOTOR COMPANY
Push the rubber grommet and the selector lever cable through the floor pan.

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

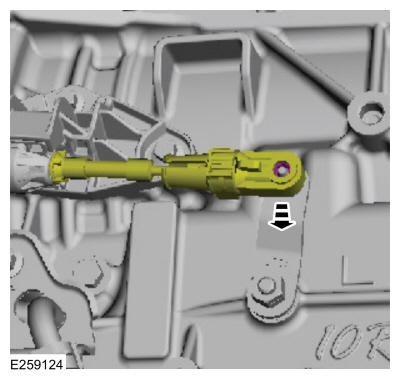

Disconnect the selector lever cable from the manual control lever.

Courtesy of FORD MOTOR COMPANY

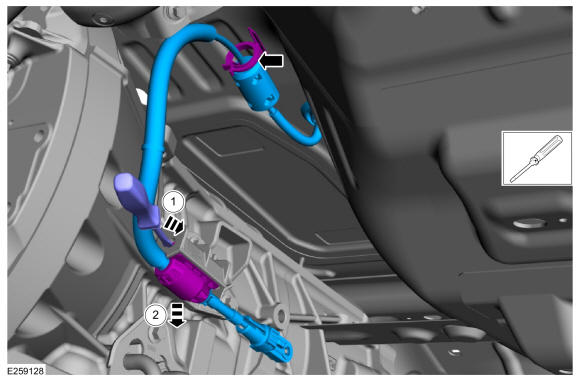

Disconnect the selector lever cable from the upper retainer, use a screwdriver to release the selector lever cable retainer and detach the selector lever cable retainer from the bracket, and remove the selector lever cable.

Courtesy of FORD MOTOR COMPANY
