Transmission Control Switch (TCS): Removal

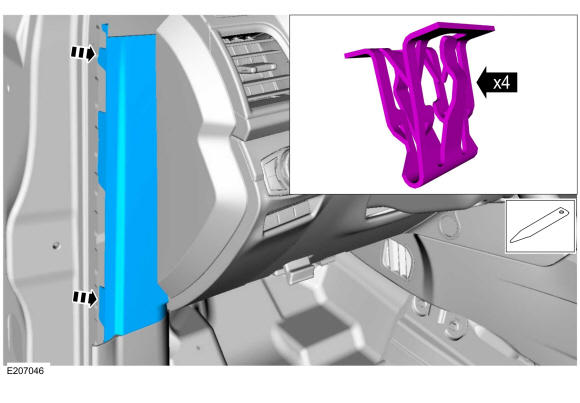

  1. Remove the LH cowl side trim panel.. Use the General Equipment: Interior Trim Remover
    GFD416343Courtesy of FORD MOTOR COMPANY

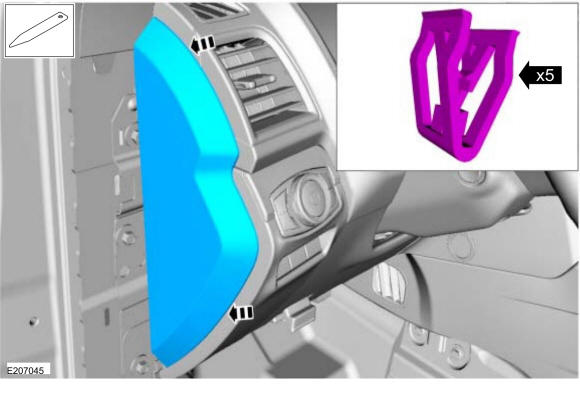

  2. Remove the LH instrument panel trim panel.. Use the General Equipment: Interior Trim Remover
    GFD416344Courtesy of FORD MOTOR COMPANY

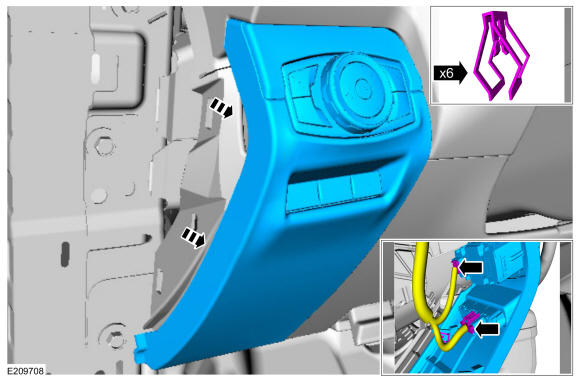

  3. Remove the LH instrument panel trim panel and disconnect the electrical connectors.
    GFD416345Courtesy of FORD MOTOR COMPANY

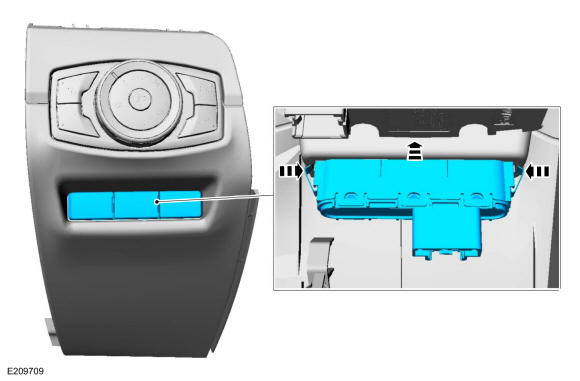

  4. Press the spring clips in and remove the TCS.
GFD416346Courtesy of FORD MOTOR COMPANY
