All Terrain Control Module (ATCM): Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

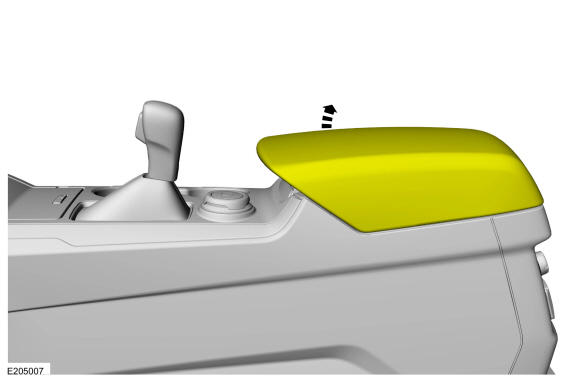

1. Open the center console arm rest panel.

   Courtesy of FORD MOTOR COMPANY

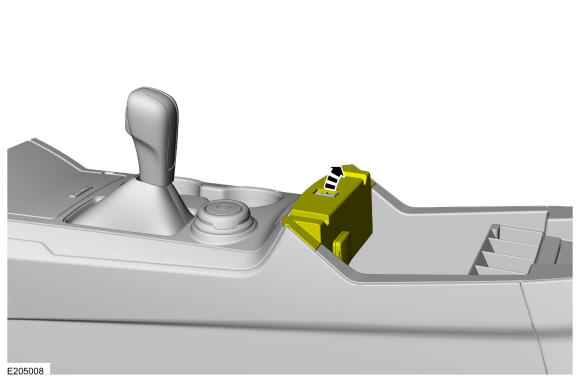

2. NOTE: The electrical connector does not have to be disconnected to position the arm rest trim panel aside.

   Position the arm rest latch trim panel aside.

   Courtesy of FORD MOTOR COMPANY

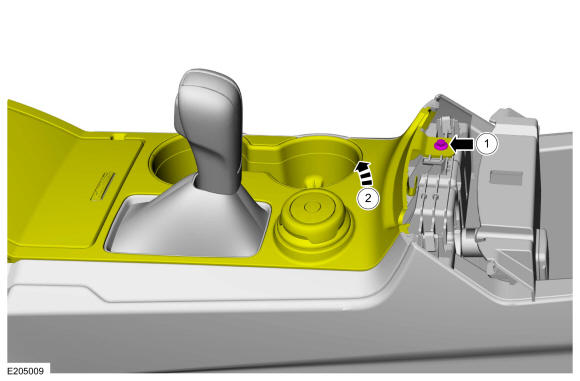

3. NOTE: It is not necessary to remove the upper finish panel to access the ATCM retaining tabs.
   1. Remove the upper finish panel screw.
   2. Lift the upper finish panel upward, releasing the rear retaining clips.

   Courtesy of FORD MOTOR COMPANY

4. 1. Disconnect the ATCM electrical connector.
   2. Press and release the ATCM retaining tabs inward.
   3. Remove the ATCM from the upper finish panel.

Courtesy of FORD MOTOR COMPANY
