All-Wheel Drive (AWD) Module: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the LH load space trim panel. Refer to: Loadspace Trim Panel . Refer to: Loadspace Trim Panel - Police . Refer to: Loadspace Trim Panel - Vehicles With: Inflatable Seatbelts .

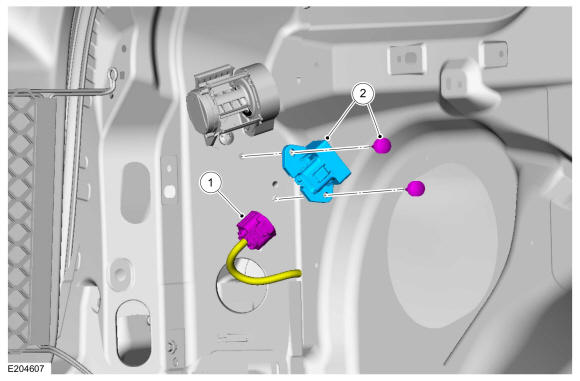

2. 1. Disconnect the AWD module electrical connector.
   2. Remove the AWD module push pin fasteners and the AWD module.

Courtesy of FORD MOTOR COMPANY
