System Operation

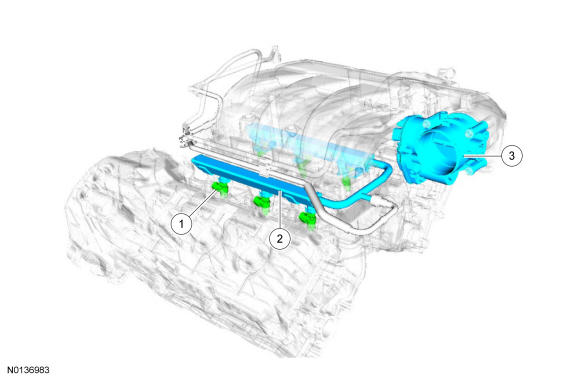

3.5L Ti-VCT

GFD320834Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 Fuel injector -
2 Fuel rail -
3 TB -

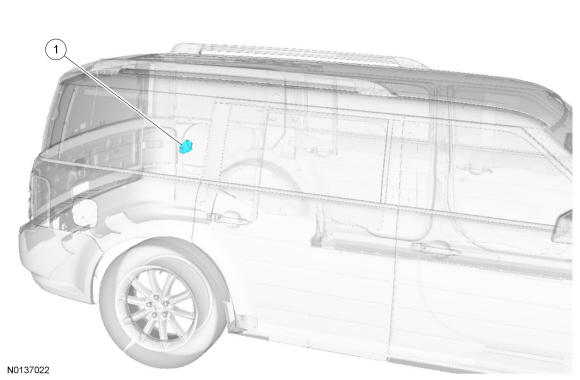

FPCM

GFD320835Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 FPCM -
