Washer Hose Repair
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Repair
NOTE:
This procedure may be carried out on rubber hoses only. If a plastic washer hose is damaged, a new washer hose must be installed.
- Locate and verify the damaged washer hose.

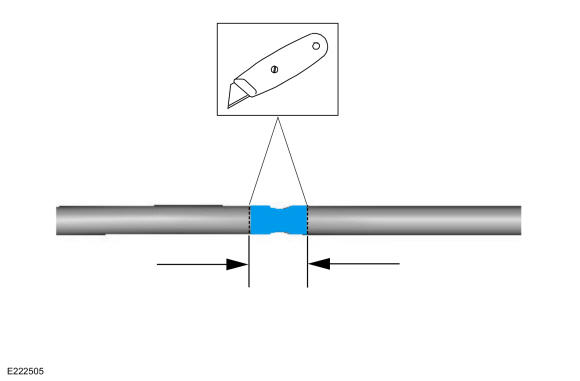

- Cut the hose cleanly and remove the damaged portion of the washer hose.
Dimension: 0.5000 in (12.7 mm)

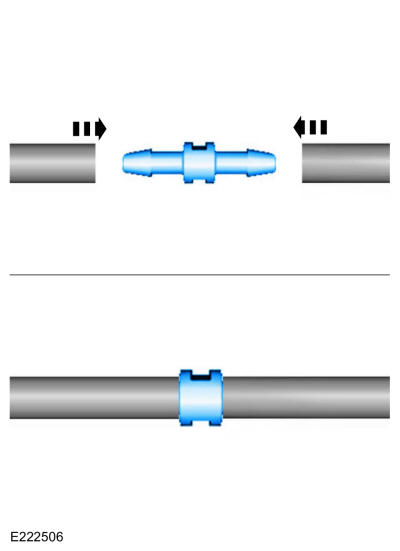

- Install a windshield washer hose adapter between the cut ends of the hose.
-
NOTE: In difficult cases, clamping may be required.
If necessary, install a segment of 6.4 mm (0.25 in) ID black rubber hose over the ends of the washer hose and clamp both ends of the rubber hose using spring clamps.
