Rain Sensor: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Remove the interior rear view mirror. Refer to: Interior Rear View Mirror .

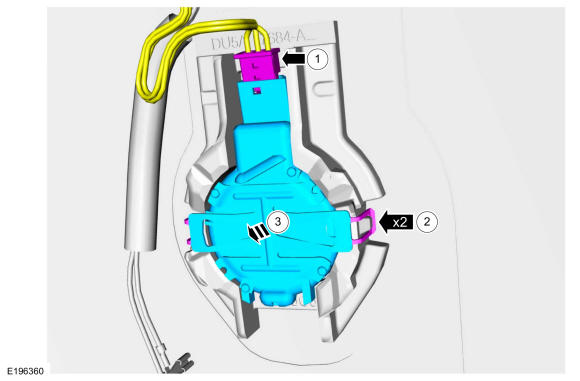

1. Disconnect the electrical connector and position aside.
2. Release the retainers.
3. Remove the rain sensor.

Courtesy of FORD MOTOR COMPANY
