Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver air bag. Refer to: Driver Airbag .

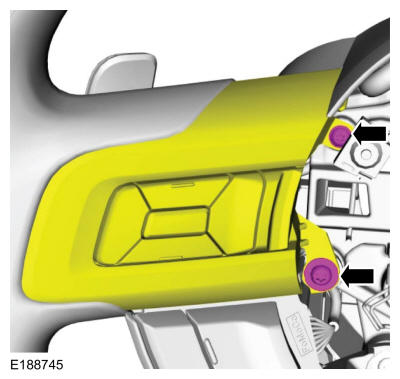

  2. Remove the screws and position the LH speed control switch to access the electrical connector.
    GFD390289Courtesy of FORD MOTOR COMPANY

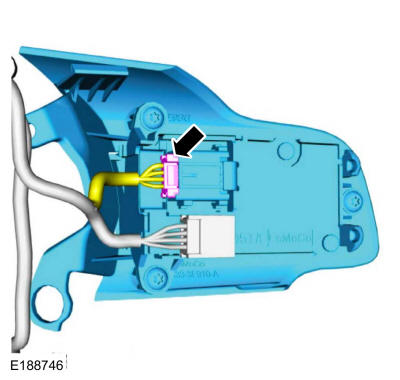

  3. Disconnect the LH speed control switch electrical connector and remove the switch.
    GFD390290Courtesy of FORD MOTOR COMPANY

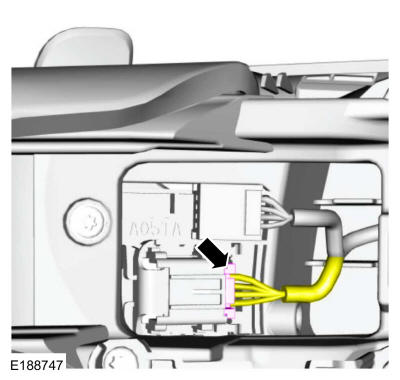

  4. Disconnect the downshift paddle switch electrical connector.
    GFD390291Courtesy of FORD MOTOR COMPANY

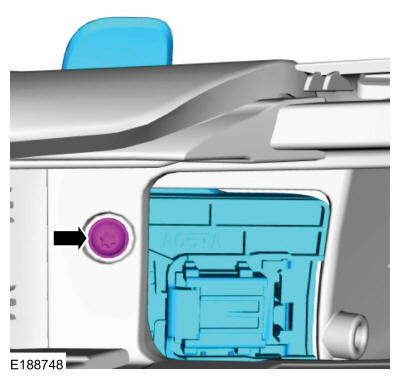

  5. Remove the screw and the downshift paddle switch.
GFD390292Courtesy of FORD MOTOR COMPANY
