Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver air bag. Refer to: Driver Airbag .

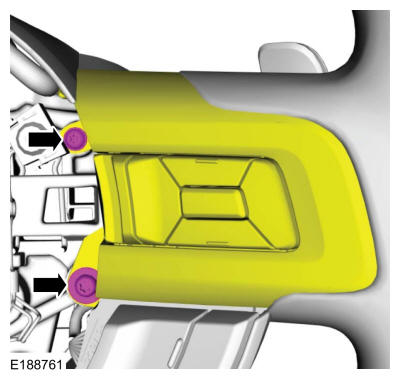

  2. Remove the screws and position the RH speed control switch to access the electrical connector.
    GFD390318Courtesy of FORD MOTOR COMPANY

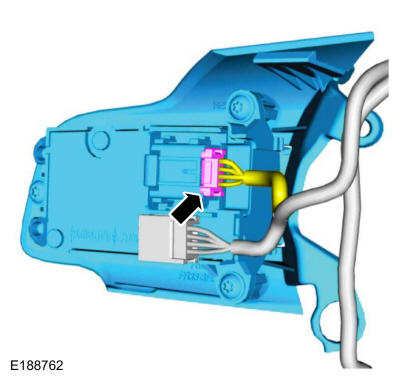

  3. Disconnect the RH speed control switch electrical connector and remove the switch.
    GFD390319Courtesy of FORD MOTOR COMPANY

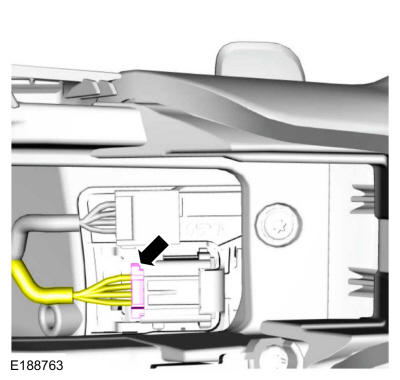

  4. Disconnect the upshift paddle switch electrical connector.
    GFD390320Courtesy of FORD MOTOR COMPANY

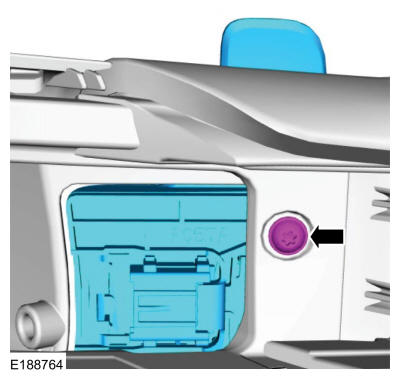

  5. Remove the screw and the upshift paddle switch.
GFD390321Courtesy of FORD MOTOR COMPANY
