Steering Column Collapsed Check: Inspection

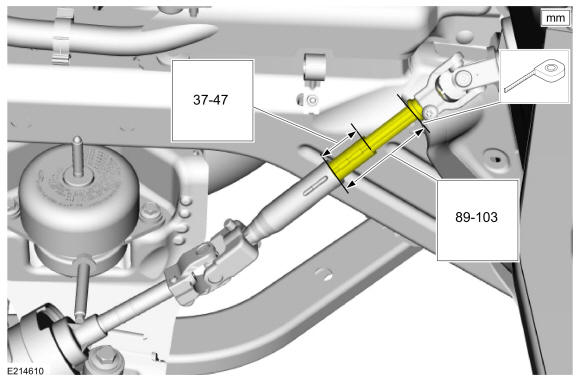

Left hand drive

1. With the steering system fully assembled, measure the lengths of the lower shaft. If either length is out of range, discard the lower shaft and install a new one. Do not attempt to repair the shaft.

   Courtesy of FORD MOTOR COMPANY

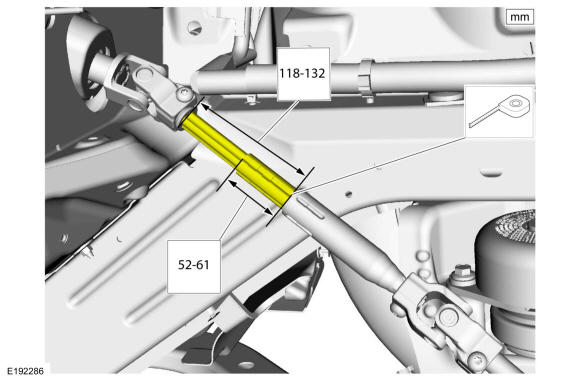

   Right hand drive

2. With the steering system fully assembled, measure the lengths of the lower shaft. If either length is out of range, discard the lower shaft and install a new one. Do not attempt to repair the shaft.

Courtesy of FORD MOTOR COMPANY
