Steering Wheel Rotation Sensor: Removal

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

1. NOTE: The steering wheel rotation sensor may be attached to the clockspring when the clockspring is removed.

   Remove the clockspring. For additional information, refer to Clockspring .

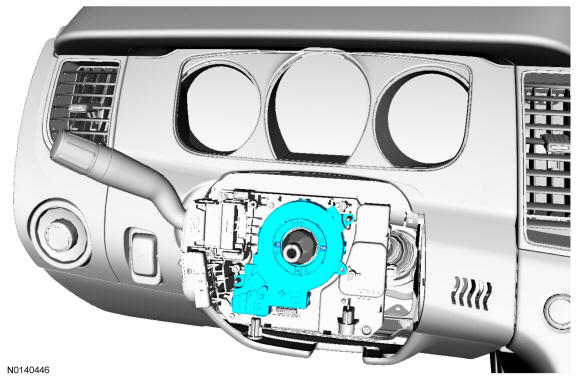

2. Remove the steering wheel rotation sensor.

Courtesy of FORD MOTOR COMPANY
