Wheel Speed Sensor - Front: Removal

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: Steps in the removal procedure may contain installation details.
  1. Remove the wheel and tire. Refer to Wheel and Tire .
    GFD337500Courtesy of FORD MOTOR COMPANY
    GFD337501Courtesy of FORD MOTOR COMPANY
    GFD337502Courtesy of FORD MOTOR COMPANY

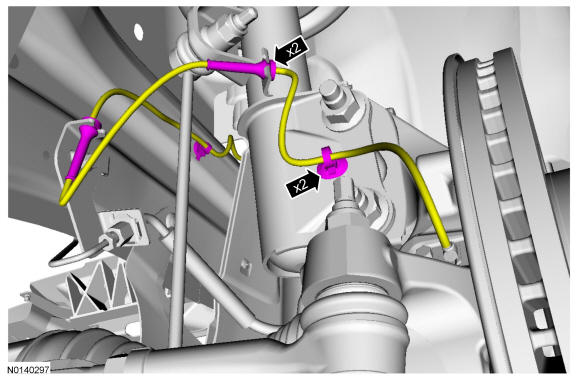

    GFD337503Courtesy of FORD MOTOR COMPANY
    • To install, tighten to 15 Nm (133 lb-in).

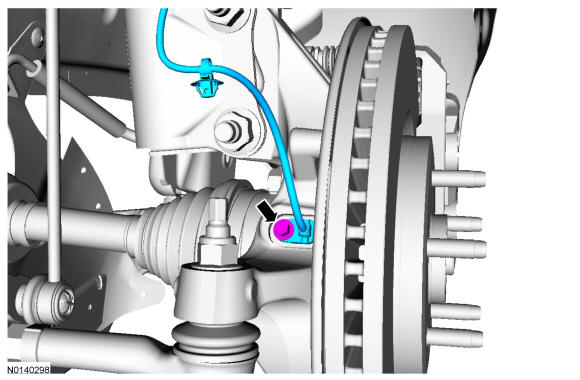

GFD337504Courtesy of FORD MOTOR COMPANY
