Fuel Rail: Installation

NOTE: A clean working environment is essential to prevent dirt or foreign material contamination.

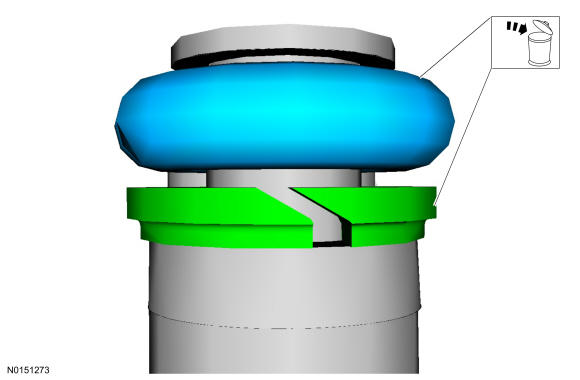

  1. GFD340144Courtesy of FORD MOTOR COMPANY
  2. NOTE: Do not attempt to cut the lower Teflon® seal without first pulling it away from the fuel injector or damage to the injector may occur.
    NOTE: Use care when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injectors.

    1. Pull the lower Teflon® seal away from the injector.
    2. Carefully cut and discard the lower fuel injector Teflon® seals.

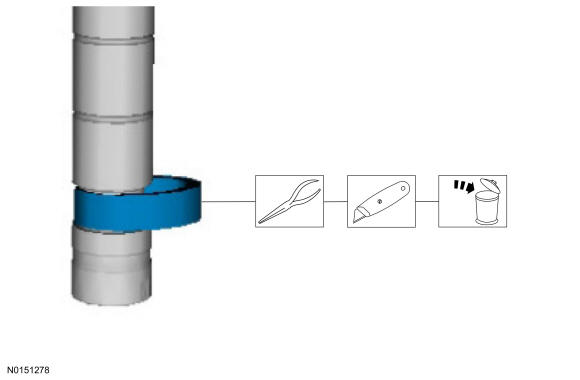

    GFD340145Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

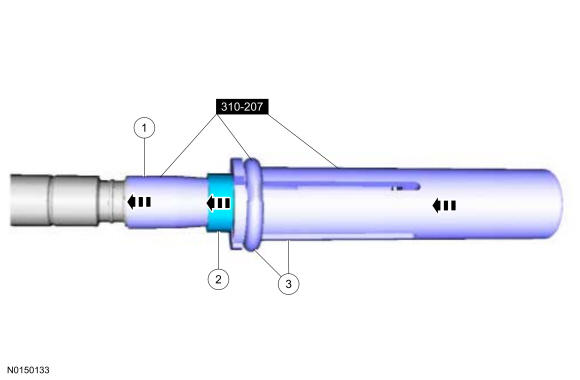

    1. Position the Teflon® seal guide 310-207 (part of the Fuel Injector Seal Installer) on the tip of the fuel injector.
    2. NOTE: Once the Teflon® seal is installed on the Arbor, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.
      NOTE: Make sure that new lower fuel injector Teflon® seals are installed.
    3. Using the Pusher Tool 310-207 (part of the Fuel Injector Seal Installer), slide the Teflon® seals off of the Arbor and into the groove on the fuel injectors.

    GFD339549Courtesy of FORD MOTOR COMPANY
  4. NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon® seal expansion.

    1. NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.

      Some Teflon® seal massaging with your fingers before the Teflon® seal sizer tool is installed will aid in installing the Teflon® seal sizer tool.

    2. Position the Teflon® seal sizer tool 303-1567 with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees. Special Tool(s): 303-1567.
    3. Once the Teflon® seal sizer tool 303-1567 is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.

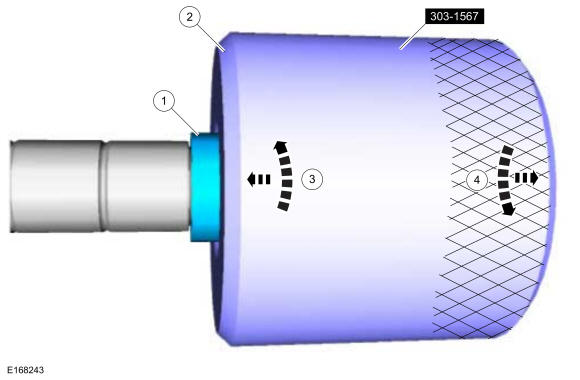

    GFD339550Courtesy of FORD MOTOR COMPANY
  5. NOTE: Use new fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the O-ring seals.
    NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
    NOTE: Make sure that new upper fuel injector O-ring seals, new upper fuel injector O-ring seal support rings and new fuel injector retainer clips are installed.

    Material: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US).

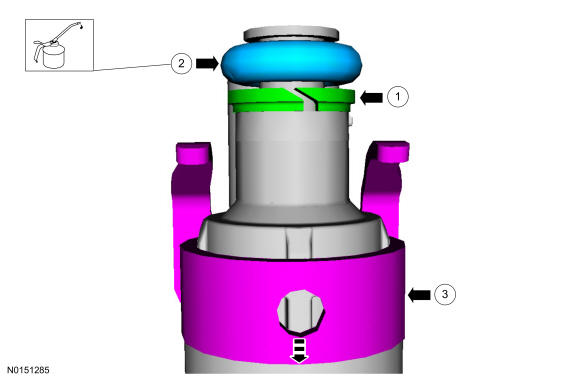

    GFD339551Courtesy of FORD MOTOR COMPANY
  6. NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.
    NOTE: The fuel rail pressure sensor must be replaced if it is removed from the fuel rail, refer to Electronic Engine Controls .

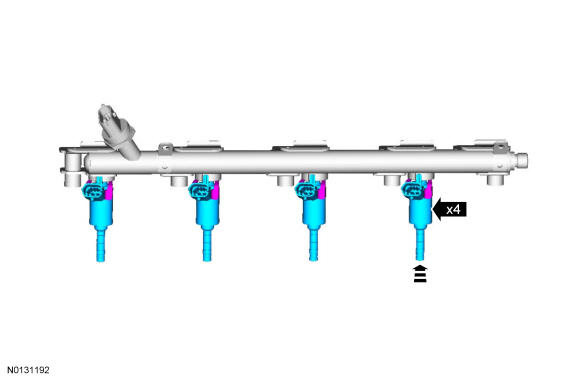

    GFD339552Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
    NOTE: Push down on the fuel rail face above the injectors.

    Tighten the 5 fuel rail bolts in the following 2 stages.

    • Stage 1: Tighten to 8 Nm (71 lb-in) in the sequence shown.

    • Stage 2: Tighten an additional 26 degrees in the sequence shown.

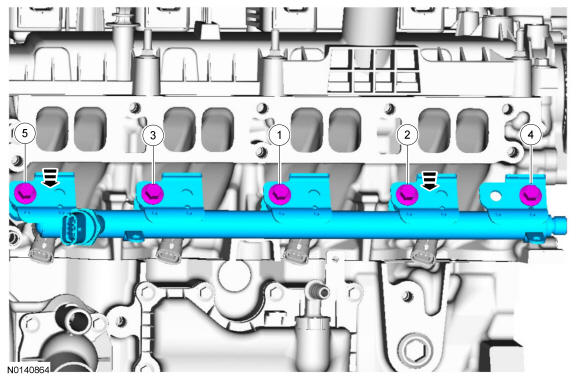

    Fig 1: Fuel Rail Tightening Sequence
    GFD340146Courtesy of FORD MOTOR COMPANY

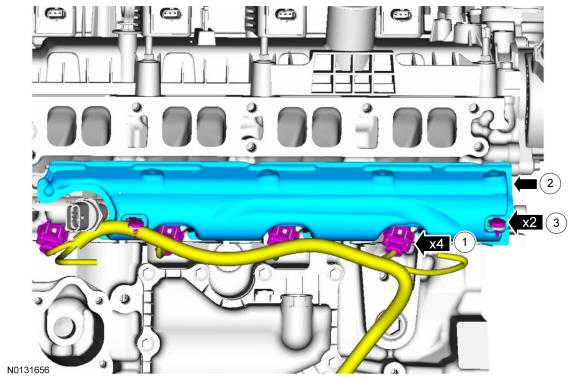

  8. GFD340147Courtesy of FORD MOTOR COMPANY
  9. NOTE: Only tighten the 2 high pressure fuel tube flare nuts finger tight at this stage.
    NOTE: Only tighten the 2 high pressure fuel tube bracket bolts finger tight at this stage.

    1. NOTE: Make sure that a new high pressure fuel tube is installed.
    2. NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the chart below.
      G00468730Courtesy of FORD MOTOR COMPANY

      • Stage 1: Using a torque adapter, tighten to 15 Nm (133 lb-in).

      • Stage 2: Tighten an additional 30 degrees.

    3. Tighten to 10 Nm (89 lb-in).

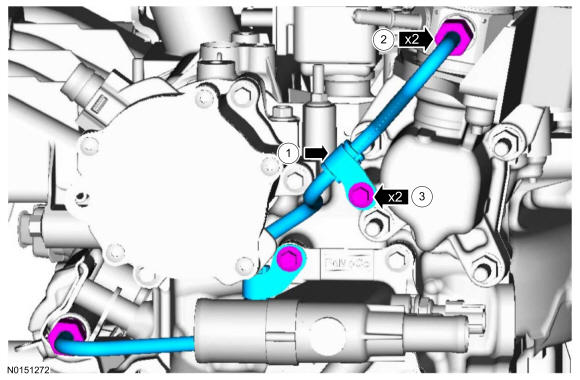

    GFD340148Courtesy of FORD MOTOR COMPANY
  10. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
    GFD340123Courtesy of FORD MOTOR COMPANY
  11. Install the intake manifold, refer to Engine .
  12. Connect the battery ground cable, refer to Charging System (Battery, Battery Mounting and Battery Cables) .
  13. Pressurize the fuel system, refer to Fuel System - General Information .
