Selector Lever Cable Adjustment - 6F35

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

1. Courtesy of FORD MOTOR COMPANY

2. Courtesy of FORD MOTOR COMPANY

3. 1. Rotate the manual control lever clockwise until it stops.
   2. Rotate the manual control lever counterclockwise 1 detent.

   Courtesy of FORD MOTOR COMPANY

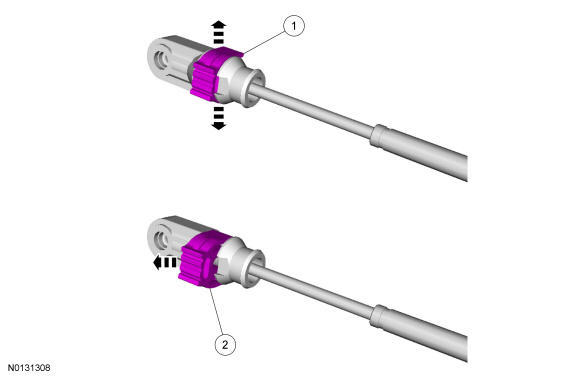

4. 1. Carefully pry outward the adjuster lock tabs.
   2. While holding the adjuster lock tabs outward, slide the lock to unlock the selector lever cable.

   Courtesy of FORD MOTOR COMPANY

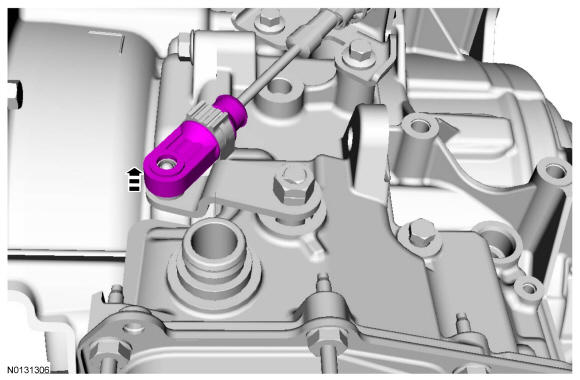

5. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
   NOTE: Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.

   Courtesy of FORD MOTOR COMPANY

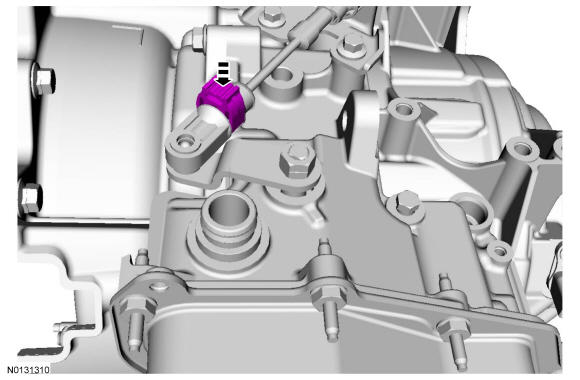

6. NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

   Courtesy of FORD MOTOR COMPANY

7. Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
