3.2L 4V Transit: Notes

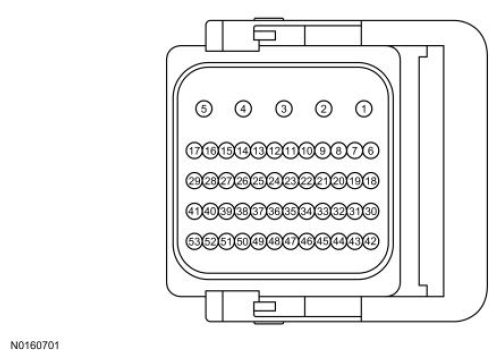

53 Pin B Connector

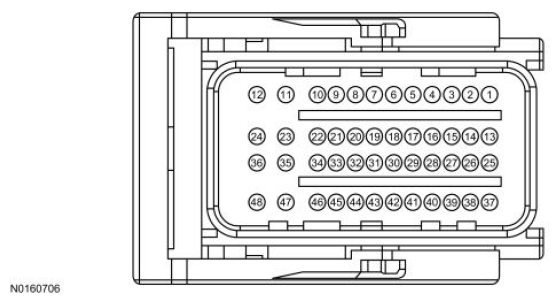

48 Pin E Connector
53 Pin T Connector
| Inputs | Component/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| AAT | AAT Sensor | 25 (77) | 25 (77) | 28 (82.4) | 25 (77) | DEG C (DEG F) |
| AAT_V | AAT Sensor | 1.09 | 1.09 | 1.01 | 1.10 | VOLTS |
| APP1 | APP Sensor | 0.78 | 0.78 | 0.91 | 1.07 | VOLTS |
| APP1 (APP_D) | APP Sensor | 0 | 0 | 3.13 | 8.62 | % |
| APP2 | APP Sensor | 0.39 | 0.39 | 0.45 | 0.54 | VOLTS |
| APP2 (APP_E) | APP Sensor | 0 | 0 | 1.56 | 7.05 | % |
| B+ | PID | 12.96 | 14.38 | 14.36 | 14.34 | VOLTS |
| BARO | PID | 4/99 (14.36)/156.11 | 3.99/99 (14.36)/156.11 | 3.99/99 (14.36)/156.11 | 4/99 (14.36)/156.11 | VOLTS/kPa (PSI)/Hz/ |
| BOO1 | BPP Switch | OFF | OFF | OFF | OFF | ON/OFF |
| BOO2 | BPP Switch | OFF | OFF | OFF | OFF | ON/OFF |
| BRKOVR_ACTION | PID | 0 | 0 | 0 | 0 | NUMERIC VALUE |
| BRKOVRD_POSS | PID | 185 | 185 | 186 | 186 | NUMERIC VALUE |
| CAC_T | CACT Sensor | 26 (78.8) | 26 (78.8) | 25 (77) | 26 (78.8) | DEG C (DEG F) |
| CACT_V | CACT Sensor | 3.23 | 3.24 | 3.28 | 3.24 | VOLTS |
| CC_VENTHOSE_V | Crankcase Ventilation Sensor | 4.17 | 4.27 | 4.27 | 4.28 | VOLTS |
| CLRDIST | PID | 2 (1.24) | 2 (1.24) | 2 (1.24) | 3.99 (2.48) | KM (MILES) |
| CLRWRMUP | PID | 0 | 0 | 0 | 0 | NUMERIC VALUE |
| DIST_BRKOVRD | PID | 12201.41 (7581.61) (C) | 12201.41 (7581.61) (C) | 12201.41 (7581.61) (C) | 12201.41 (7581.61) (C) | KM (MILES) |
| DPF_INP | DPFP11 Sensor | 0 | 500Pa (0.07) | 2.3 (0.33) | 9.5 (1.38) | kPa (PSI) |
| DPF_INP_V | DPFP11 Sensor | 0.42 | 0.47 | 0.56 | 0.93 | VOLTS |
| DTCCNT | PID | 0 | 0 | 0 | 0 | NUMERIC VALUE |
| ECT | ECT Sensor | 45 (113) | 53 (127.4) | 83 (181.4) | 85 (185) | DEG C (DEG F) |
| ECT1_V | ECT Sensor | 1.95 | 1.62 | 0.73 | 0.69 | VOLTS |
| EGR_A_ACT | EGR Valve | 0.39 | 37.25 | 52.15 | 85.09 | % |
| EGR_A_CMD | PID | 0 | 30.58 | 34.11 | 80 | % |
| EGRCIT_V | EGRT11 Sensor | 1.09 | 1.19 | 1.27 | 1.64 | VOLTS |
| EGRCOT_V | EGRT12 Sensor | 2.30 | 1.74 | 1.23 | 1.31 | VOLTS |
| EGRTA | EGRT11 Sensor | 100 (212) | 152 (305.6) | 332 (629.6) | 364 (687.2) | DEG C (DEG F) |
| EGRTC | EGRT12 Sensor | 72 (161.6) | 104 (219.2) | 116 (240.8) | 120 (248) | DEG C (DEG F) |
| EGRTP_MES | PID | 99.60 | 99.60 | 99.60 | 99.60 | % |
| EGRTP_V | Intake Throttle Actuator | 0.31 | 0.31 | 0.31 | 0.31 | VOLTS |
| EGRVP | EGR Valve | 0.84 | 2 | 2.48 | 3.52 | VOLTS |
| EGT11 | EGT11 Sensor | 100 (212) | 120 (248) | 240 (464) | 310 (590) | DEG C (DEG F) |
| EGT11_V | EGT11 Sensor | 1.07 | 1.12 | 1.36 | 1.48 | VOLTS |
| EGT12 | EGT12 Sensor | 75 (167) | 115 (239) | 290 (554) | 305 (581) | DEG C (DEG F) |
| EGT12_V | EGT12 Sensor | 1.09 | 1.11 | 1.39 | 1.43 | VOLTS |
| EGT13 | EGT13 Sensor | 45 (113) | 45 (113) | 255 (491) | 230 (446) | DEG C (DEG F) |
| EGT13_V | EGT13 Sensor | 0.93 | 0.93 | 1.39 | 1.34 | VOLTS |
| EOT | EOT Sensor | 60 (140) | 59 (138.2) | 95 (203) | 98 (208.4) | VOLTS/DEG C (DEG F) |
| EOT_V | EOT Sensor | 1.36 | 1.40 | 0.51 | 0.47 | VOLTS/DEG C (DEG F) |
| ETC [TAC_PCT] | PID | 0 | 0 | 0 | 0 | % |
| EXH_MODE_ACTIVE | PID | Normal Operating Mode | Normal Operating Mode | Normal Operating Mode | Normal Operating Mode | STATE |
| FLI | Fuel Level Sensor | 82.35 (A) | 82.35 (A) | 81.17 (A) | 81.17 (A) | % |
| FPM | Fuel Pump Control Module | 40 | 39.89 | 39.96 | 39.92 | % |
| FRP | FRP Sensor | 0.53/3.33 (482.98) | 0.99/25.62 (3715.87) | 1.45/47.28 (6857.38) | 1.67/142.82 (20714.29) | VOLTS/MPa (PSI) |
| FRT | FRT Sensor | 24 (75.2) | 23 (73.4) | 27 (80.6) | 28 (82.4) | DEG C (DEG F) |
| FRT_V | FRT Sensor | 3.47 | 3.53 | 3.36 | 3.32 | VOLTS |
| IAT | IAT Sensor | 28 (82.4) | 27 (80.6) | 26 (78.8) | 26 (78.8) | VOLTS/DEG C (DEG F) |
| IAT11_V | IAT Sensor | 2.18 | 2.27 | 2.31 | 2.32 | VOLTS |
| KEYST | Ignition Switch | ON | ON | ON | ON | ON/OFF |
| LOAD | PID | 0.00 (B) | 19.21 | 40 | 96.47 | % |
| LP_FUEL_SW | Low Pressure Fuel Switch | LOW | NOT LOW | NOT LOW | NOT LOW | LOW/NOT LOW |
| MAF | MAF Sensor | 1.97 | 13.88 | 33.44 | 41.11 | g/s |
| MAF_HZ | MAF Sensor | 683.75Hz | 3.18 | 4.52 | 4.90 | kHz |
| MAP | MAP Sensor | 99 (14.36) | 99 (14.36) | 115 (16.68) | 130 (18.85) | kPa (PSI) |
| MAP_DMD | MAP Sensor | 98.75 (14.32) | 99.75 (14.47) | 115.50 (16.75) | 129.75 (18.82) | kPa (PSI) |
| MAP_V | MAP Sensor | 1.60 | 1.62 | 1.82 | 2.06 | VOLTS |
| MIL_DIS | PID | 0 | 0 | 0 | 0 | KM (MILES) |
| NOx11 | PID | 14 | 192 | 227 | 196 | NUMERIC VALUE |
| NOxNTE_IN | PID | NO | NO | NO | NO | YES/NO |
| NOxNTE_OUT | PID | YES | YES | YES | YES | YES/NO |
| O2S11_PCT | PID | 0 | 0 | 0 | 0 | % |
| O2S12_PCT | PID | 0 | 0 | 0 | 0 | % |
| RPM | CKP Sensor | 0 | 801 | 1684 | 1738 | RPM |
| VAPORIZER_MES | PID | OFF | OFF | OFF | OFF | ON/OFF |
| VNT_POS_PER | Turbocharger | 4.70 | 96.86 | 82.74 | 90.19 | % |
| VGT_POS_V | Turbocharger | 1.15 | 3.91 | 3.30 | 3.23 | VOLTS |
| VSS | PID | 0 | 0 | 48 km/h (30 MPH) | 89 km/h (55 MPH) | km/h/MPH |
| WFS_V | WIF Sensor | 4.76 | 4.76 | 4.75 | 4.75 | VOLTS |
| Outputs | Component/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| CYL_BAL_1 -5 | PID | -8 TO +8 (B) | -8 TO +8 | -8 TO +8 | -8 TO +8 | mg |
| CYL_FUELMOD_1-5 | PID | 100 to 106 (B) | 99 to 101 | 98 to 101 | 100 to 104 | % |
| EGRCBV | EGR Cooler Bypass Valve | ON | ON | OFF | OFF | ON/OFF |
| EGRCBV_DSD | PID | 39.6 | 39.6 | 0 | 0 | % |
| EGRTP_CMD | PID | 0 | 0 | 0 | 0 | % |
| EGRVPDES | PID | 0 | 30.58 | 45.09 | 80 | % |
| FAN1 | PID | OFF | OFF | OFF | OFF | ON/OFF |
| FAN2 | PID | OFF | OFF | OFF | OFF | ON/OFF |
| FP | Fuel Pump Control Module | 74.99/OFF | 47.99/ON | 47.99/ON | 47.99/ON | %/ON/OFF |
| FRP_DSD | PID | 25 (3625.94) | 25 (3625.94) | 45.25 (6562.96) | 65.77 (9539.13) | MPa (PSI) |
| F_VCV | Fuel Volume Control Valve | 22.35 | 24.31 | 25.88 | 27.45 | % |
| INJ1-5_OFF | Injector 1-5 | -- | -- | -- | -- | --/DISABLE |
| NOx_ADAPT_FAC | PID | 0 | 0 | 0 | 0 | NUMERIC VALUE |
| PMNTE_IN | PID | NO | NO | NO | NO | YES/NO |
| PMNTE_OUT | PID | YES | YES | YES | YES | YES/NO |
| REDUCT_OPMODE | PID | OK | OK | OK | OK | STATE |
| REDUCT_WARN | PID | Under Half Full | Under Half Full | Under Half Full | Under Half Full | STATE |
| VAPORIZER_CMD | PID | OFF | OFF | OFF | OFF | ON/OFF |
| VFDES | PID | 19 | 9 | 13 | 42 | NUMERIC VALUE |
| VGTDC | PID | 4.70 | 96.86 | 82.74 | 92.54 | % |
| Other | Component/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| VPWR | PID | VBAT | VBAT | VBAT | VBAT | VOLTS |
| VREF | PID | 5 | 5 | 5 | 5 | VOLTS |
