Reductant Dosage Control Module

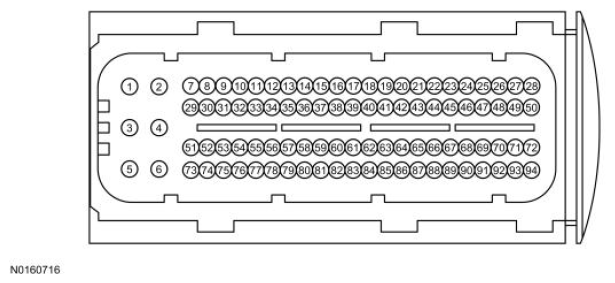

| Reductant Dosage Control Module Inputs | Component/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| Ignition On Engine Off | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| REDUCT_INJ_DC | Reductant Injector | 0 | 0 | 0 | 0 | % |
| REDUCT_LINEP | Reductant Pressure Sensor | 99.99 | 99.99 | 99.99 | 99.99 | % |
| REDUCT_LITERS | PID | 8.27 | 8.27 | 8.27 | 8.27 | NUMERIC VALUE |
| REDUCT_PRES V | Reductant Pump Assembly | 0.30 1 | 1.79 | 1.80 | 1.80 | VOLTS |
| REDUCT_TNK_LV | Reductant Heater And Sender Assembly | 66.66 | 66.66 | 66.66 | 66.66 | % |
| REDUCT_TNK_P | Reductant Pressure Sensor | 1.50 (0.22) | 506.50 (73.46) | 494.50 (71.72) | 496 (71.94) | kPa (PSI) |
| REDUCT_TNK_T | Reductant Temperature Sensor | 18 (64.4) | 18 (64.4) | 18 (64.4) | 19 (66.2) | DEG C (DEG F) |
| SCR_LEVEL_LOW | Reductant Heater And Sender Assembly | NO | NO | NO | NO | YES/NO |
| Reductant Dosage Control Module Outputs | Component/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| Ignition On Engine Off | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| REDUCT_PMP_DC | Reductant Pump Assembly | 0 | 13.33 | 14.11 | 14.11 | % |
| REDUCT_PUMP_HC | PID | OFF | OFF | OFF | OFF | ON/OFF |
| Other | Component/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| Ignition On Engine Off | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| VPWR | PID | VBAT | VBAT | VBAT | VBAT | VOLTS |
| VREF | PID | 5 | 5 | 5 | 5 | VOLTS |
