Front Wheel Speed Sensor: Installation

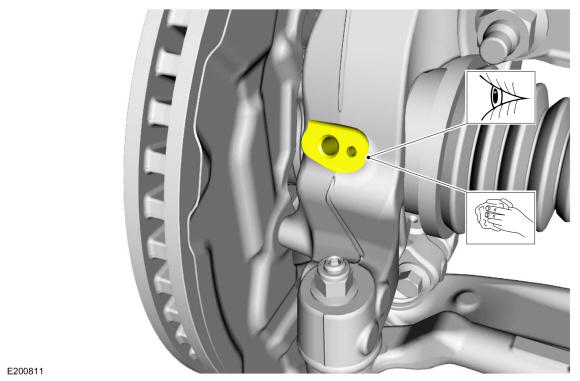

  1. NOTE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur.

    Clean and inspect the sensor housing cavity.

    GFD525173Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
