Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

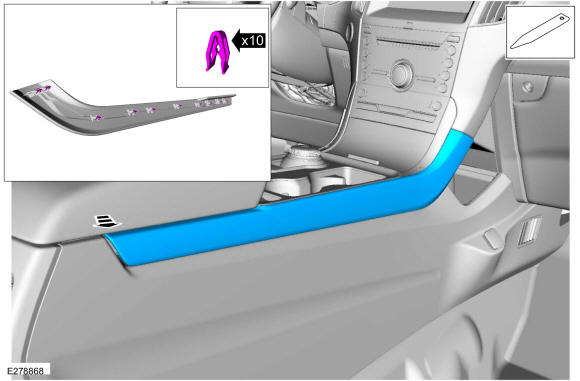

  1. Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover
    GFD528013Courtesy of FORD MOTOR COMPANY

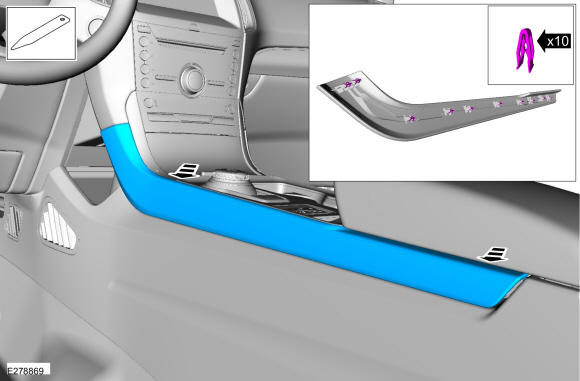

  2. Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover
    GFD528014Courtesy of FORD MOTOR COMPANY

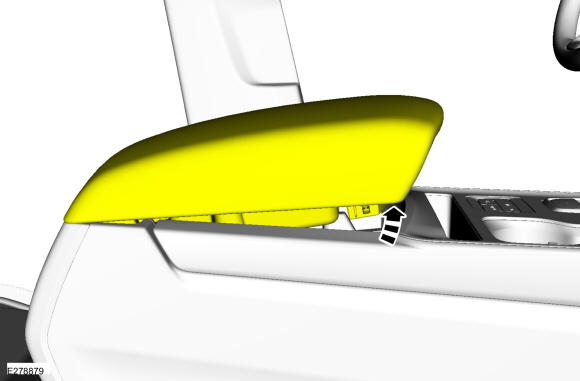

  3. Open floor console armrest.
    GFD528015Courtesy of FORD MOTOR COMPANY

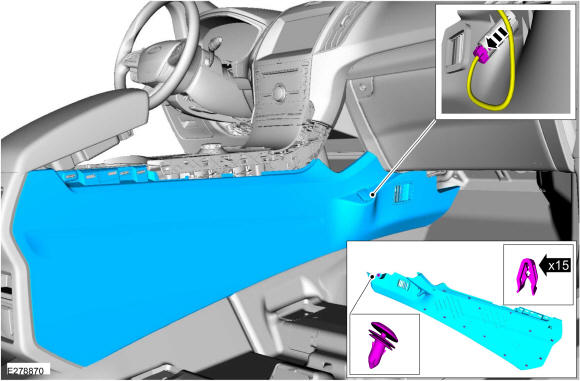

  4. Release the clips, push pin and remove the RH floor console side trim panel.

    • Disconnect the electrical connector.

    GFD528016Courtesy of FORD MOTOR COMPANY

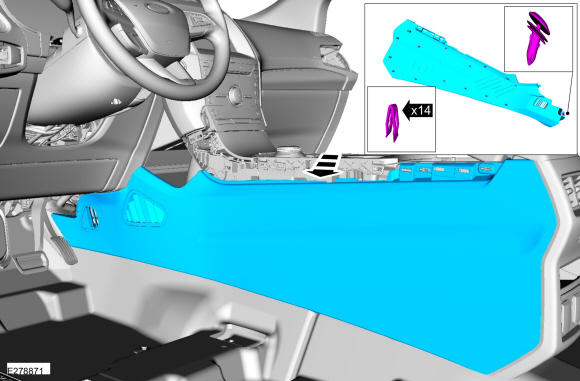

  5. Release the clips, push pin and remove the LH floor console side trim panel.
    GFD528017Courtesy of FORD MOTOR COMPANY

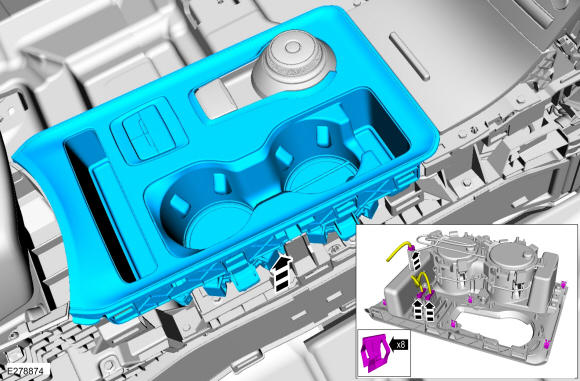

  6. Release the clips and remove the floor console upper trim panel.

    • Disconnect the electrical connectors.

    GFD528018Courtesy of FORD MOTOR COMPANY

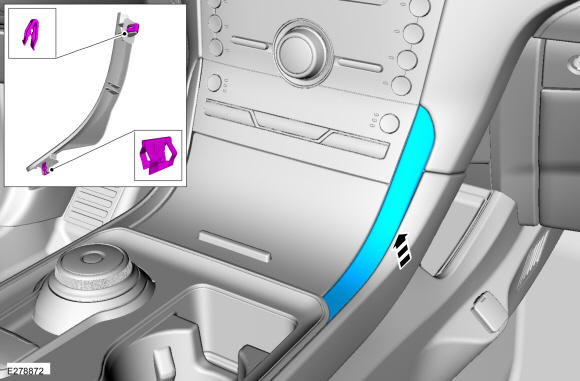

  7. Release the clips and remove the RH finish panel.
    GFD528019Courtesy of FORD MOTOR COMPANY

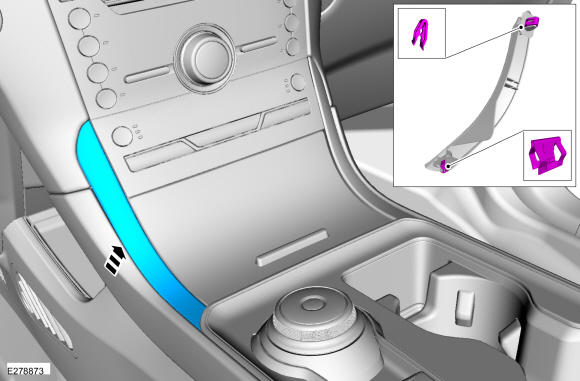

  8. Release the clips and remove the LH finish panel.
    GFD528020Courtesy of FORD MOTOR COMPANY

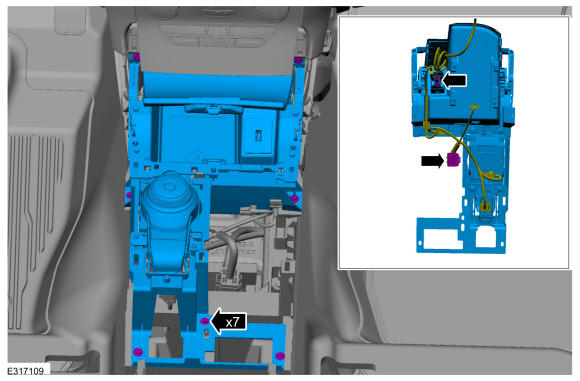

  9. Remove the bolts and the transmission selector bracket.

    • Disconnect the electrical connectors.

    GFD528021Courtesy of FORD MOTOR COMPANY

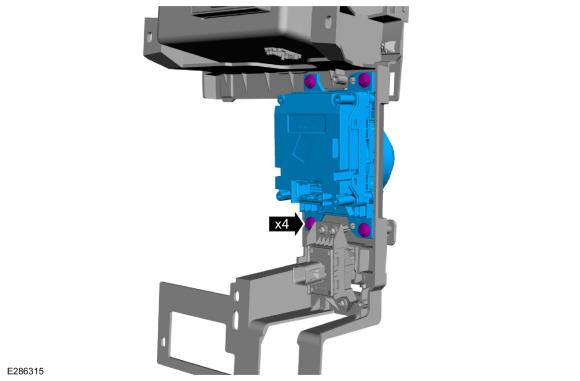

  10. Remove the bolts and the GSM.
GFD528022Courtesy of FORD MOTOR COMPANY
