Side Obstacle Detection Control Module: Removal

Side obstacle detection control module

NOTE: This step is only necessary if the SODL or SODR is being replaced.

NOTE: This procedure can be used for all locations of the component.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
Remove the rear bumper cover. Refer to: Rear Bumper Cover .

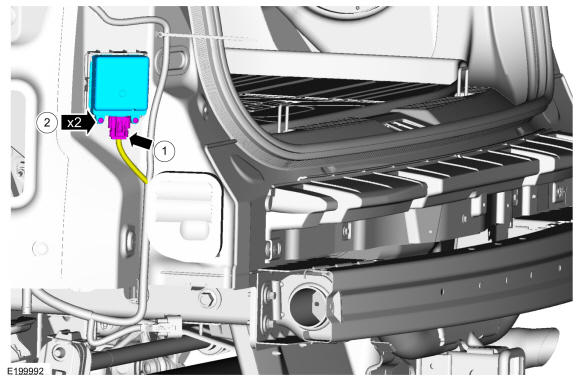

Remove the SODL or SODR.
1. Disconnect the SODL or SODR electrical connector.
2. Remove the SODL or SODR screws.
Courtesy of FORD MOTOR COMPANY

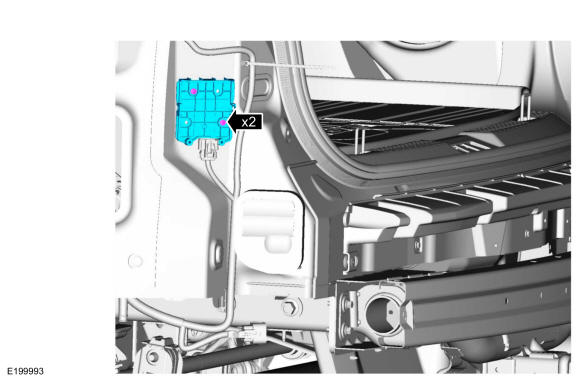

If required. Remove the screws and the SODL or SODR bracket.

Courtesy of FORD MOTOR COMPANY

Side obstacle detection control module bracket
Remove the SODL or SODR.
If required. Remove the screws and the SODL or SODR bracket.

Courtesy of FORD MOTOR COMPANY
