Fuel Pump Driver Module (FPDM): Installation

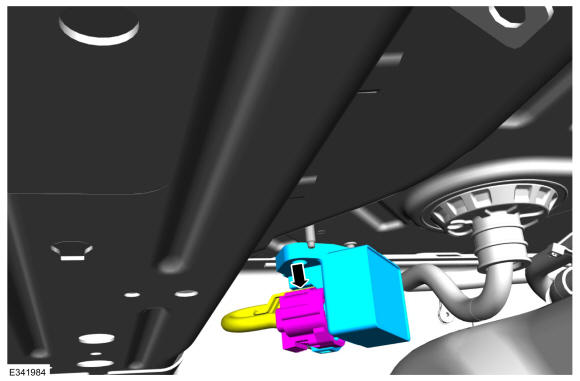

  1. Connect the fuel pump driver module electrical connector.
    GFD526561Courtesy of FORD MOTOR COMPANY
  2. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

    Torque: 36 lb.in (4.1 Nm)

    GFD526560Courtesy of FORD MOTOR COMPANY

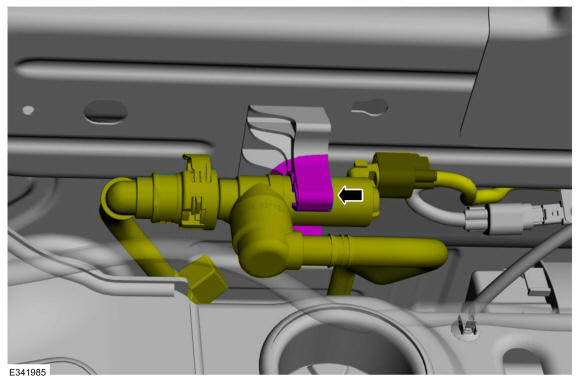

  3. Position back the EVAP blocking valve and hoses.
GFD526559Courtesy of FORD MOTOR COMPANY
