Identification Codes: VIN
VIN
VIN Locator

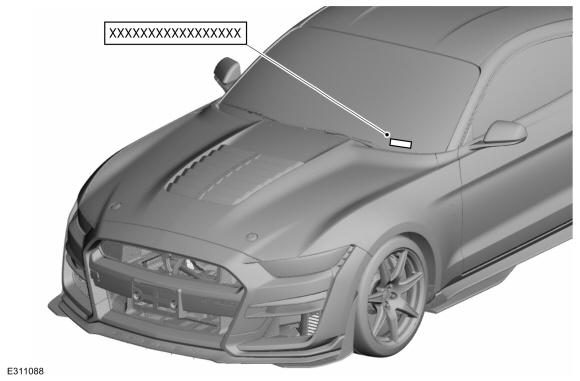

The VIN is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the VC label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office.

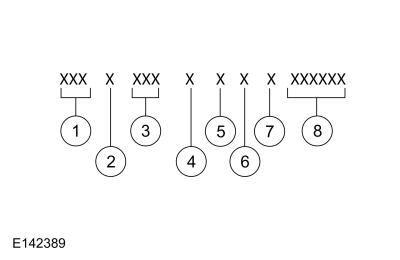

| Item | Description |
|---|---|
| 1 | WMI (World Manufacturer) |
| 2 | Restraint-type code |
| 3 | Vehicle line, series, body-type code |
| 4 | Engine-type code |
| 5 | Computer-generated check digit |
| 6 | Model year code |
| 7 | Assembly plant code |
| 8 | Production sequence number |
World Manufacturer Identifier
The first 3 VIN positions are the WMI (world manufacturer identifier.
- 1FA - Ford Motor Company, USA, passenger car
Restraint Type
The fourth VIN position is the vehicle restraint type code.
- 6 - Active safety belts (all positions), driver and front passenger air bags, driver and front passenger knee inflatables, side inflatables 1st and 2nd row (Coupe)
- T - Active safety belts (all positions), driver and front passenger air bags, driver and front passenger knee inflatables, side inflatables 1st row (Convertible)
Vehicle Line, Series and Body Type
Positions 5 through 7 indicate vehicle line, series and body type.
- P8C - 2 - Door Coupe, GT -LHD
- P8F - 2 - Door Convertible, GT -LHD
- P8J - Shelby GT350/GT350R Coupe - LHD
- P8K - 2 - Door Coupe, Bullitt - LHD
- P8S - Shelby Coupe GT500 - LHD
- P8T - 2 - Door Coupe, I4 -LHD
- P8U - 2 - Door Convertible, I4 -LHD
Engine Type
The eighth VIN position identifies the engine type, displacement and number of cylinders.
- D - 2.3L, Ti-VCT (twin independent variable cam timing), turbo-charged, in-line 4-cylinder, High Performance EcoBoost, 350PS
- F - 5.0L, DOHC, 4-valve, sequential fuel injection, V8
- H - 2.3L, Ti-VCT (twin independent variable cam timing), turbo-charged, in-line 4-cylinder
- J - 5.2L, DOHC, Supercharged Cross Plane Crank, V8
- 0 - 5.0L, Ti-VCT (twin independent variable cam timing), DOHC, 4-valve, V8, electronic fuel injection, NA, Gas
- Z - 5.2L, DOHC, Ti-VCT (twin independent variable cam timing), V8
Check Digit
The ninth VIN position is a government-assigned, computer-generated check digit.
- 0 - 9
Model Year
The tenth VIN position is the model year code.
- L - 2020
Assembly Plant
The eleventh digit identified the assembly plant code.
- 5 - Flat Rock Assembly, Flat Rock, Michigan (USA)
Production Sequence Number
The last 6 VIN positions are a numeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. The serial number can also be found on the engine block, transmission and frame.
- 100001 - 599999
