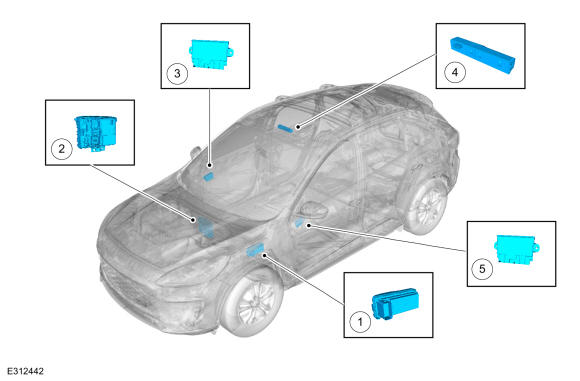

Module Controlled Functions - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
BCMC
2
BCM
3
PDM
4
RTM
5
DDM
Courtesy of FORD MOTOR COMPANY
