Pinpoint Tests Dc: Mass Air Flow (MAF) Sensor: Introduction
WARNING:
To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 300 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.
This pinpoint test is intended to diagnose the following:
Harness Side
| Circuit | Pin |
|---|---|
| VPWR (Vehicle Power) | 3 |
| MAF (Mass Airflow) | 5 |
| SIGRTN (Signal Return) | 4 |
Harness Side
| Circuit | Pin |
|---|---|

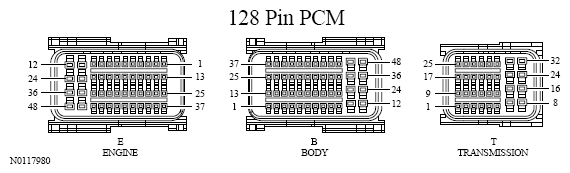

| MAF (Mass Airflow) | E13 |
| SIGRTN (Signal Return) | E1 |
