Connector Repair Procedures

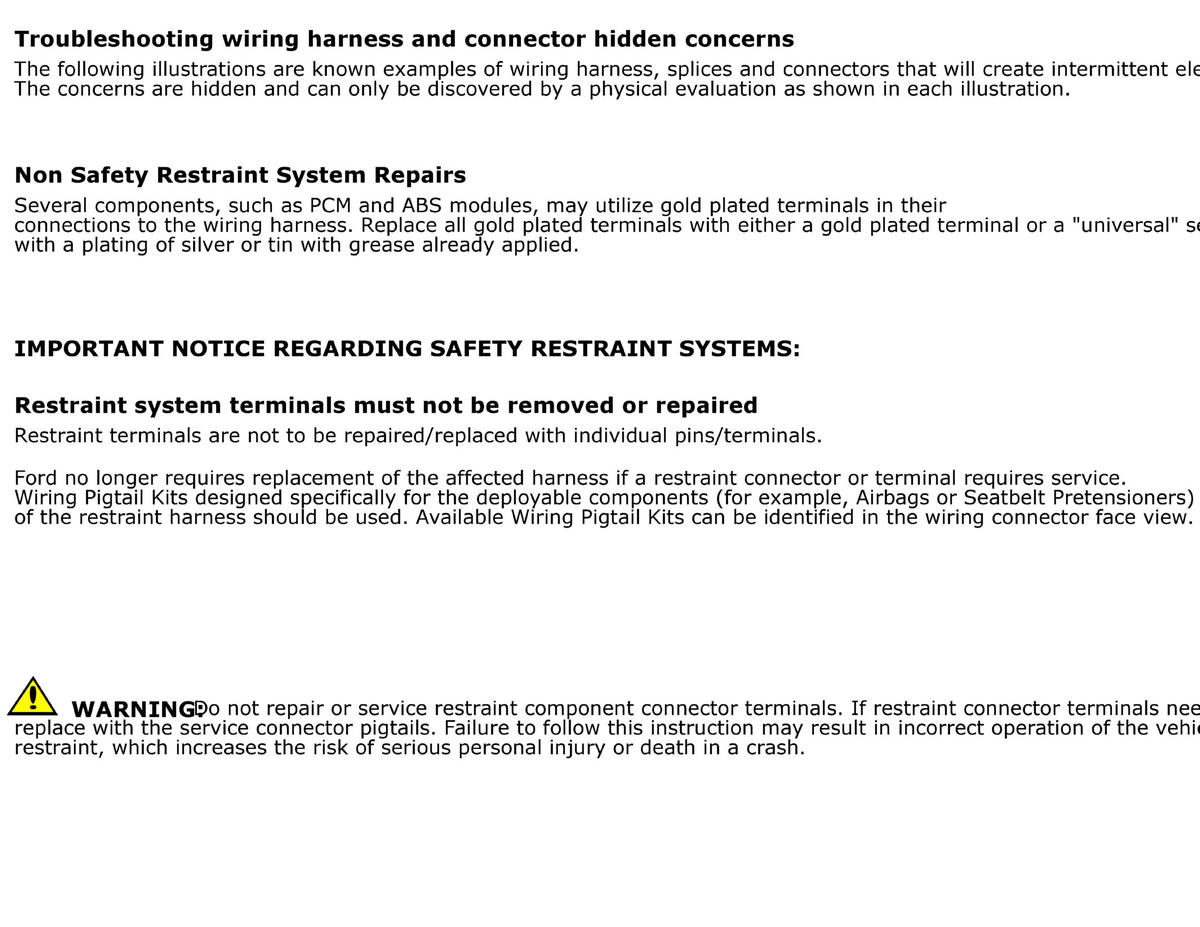

GFDWR91457Courtesy of FORD MOTOR COMPANY

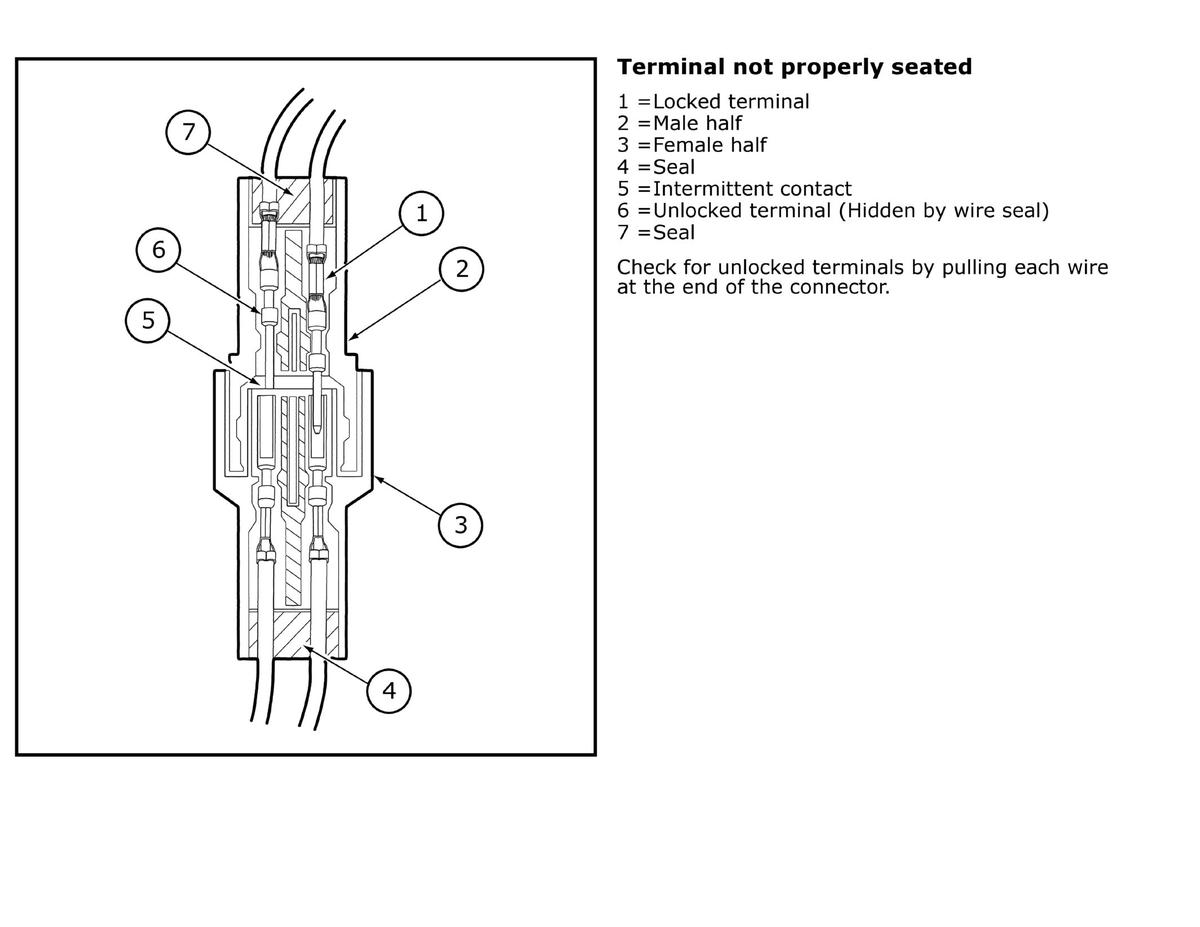

GFDWR91451Courtesy of FORD MOTOR COMPANY

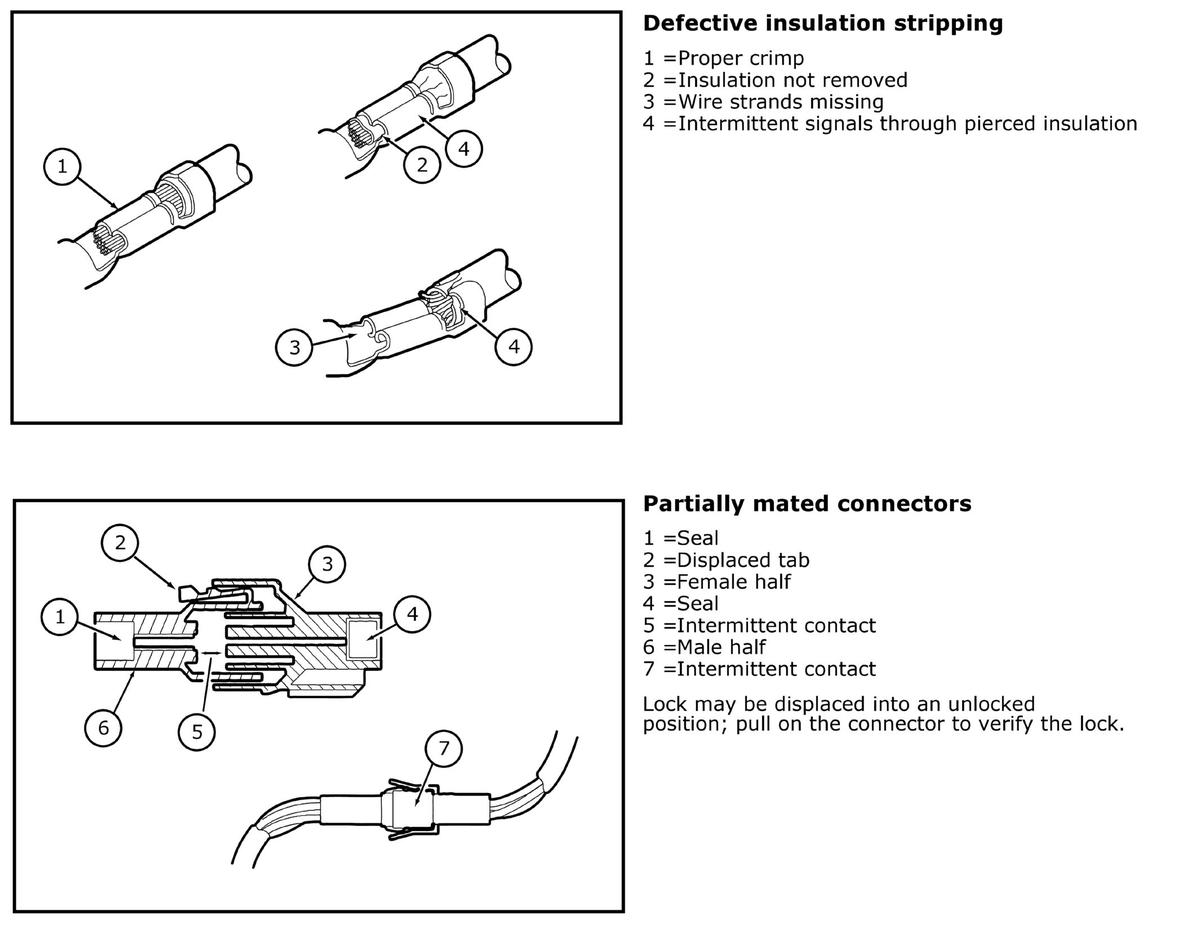

GFDWR91455Courtesy of FORD MOTOR COMPANY

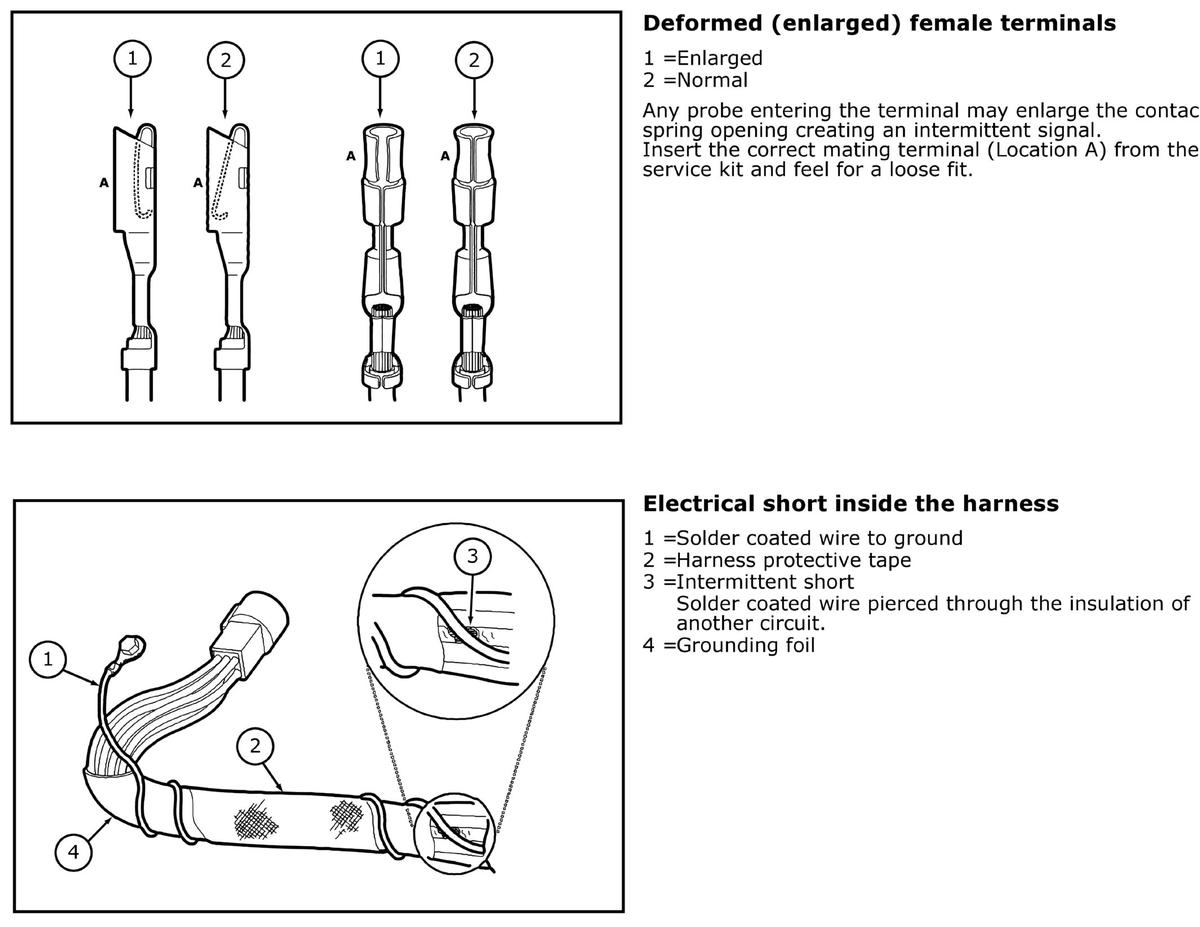

GFDWR91458Courtesy of FORD MOTOR COMPANY

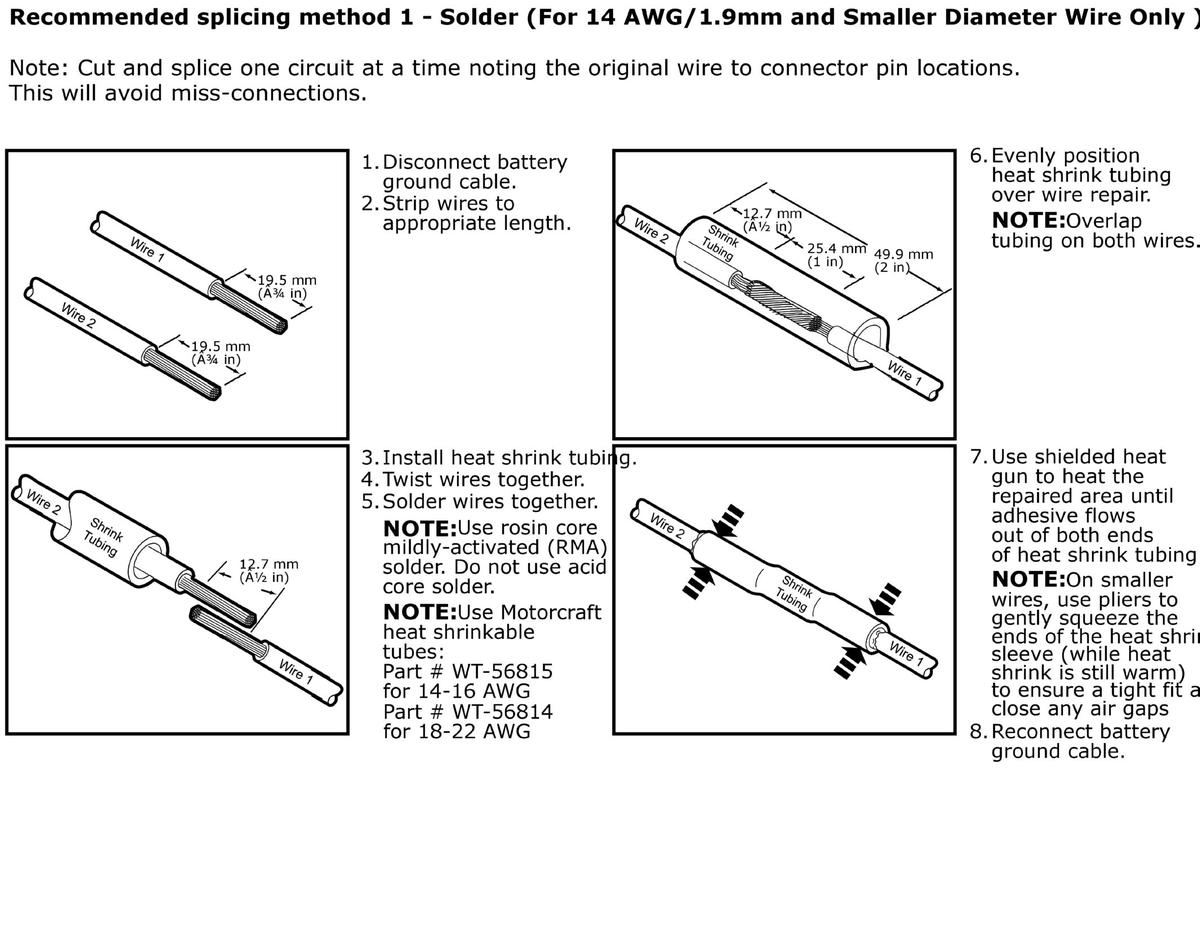

GFDWR91459Courtesy of FORD MOTOR COMPANY

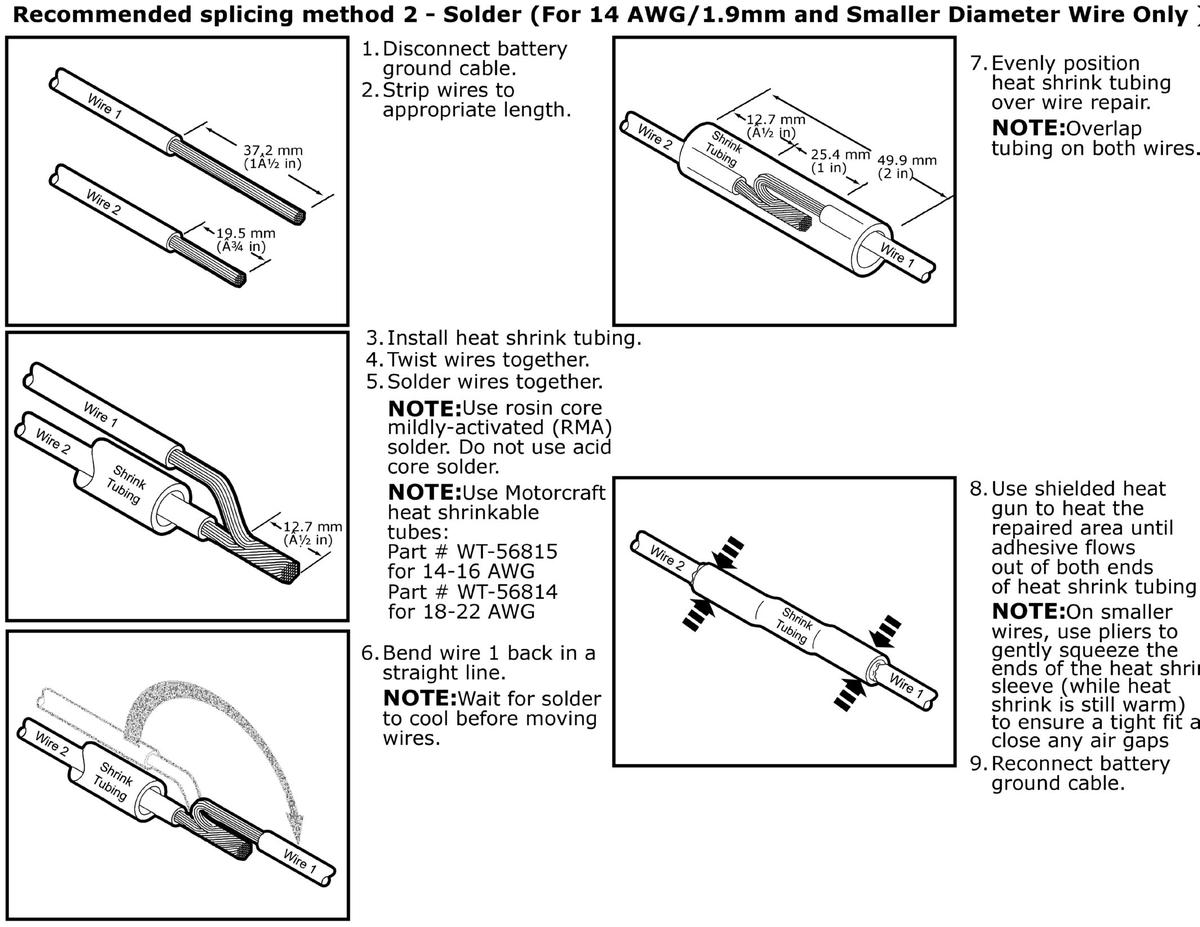

GFDWR91456Courtesy of FORD MOTOR COMPANY

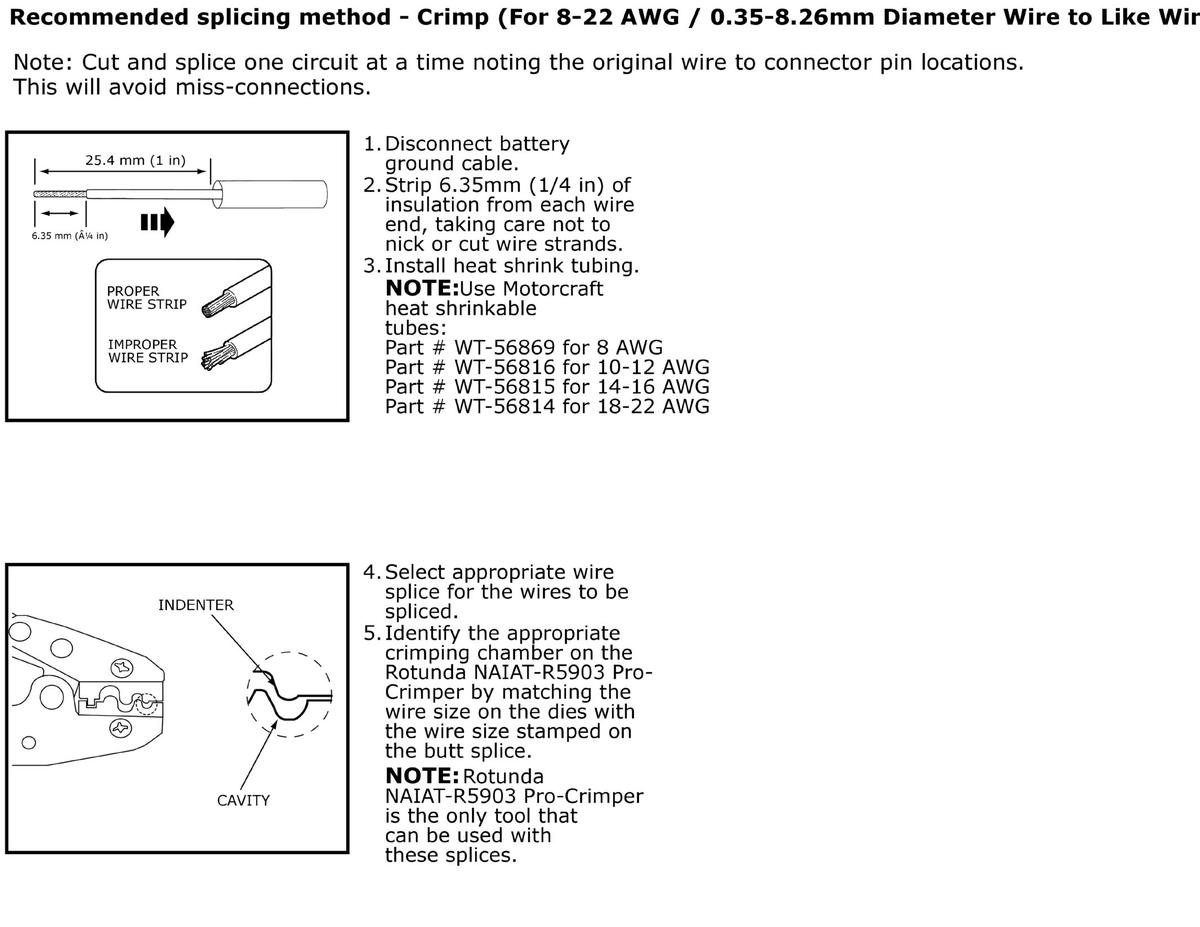

GFDWR91454Courtesy of FORD MOTOR COMPANY

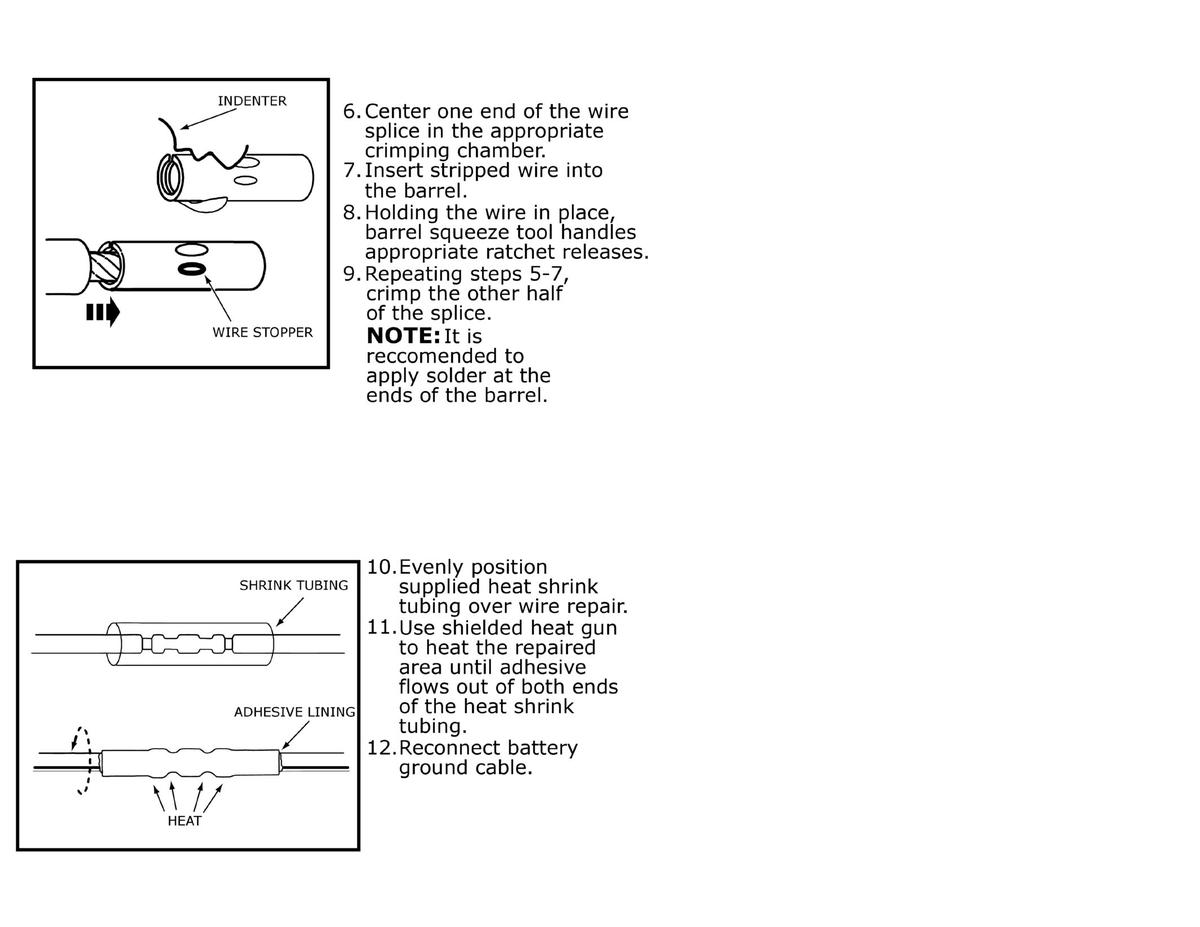

GFDWR91453Courtesy of FORD MOTOR COMPANY

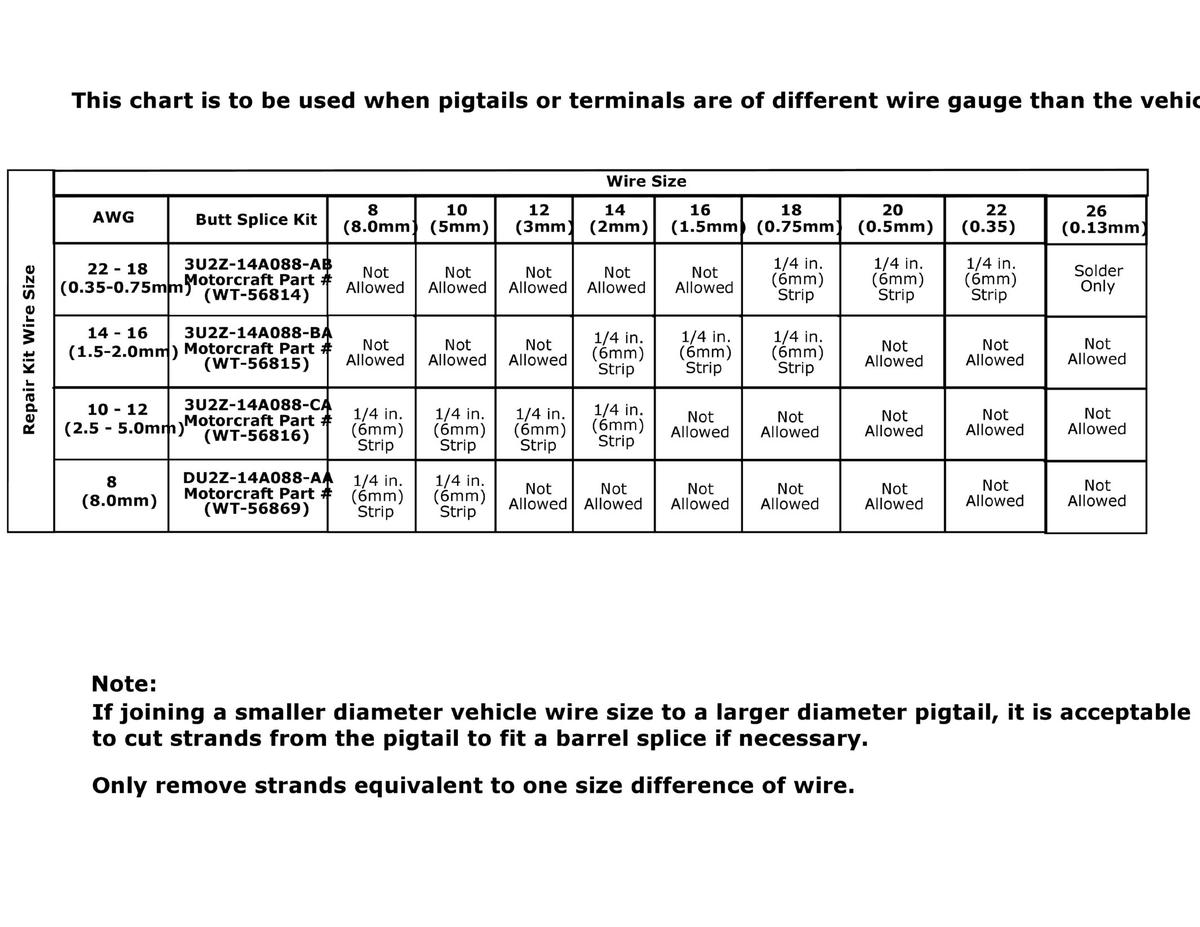

GFDWR91452Courtesy of FORD MOTOR COMPANY
