Transfer Case

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

1. NOTE: Do not over-lubricate the driveshaft components. Using excessive grease may damage the driveshaft components.

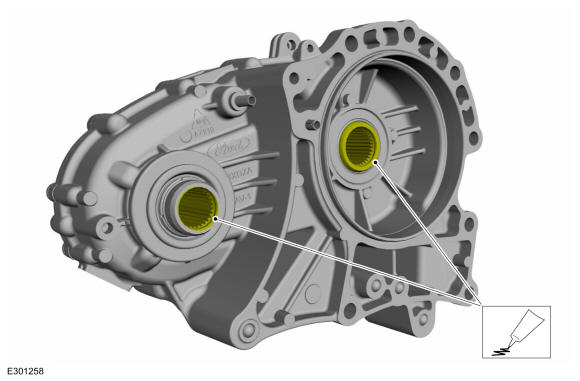

   Lubricate the transfer case inner splines with grease.

   Material: Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

   Courtesy of FORD MOTOR COMPANY

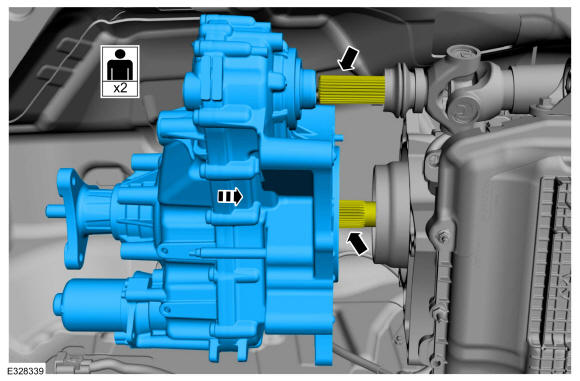

2. Connect the transfer case to the transmission output shaft the driveshaft and position the transfer case onto the transmission.

   Courtesy of FORD MOTOR COMPANY

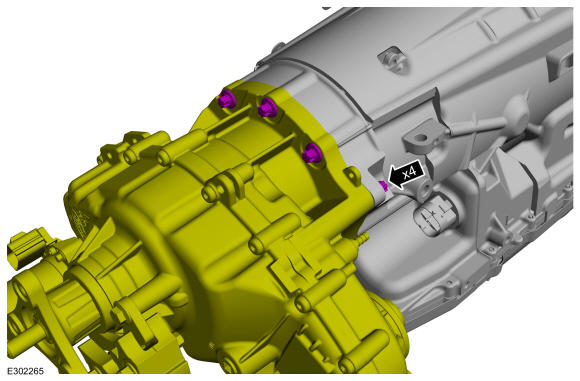

3. Install the new transfer case mounting bolts.

   Torque: 159 lb.in (18 Nm)

   Courtesy of FORD MOTOR COMPANY

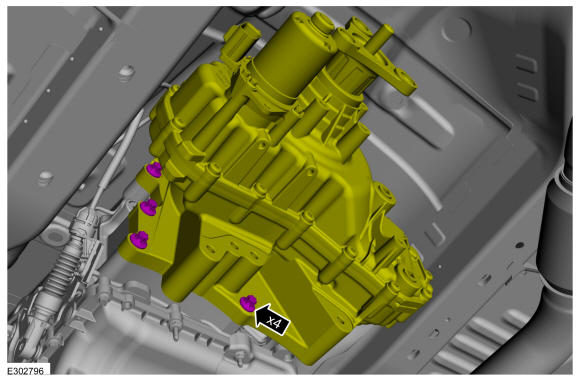

4. Install the new transfer case mounting bolts.

   Torque: 159 lb.in (18 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Connect the transfer case wiring connector.

   Courtesy of FORD MOTOR COMPANY

6. Attach the transfer case vent hose.

   Courtesy of FORD MOTOR COMPANY

7. Install the transmission support crossmember. Refer to: Transmission Support Insulator - 10R60 . Refer to: Transmission Support Insulator - 10R80 . Refer to: Transmission Support Insulator - 10R80 MHT .

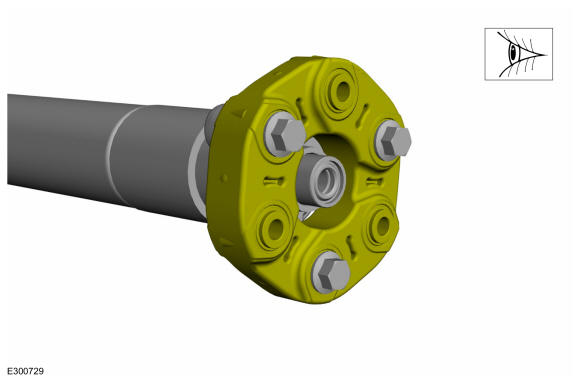

8. NOTE: Cracks forming in the flex coupling are normal.

   Inspect the flex coupling for damage. If internal windings (threads) are visible, replace the flex coupling if required. Refer to: Driveshaft Flexible Coupling .

   Courtesy of FORD MOTOR COMPANY

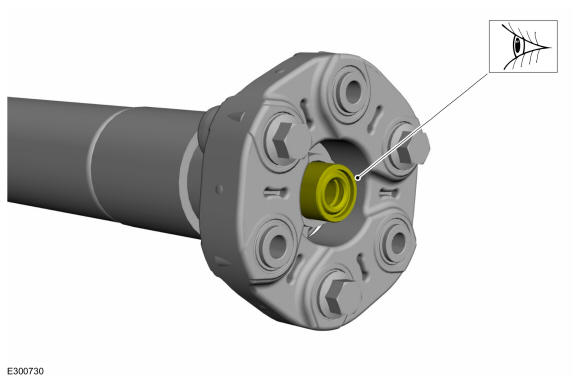

9. Inspect the driveshaft alignment bushing for damage, clean-off any contamination. If required replace the same. Refer to: Driveshaft Alignment Bushing .

   Courtesy of FORD MOTOR COMPANY

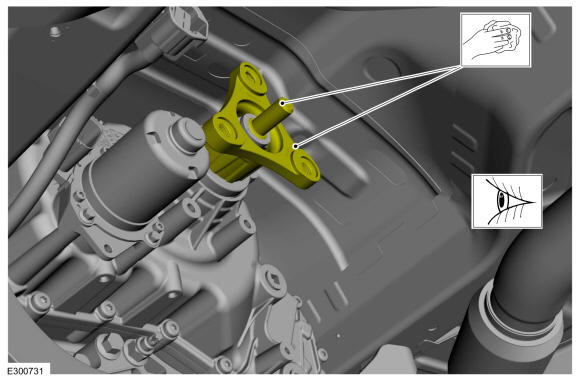

10. NOTE: Make sure the mating surfaces are free of any contamination including removing any blue Loctite from any mating surfaces.

    Clean and inspect the mating surfaces of driveshaft flexible coupling. Clean-off any contamination or excess grease off of transfer case flange and pilot spigot.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Do not over articulate the driveshaft or damage may occur.
    NOTE: Do not force the flex coupling bushing on the transfer case output shaft or damage will occur.

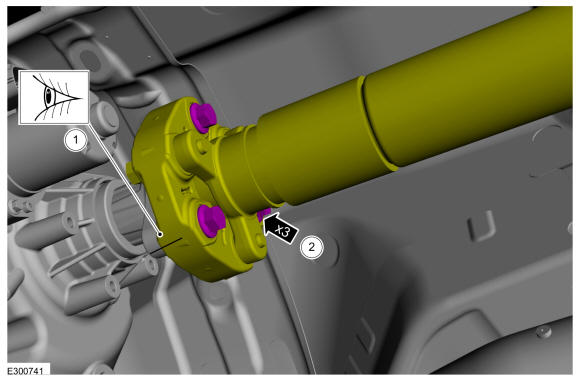

    1. Align the index-mark on driveshaft flexible coupling to the transfer case flange.
    2. Install the new driveshaft flex coupling to transfer case flange bolts.

       Torque: 81 lb.ft (110 Nm)

    Courtesy of FORD MOTOR COMPANY

12. If equipped, install the transfer case heat shield.

    Torque: 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Check the transfer case fluid level. Refer to: Transfer Case Fluid Level Check .
14. NOTE: This step is only necessary when a new transfer case is installed.

    Using the scan tool, carry out the Active Torque Coupling Configuration routine. The transfer case X-digit alpha numeric bar code is located on the label attached to the transfer case.

15. NOTE: This step is only necessary when a new transfer case is installed.

    Perform the transfer case clutch learn procedure. Refer to: Transfer Case Clutch Learn .
